Quartz - Double Glazed 100mm
Quartz – Double Glazed 100mm
Quartz Partitioning Information
A versatile frameless double glazed partitioning system that offers numerous combinations for both glass size and specification, ensuring a wide range of acoustic ratings can be achieved.
The frameless double glazed office partition solution creates a feeling of acoustic privacy without altering the visual of an open office.
A number of deflection head details are available.
Compatible With:
- Manifestations
- Graphics
- Switch Glass
- Blinds
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Double Glazed 100mm Partitioning Specification
Dimensions:
Height up to 4200mm
Track Width 100mm
Track Height 27mm/50mm
Acoustics:
Up to 55dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Dry Joint
Corners:
Dry Joint
(90, 135 & T)
Deflection Head:
+/-12.5mm / +/-25mm
Door Options:
QuartzGlide
Timber Door
Glass Door
Stile Door

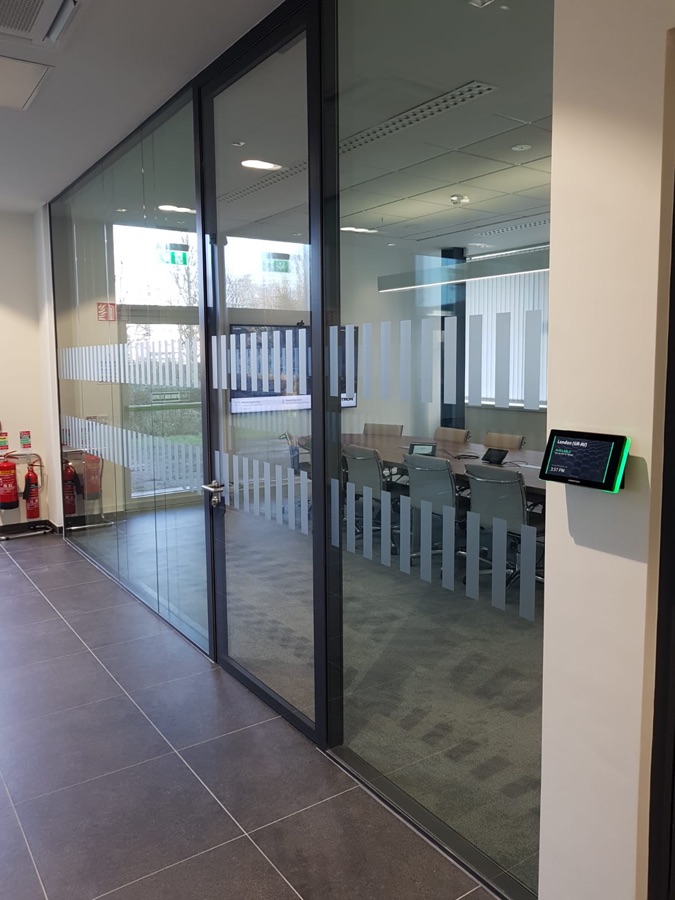

GDS Door
MK2 Door
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Quartz.
Glass Type:
Toughened – Laminated
Glass Thickness:
10mm – 19mm
Options:
Manifestations
Graphics
Switch Glass
Blinds
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

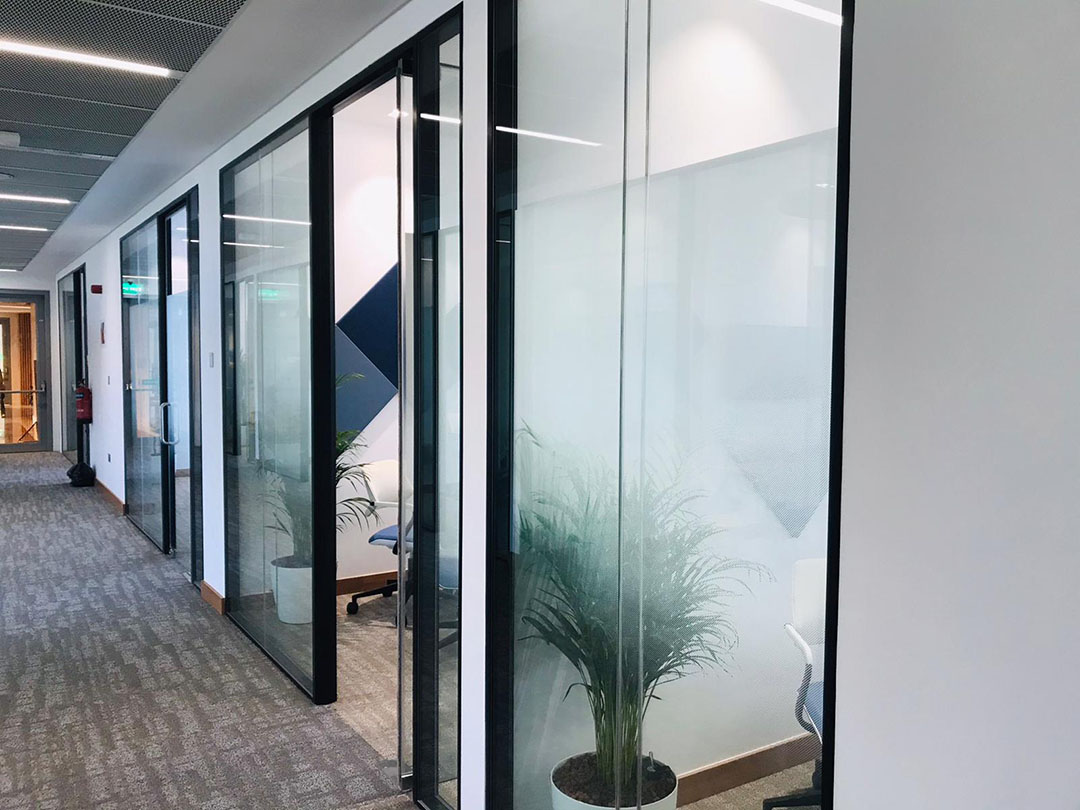

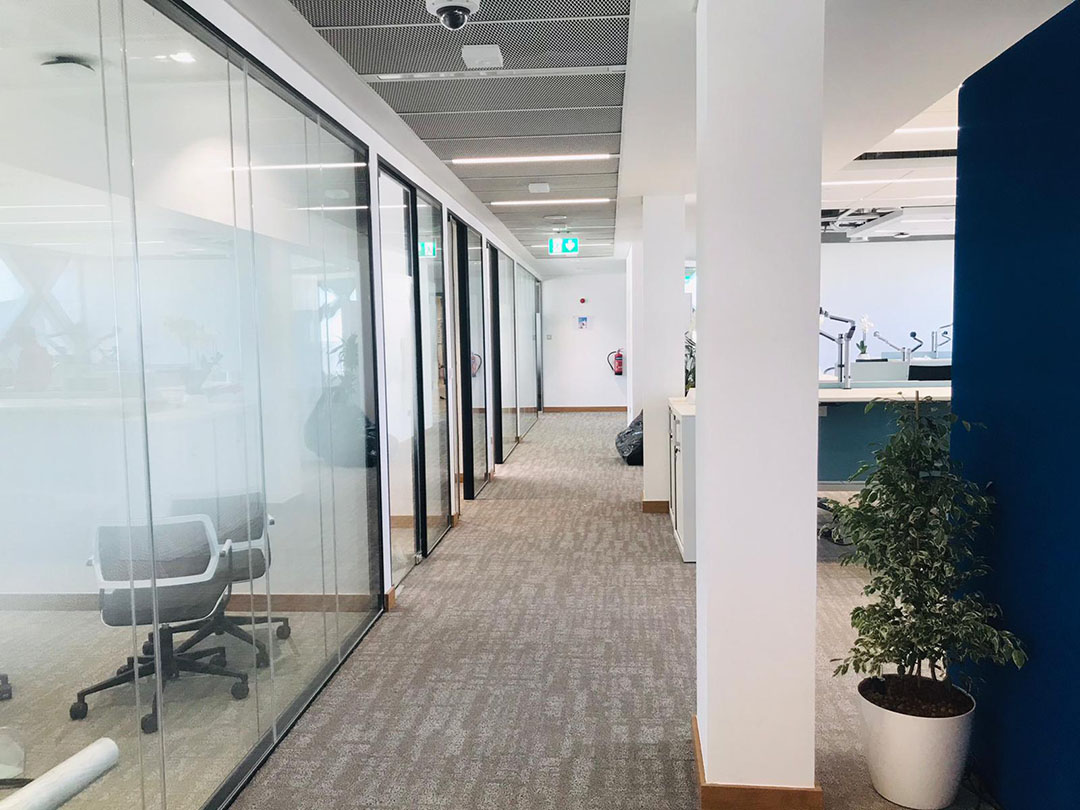

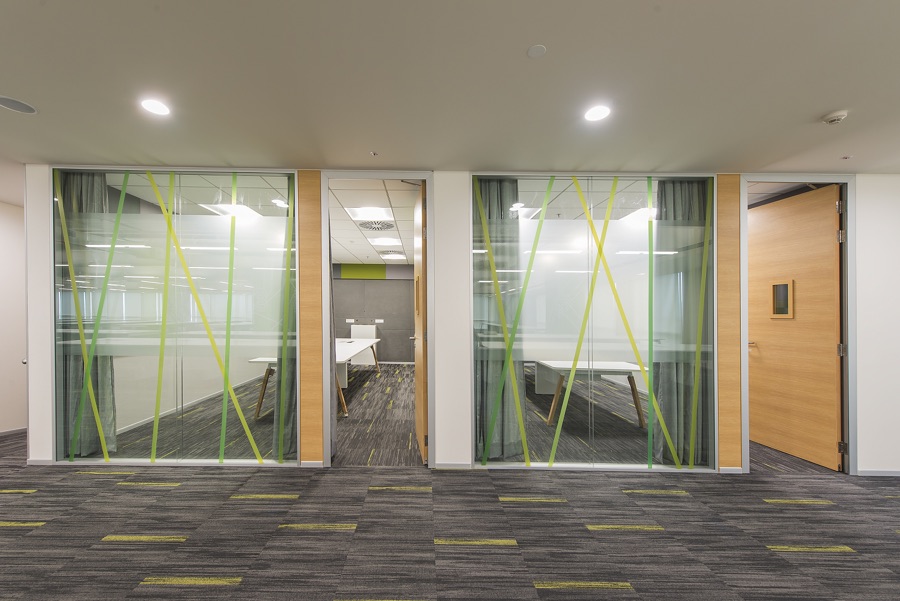

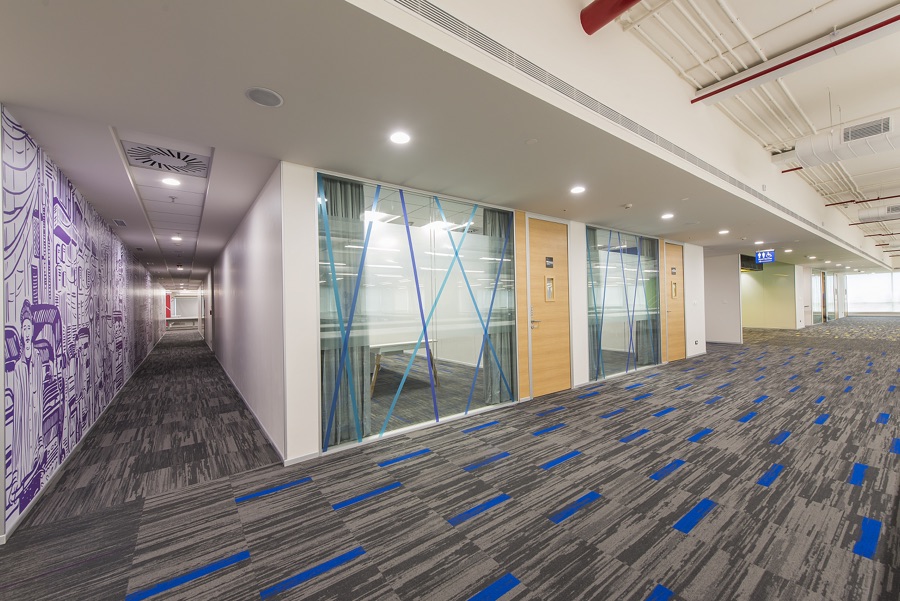

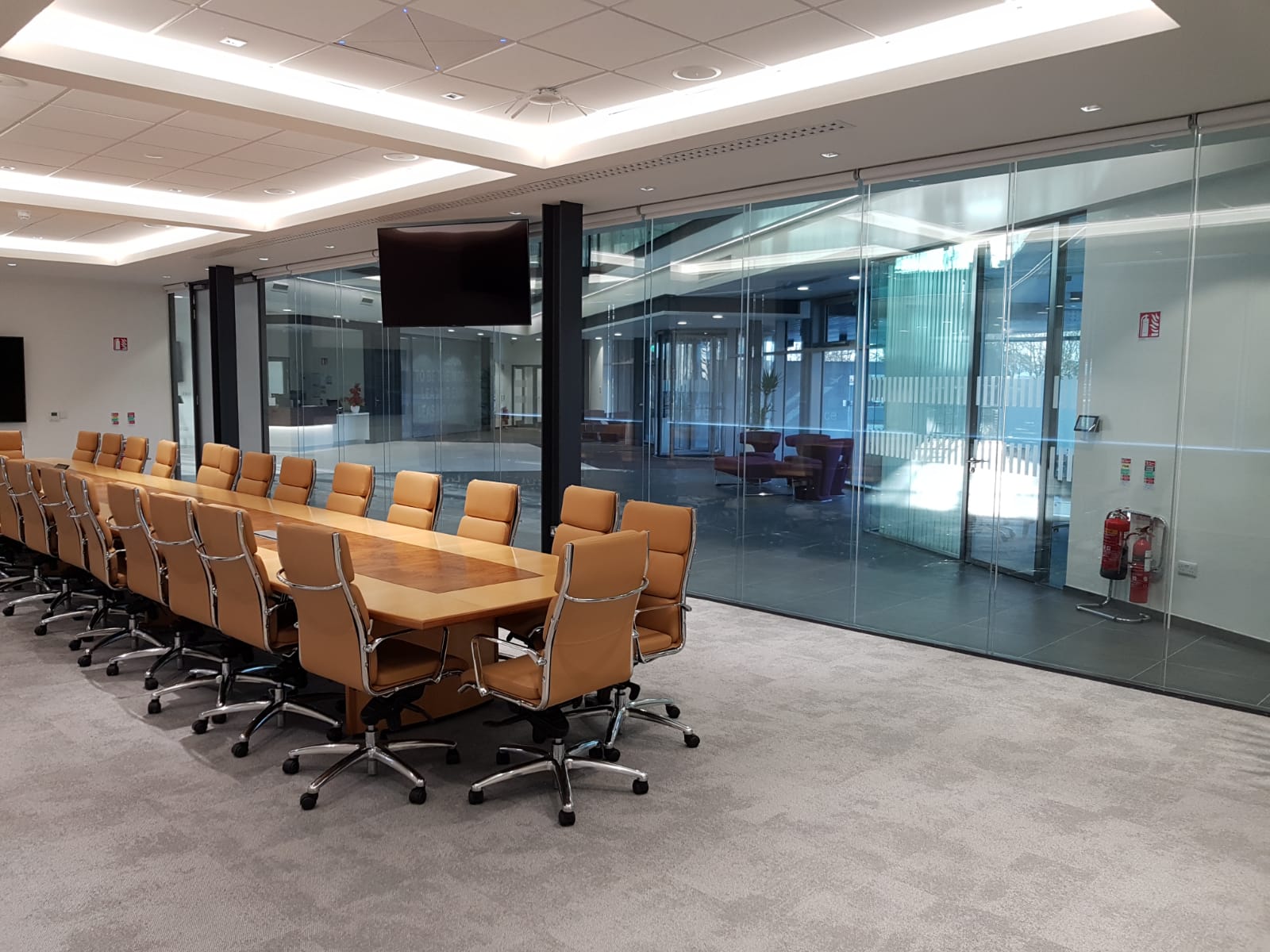

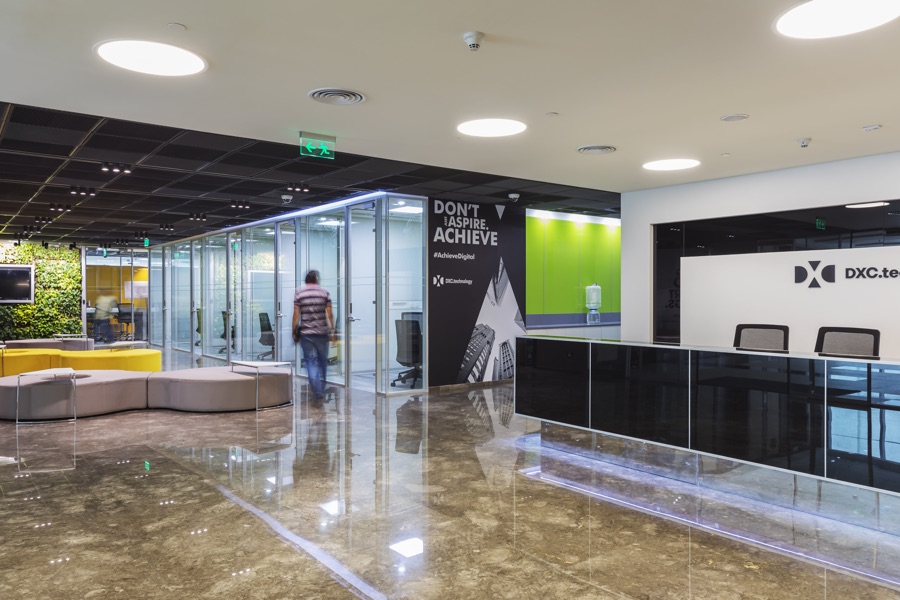

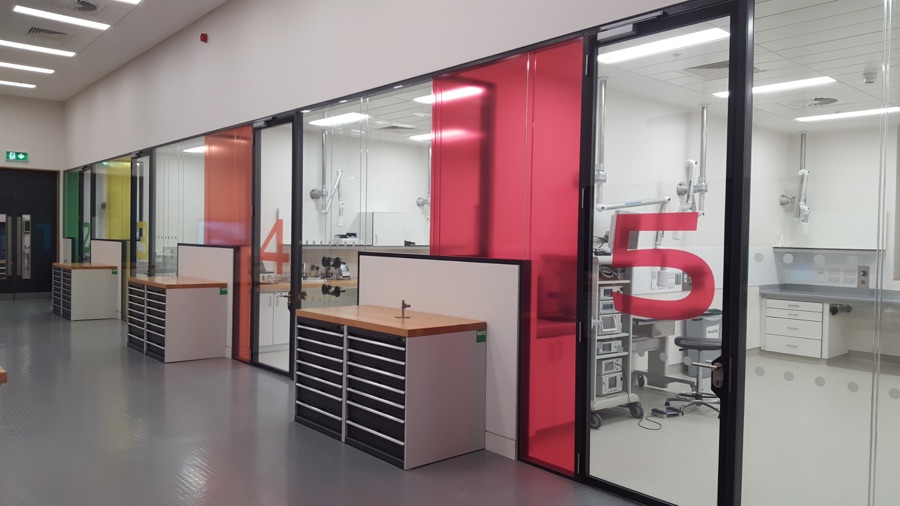

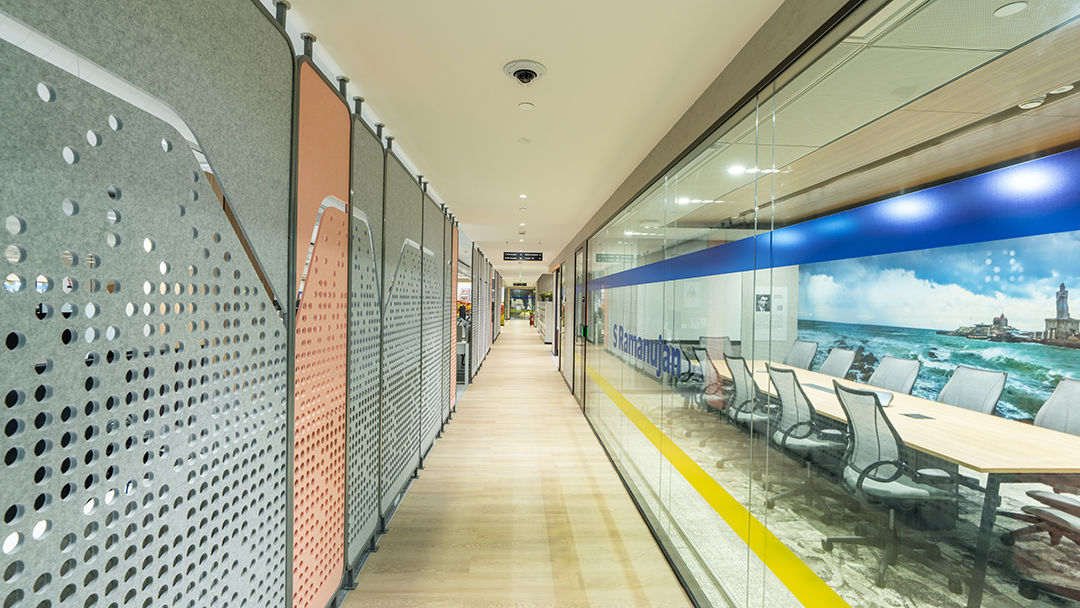

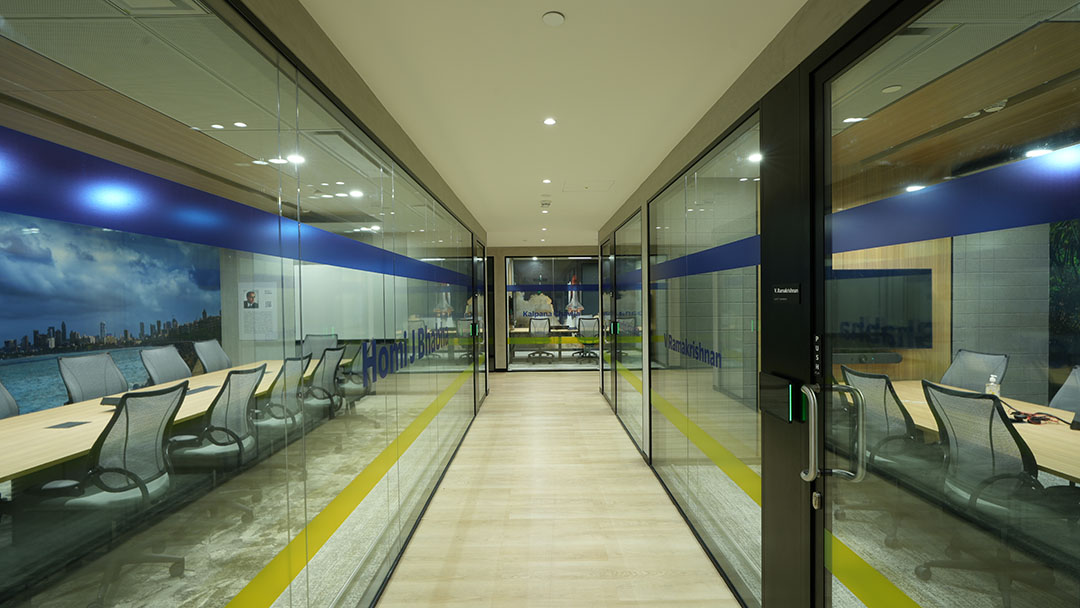

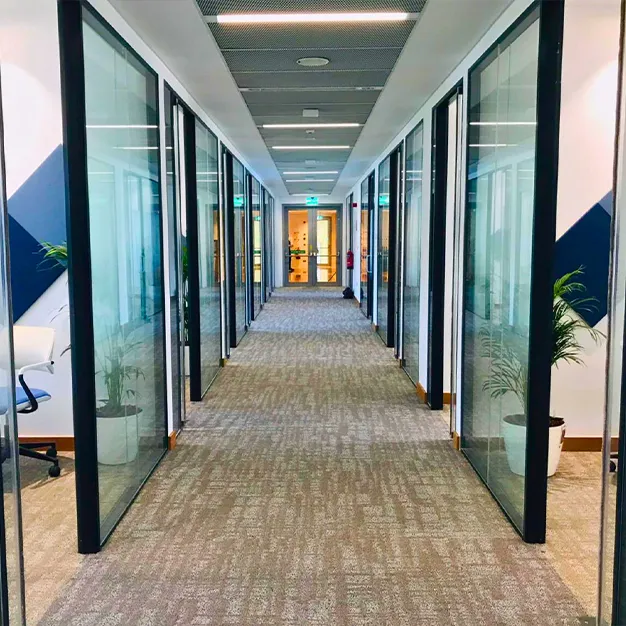

Quartz Double Glazed 100mm Gallery
