Quartz - Double Glazed Fire Rated FR30/30
Quartz – Double Glazed FR30/30
Quartz Partitioning Information
Our Quartz fire rated partitioning system can be supplied as double glazed, achieving up to FR30/30, while utilising Pyrobel 16 fire glass.
Both glass & timber doors can be integrated into either of the partitioning systems and provide a fire resistant of FR30/0.
Our double glazed fire rated glass partitions are tested to BS 476 pt22, in approved UKAS (United Kingdom Accreditation Services) test houses, 3rd party accreditation and field of application are obtained through international fire consultants.
Fire Resistance Specification Class EI (Integrity and Insulation) for Glass Panels and Class E (Integrity only) for Doors.
The system should be agreed by the relevant approving authorities as a part of the fire strategy for each project. FoA available upon request.
Compatible With:
- Manifestations
- Blinds
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Double Glazed FR30/30 Partitioning Specification
Dimensions:
Height up to 3000mm
Track Width 100mm
Head Track Height 50mm
Floor Track Height 27mm
Fire Ratings:
Glass FR30/30
Track FR30/0
Door FR30/0
Acoustics:
Up to 51dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
4mm Ceramic Tape M152
Tape both edges of the
glass / Dry Joint
Corners:
Clad Post 102mm x 102mm
Deflection Head:
+/-12.5mm
Door Options:
Timber Door
10mm Pyran S Glass Door
Profiles & Door Frame:
Aluminium
Ironmongery:
Supplied by Apton as per F.O.A
Glass Type:
Pyrobel 16 / Toughened / Laminated
Glass Thickness:
16.8mm / 10mm – 19mm
Options:
Blinds
Manifestations
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

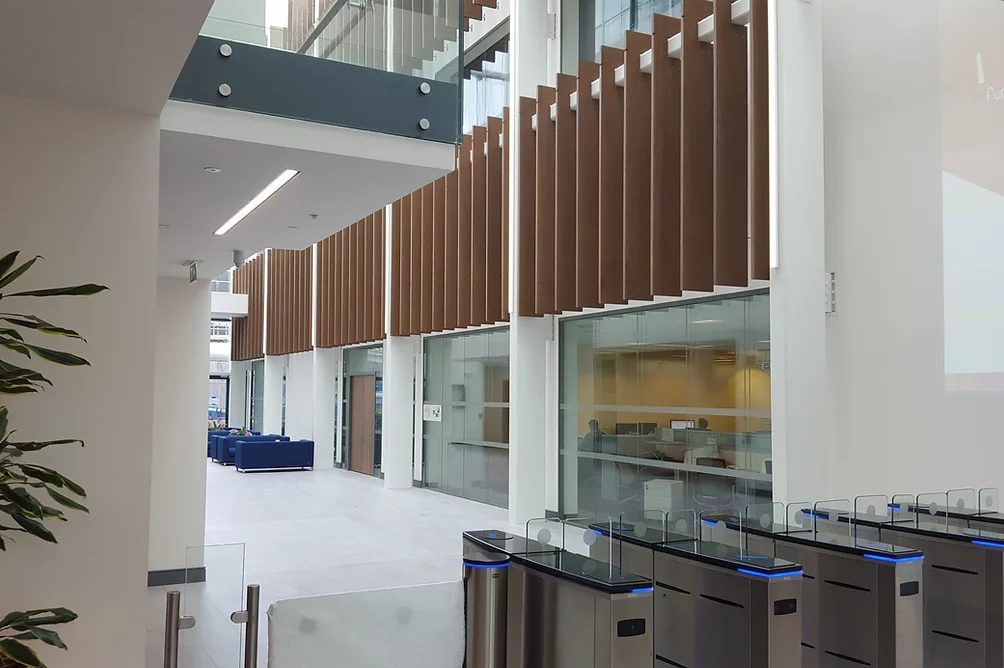

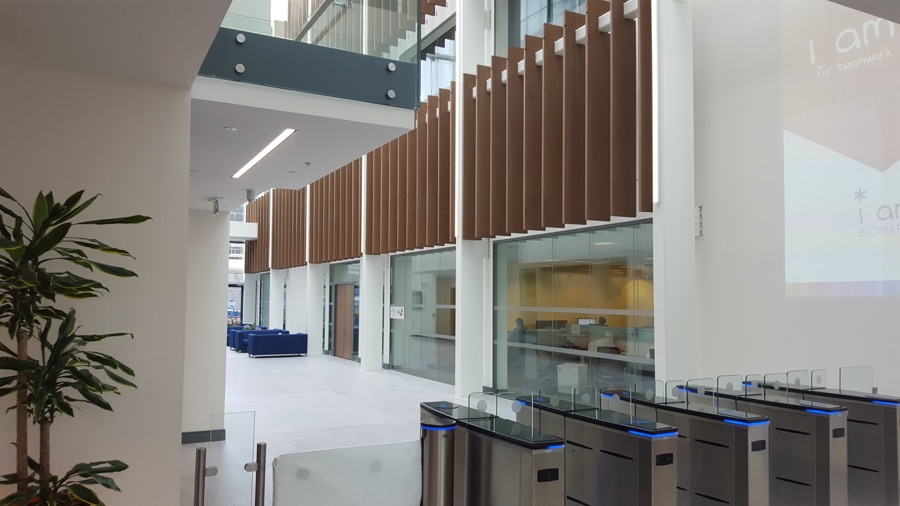

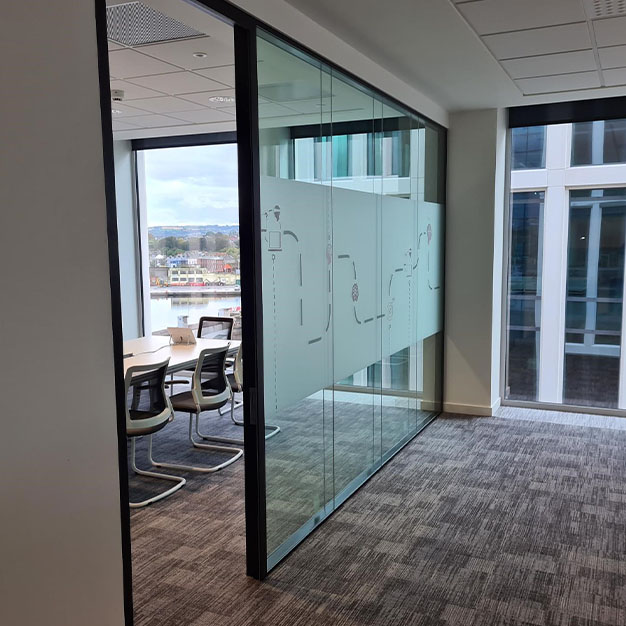

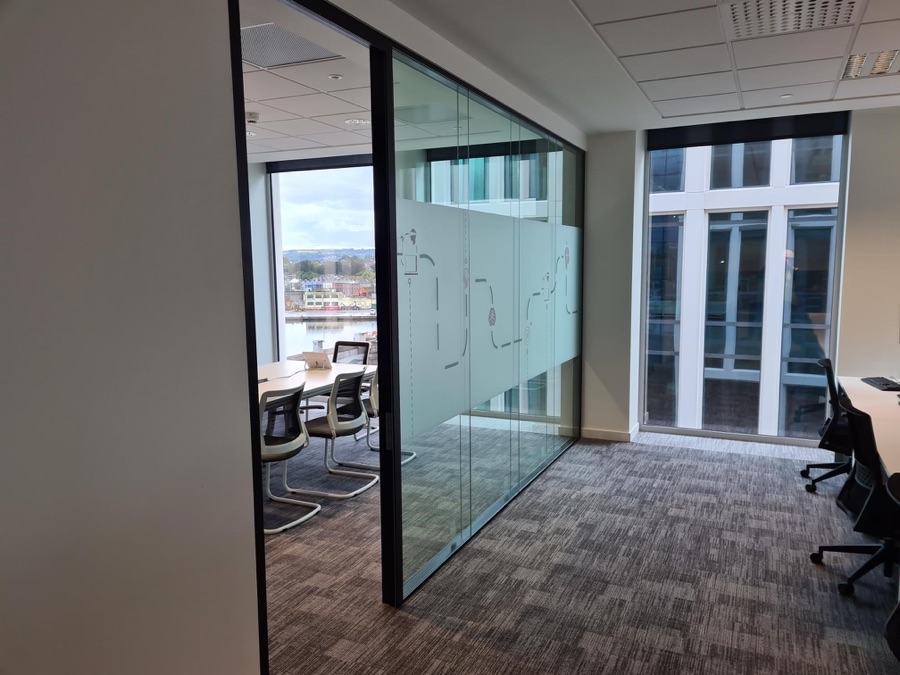

Quartz FR30 Double Gallery
