QUANTUM
STEEL FRAMED SYSTEM
Quantum – STEEL FRAMED SYSTEM
Quantum Partitioning Information
Quantum is our 115mm all-steel framed partition system that delivers high performance and a seamless style.
With large glazed panels spanning 2 meters, Quantum stands out with its impressive versatility, reaching heights of up to 7 meters.
This allows for innovative and dynamic space planning, catering to the evolving needs of modern workplaces. The partition system’s adaptability and scalability make it a versatile solution for businesses seeking flexibility in their interior design.
Compatible with:
- Blinds
- Manifestations
- Graphics
- SwitchGlass
Paint Finishes:
- Powder Coat
Quantum Framed Glass Partition Specification
Dimensions:
Height up to 7000mm
Track Width 115mm
Track Height 20mm/50mm
Acoustics:
Up to 55dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Top Hat Trims
Corners:
Steel Cladded Post
Deflection Head:
+/-12.5mm
Door Options:
Timber Door
Glass Door
Stile Door
GDS Door
MK2
Profiles & Door Frame:
Steel Profile & Timber Door Frame
Ironmongery:
A wide range of ironmongery can
be supplied with Quantum.
Glass Type:
Toughened – Laminated
Glass Thickness:
6-25mm
Board Thickness:
12-15mm
Options:
Blinds
Manifestations
Graphics
Switch Glass
Finishes:
Powder Coat
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

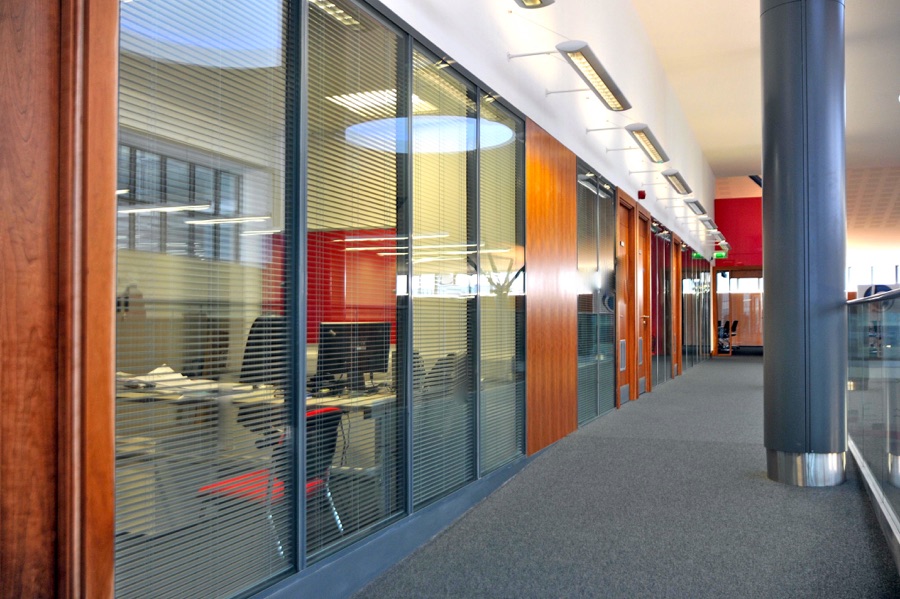

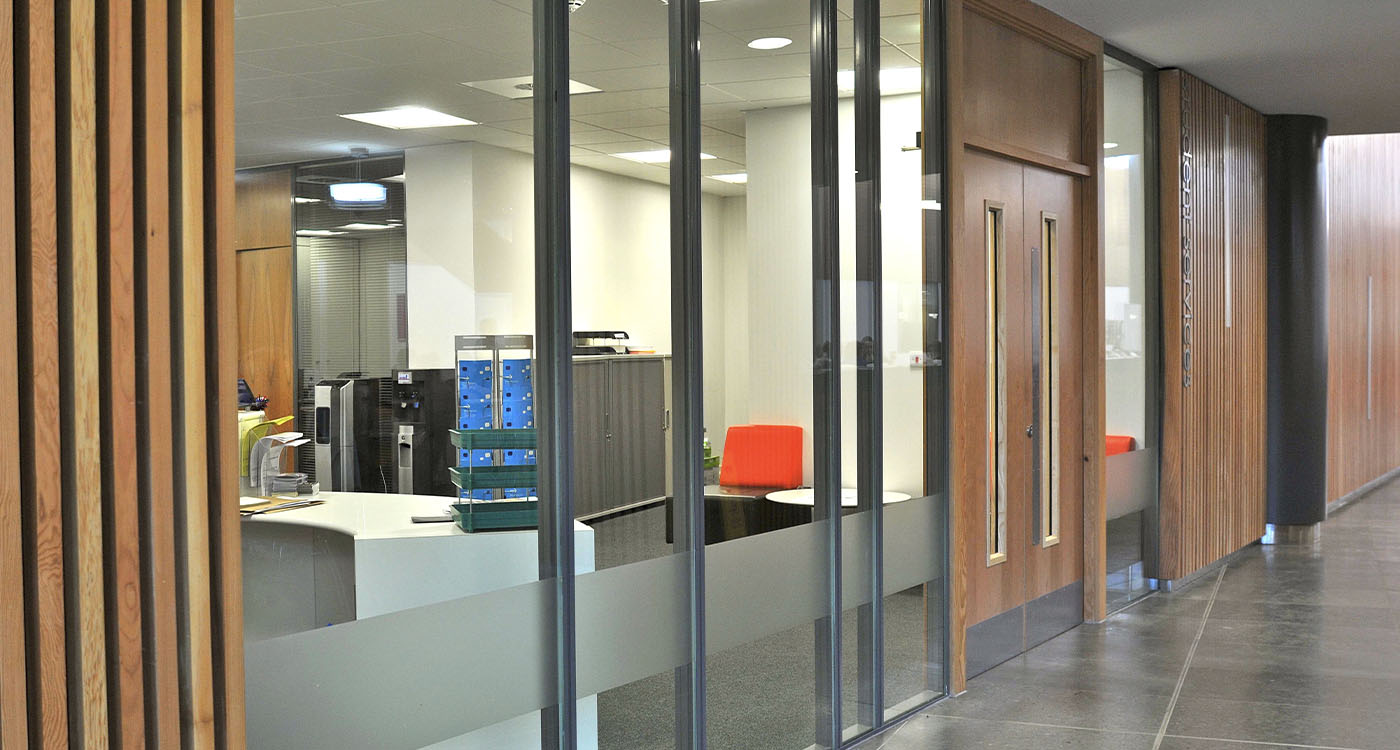

Quantum Gallery
