Quantum - Steel Framed Fire Rated Partitioning
Quantum – Steel Framed Fire Rated Partitioning
Quantum Partitioning Information
Quantum is a high performance demountable fire rated glass partitioning solution.
This fire rated partitioning system has a fire resistance rating performance of FR60/0 that can be achieved using 16mm Pyrobel Glass.
The system should be agreed by the relevant approving authorities as a part of the fire strategy for each project. FoA available upon request.
Paint Finishes:
- Manifestations
- Blinds
- Graphics
- Switch Glass
Paint Finishes:
- Powder Coat
Quantum – Steel Framed Fire Rated Partitioning Specification
Dimensions:
Height up to 3000mm
Track Base 30mm
Track Head 50mm
Mullion Post 40mm
Fire Ratings:
Glass FR60/0
Track FR60/0
Acoustics:
Up to 55dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Top Hat Trims
Corners:
Steel Clad Post
Deflection Head:
+/-12.5mm
Profiles:
Steel Profile
Glass Type:
Pyrobel Glass
Glass Thickness:
16mm
Options:
Blinds
Manifestations
Graphics
Switch Glass
Finishes:
Powder Coat
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

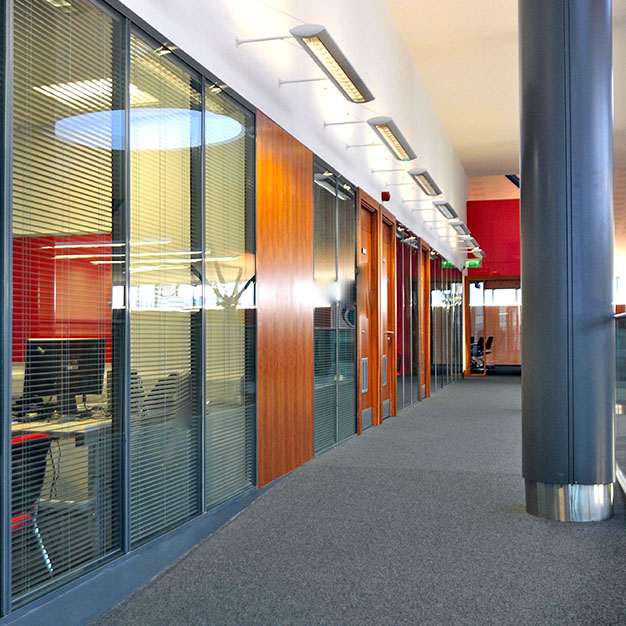

Quantum Fire Rated Gallery
