Apex – Bi Block Partitioning System
Apex Partitioning Information
The Apex Bi Block Partitioning System offers fine panel joint details, slim glass window frames and vertical and horizontal panels all without visible fixings to ensure smooth flush elegance.
The unique Apton partitions ‘locked mullion’ system also helps to eliminates panel creep and maintains the alignment of panels.
Compatible with:
- Blinds
- Manifestations
- Graphics
- SwitchGlass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Apex – Bi Block Partitioning System Specification
Dimensions:
Height up to 3000mm
Track Width 90mm/100mm
Track Height 14mm/50mm
Acoustics:
Up to 47dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Pencil Line / 3mm Recessed
Corners:
Aluminium Corner
Dry Joint
Deflection Head:
+/-12.5mm
Door Options:
Timber Door
Glass Door
Stile Door
GDS Door
MK2
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Apex.
Glass Type:
Toughened – Laminated
Board Thickness:
12mm/15mm/18mm
Glass Thickness:
6-12.8mm
Options:
Blinds
Manifestations
Graphics
Switch Glass
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

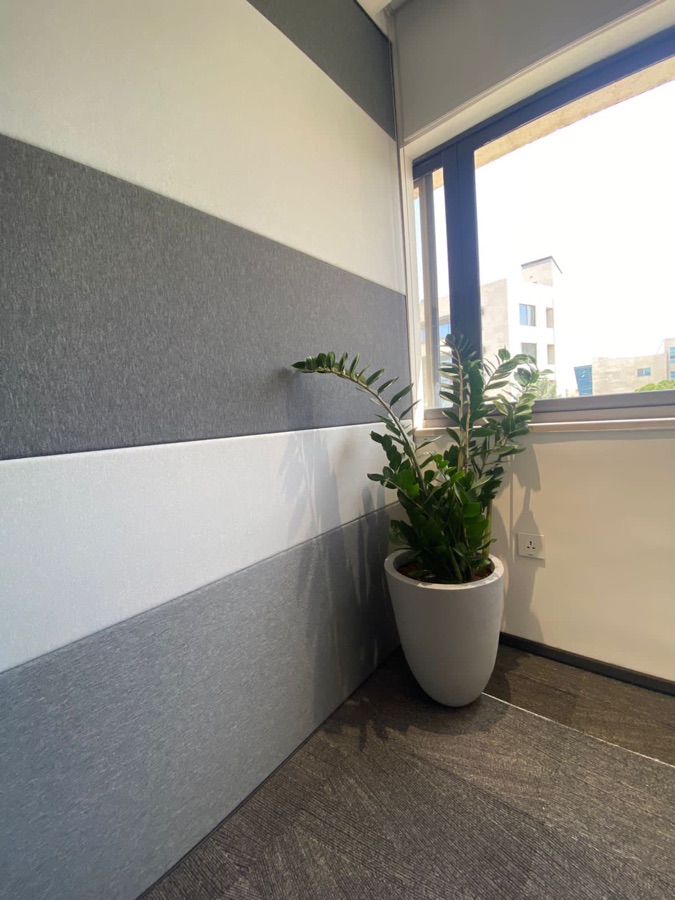

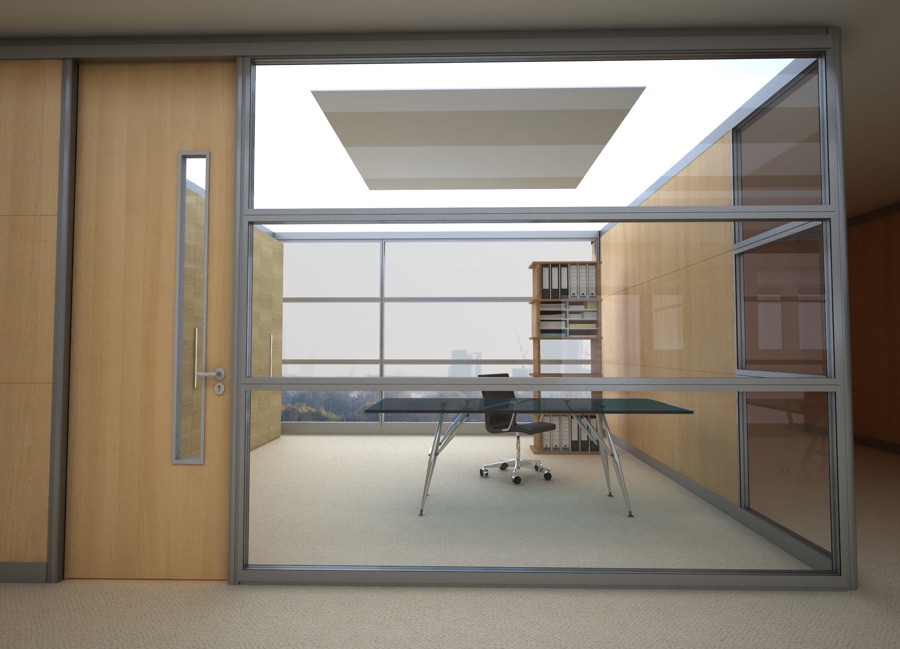

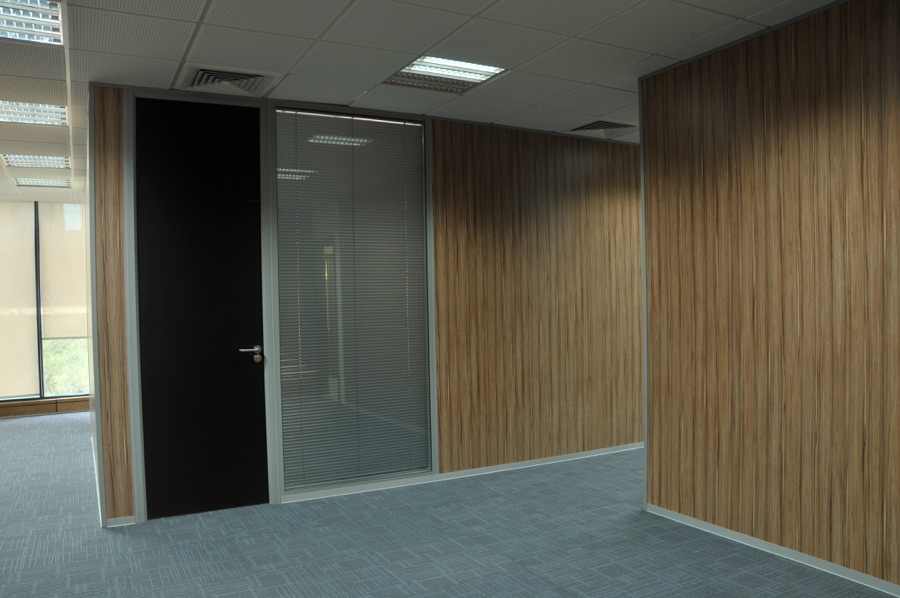

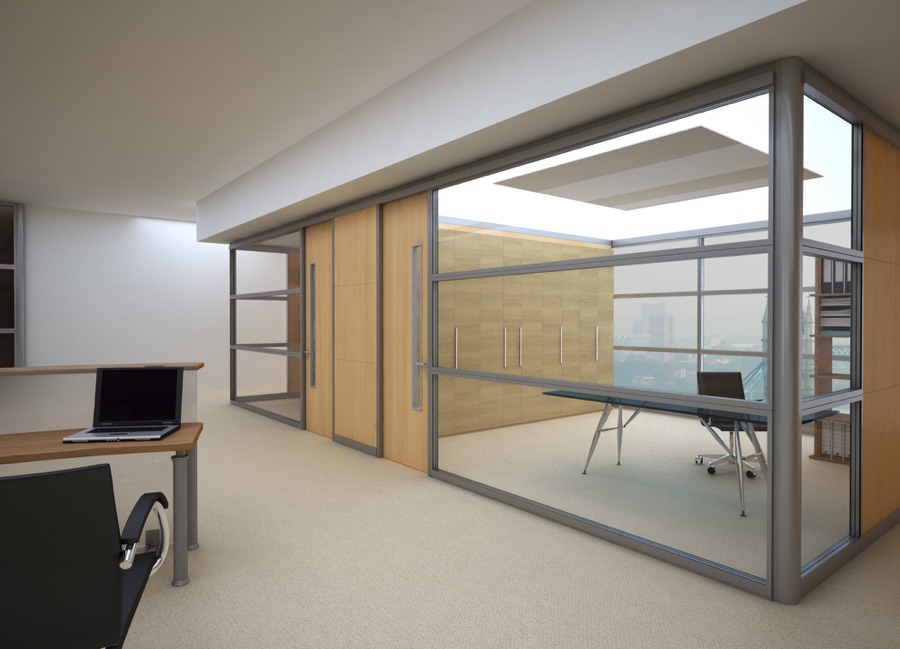

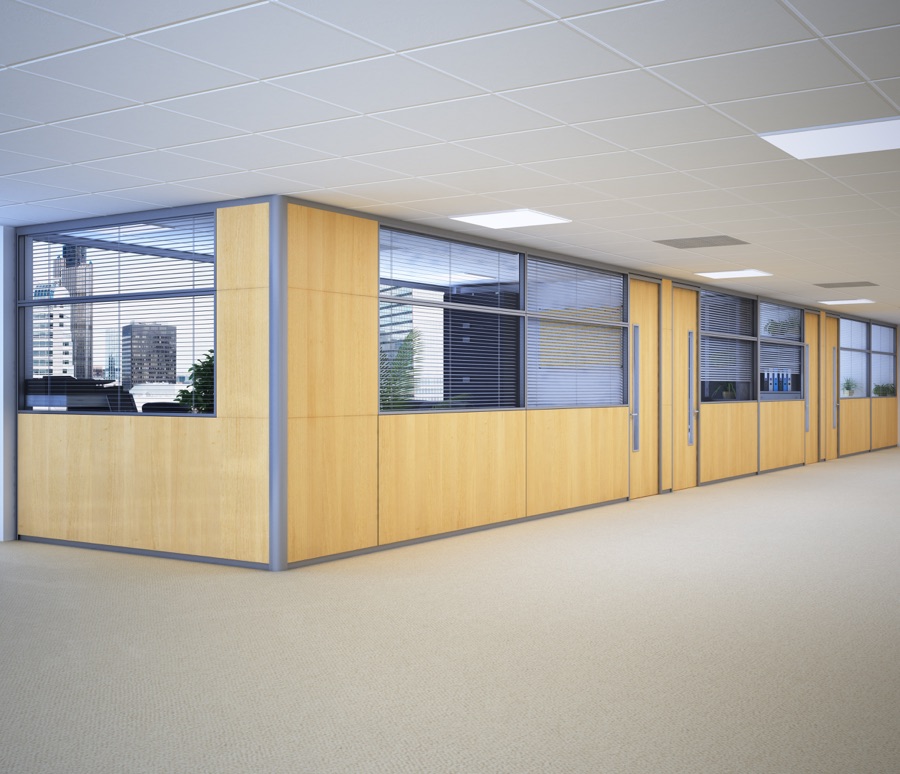

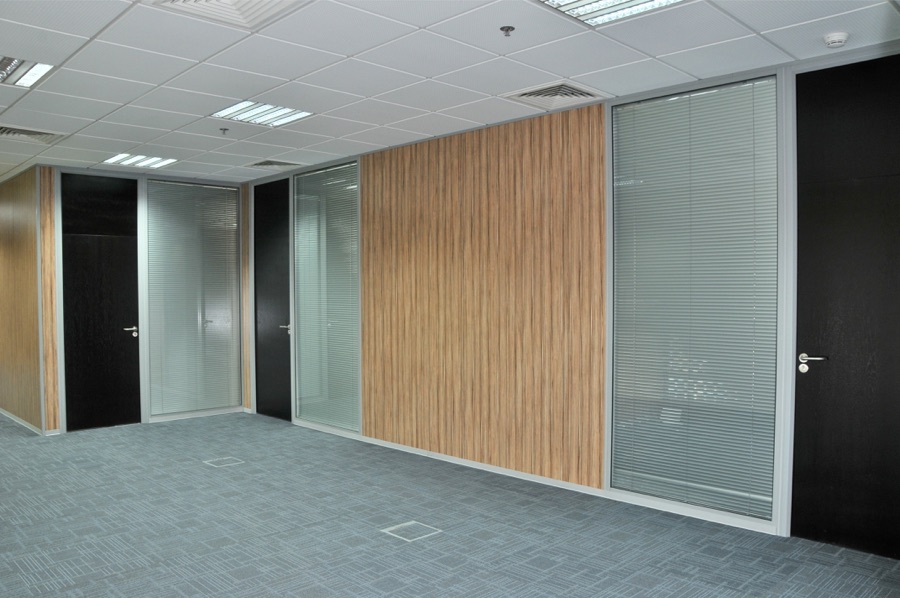

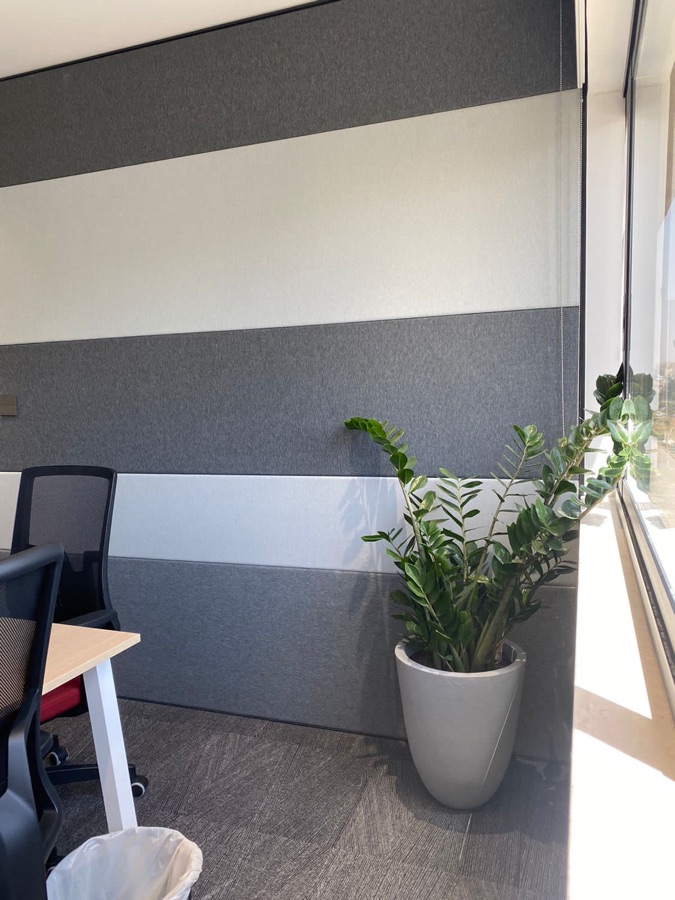

Apex Gallery
