Apex – Fire Rated Bi-Block Partitioning
Apex Partitioning Information
The Apex Bi-block fire rated glass partitioning solutions, combines a range of innovative options and aesthetic appearance with ease of alteration.
Apex bi-block achieves fire resistance to FR30/0 using Pyrobelite 10mm fire resistant glass to one side of the partition and a choice of toughened glass from 6mm to 10mm to the other side depending on the acoustic requirement. This system also achieves a Fire Rating of FR60/60 when supplied with solid panels.
European fire resistant specification Class “E”, (Integrity).
The system should be agreed by the relevant approving authorities as a part of the fire strategy for each project. FoA available upon request.
Compatible With:
- Manifestations
- Blinds
- Graphics
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Apex – Fire Rated Bi-Block Partitioning Specification
Dimensions:
Height up to 2700mm
Track Width 90mm / 100mm
Track Height 20mm/30mm
Fire Ratings:
Glass with Timber Door FR30/0
Solid with Timber Door FR30/0
Solid FR60/60
Acoustics:
Up to 47dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Stud
Corners:
Aluminium Corner
Dry Joint
Deflection Head:
+/-12.5mm
Door Options:
Timber Door
Profiles & Door Frame:
Track Galvanised Steel
Door Frame Aluminium
Ironmongery:
Standard ironmongery as per FOA
Glass Type:
Toughened and Pyrobelite
Glass Thickness:
6mm Toughened
10mm Pyrobelite
Board Thickness:
15mm
Options:
Blinds
Manifestations
Graphics
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

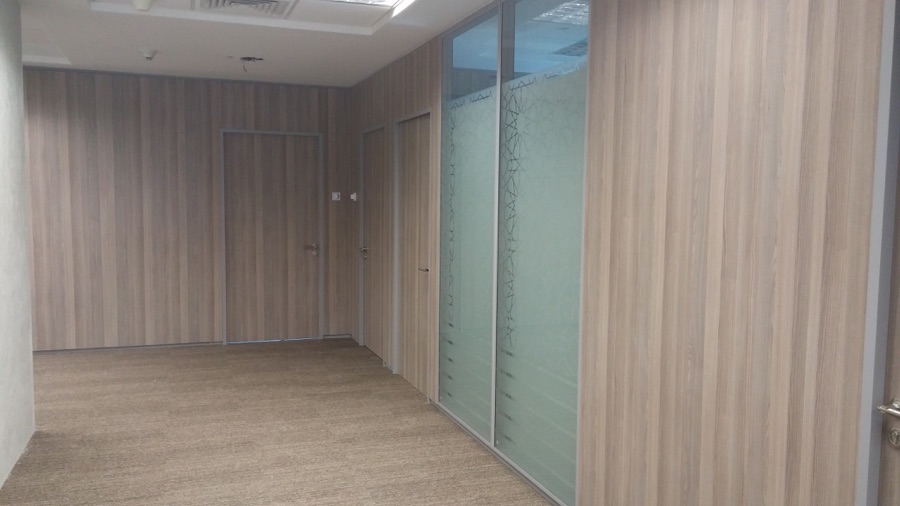

Apex Fire Rated Gallery
