Duplex
Coupled Demountable Wall
Duplex
Duplex Information
The Duplex is a series of interlocking panels that glide effortlessly along a track. With the added advantage of quick room size adjustment in minutes, it effectively minimises outside sound interference, ensuring a versatile and acoustically controlled environment.
Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Duplex Coupled Demountable Wall Specification
Dimensions:
Panel Height up to 3000mm
Panel Width up to 850mm
Weight KG40/M2
Fire Ratings:
N/A
Acoustics:
Up to 50dB (Rw)
Panel Construction:
Internal steel frame with satin
anodised aluminium edge profiles.
Tolerance Height:
+/- 4mm
Tolerance Width:
+/- 10mm
Pass Door Options:
Upon Request
Operation:
Manual
Board Thickness:
16mm – 18mm
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

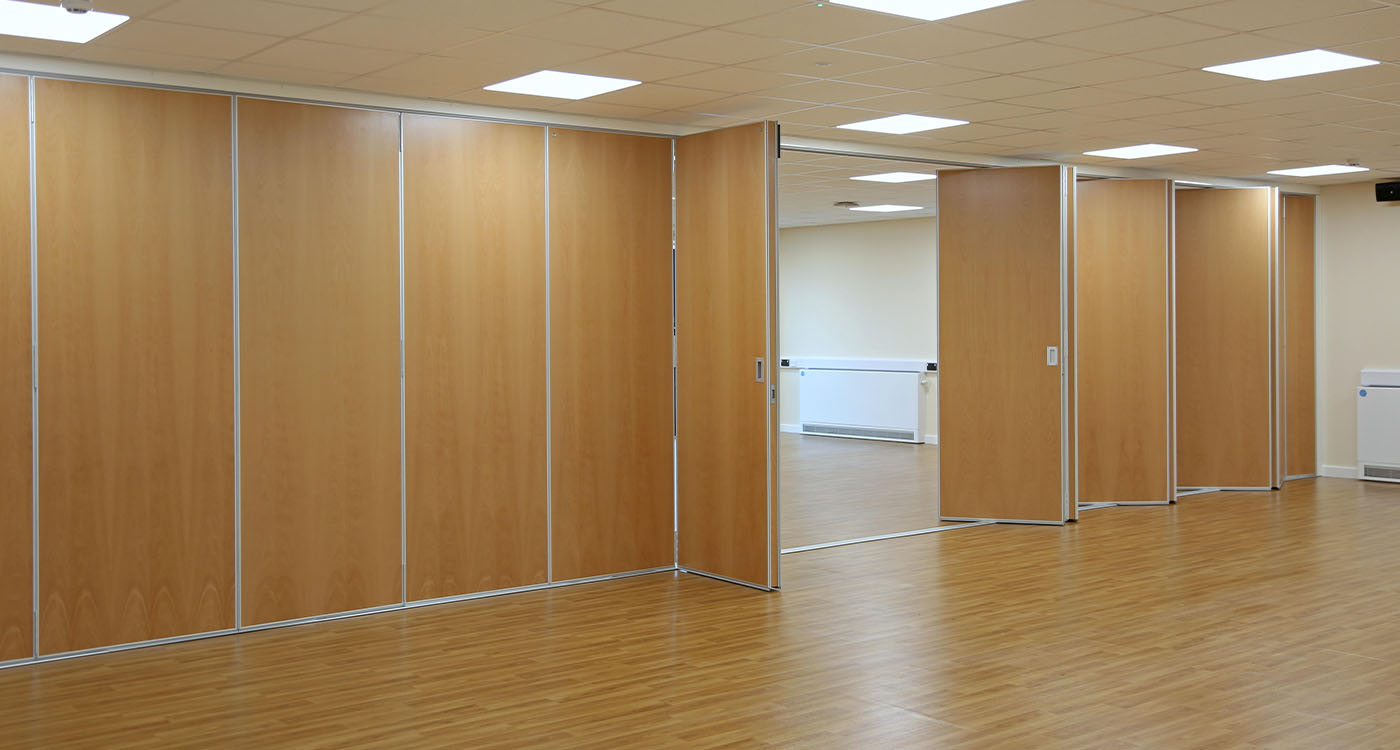

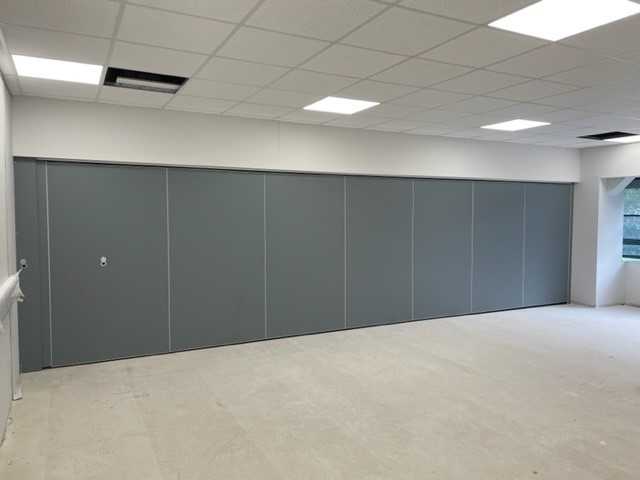

Duplex Gallery
