Quartz – Single Glazed
Quartz Partitioning Information
The single glazed frameless partitioning system is the perfect choice, when maximum natural light and an aesthetically pleasing interior design are essential.
The profile is 27/32mm wide x 27mm high and can be incorporated with any of our other demountable solid systems.
This is the ideal single glazed frameless partitions system that creates privacy and allow as much natural light into your office space as possible. A number of deflection details are available.
Compatible With:
- Manifestations
- Graphics
- Switch Glass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Single Glazed Partitioning Specification
Dimensions:
Height up to 4200mm
Track Width 27mm/32mm/100mm
Track Height 27mm/50mm
Acoustics:
Up to 41dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Dry Joint
Corners:
Dry Joint
(90, 135 & T)
Deflection Head:
+/-12.5mm / +/-25mm
Door Options:
QuartzGlide
Timber Door
Glass Door
Stile Door
GDS Door
MK2 Door
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Quartz.
Glass Type:
Toughened – Laminated
Glass Thickness:
10mm – 19mm
Options:
Manifestations
Graphics
Switch Glass
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

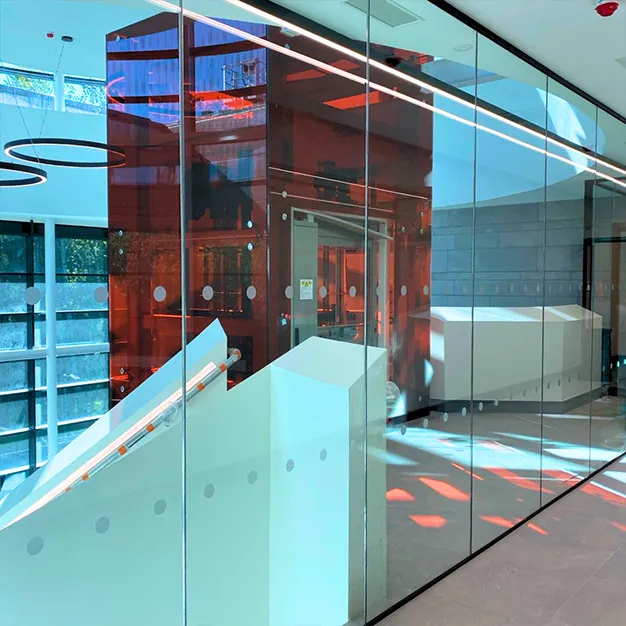

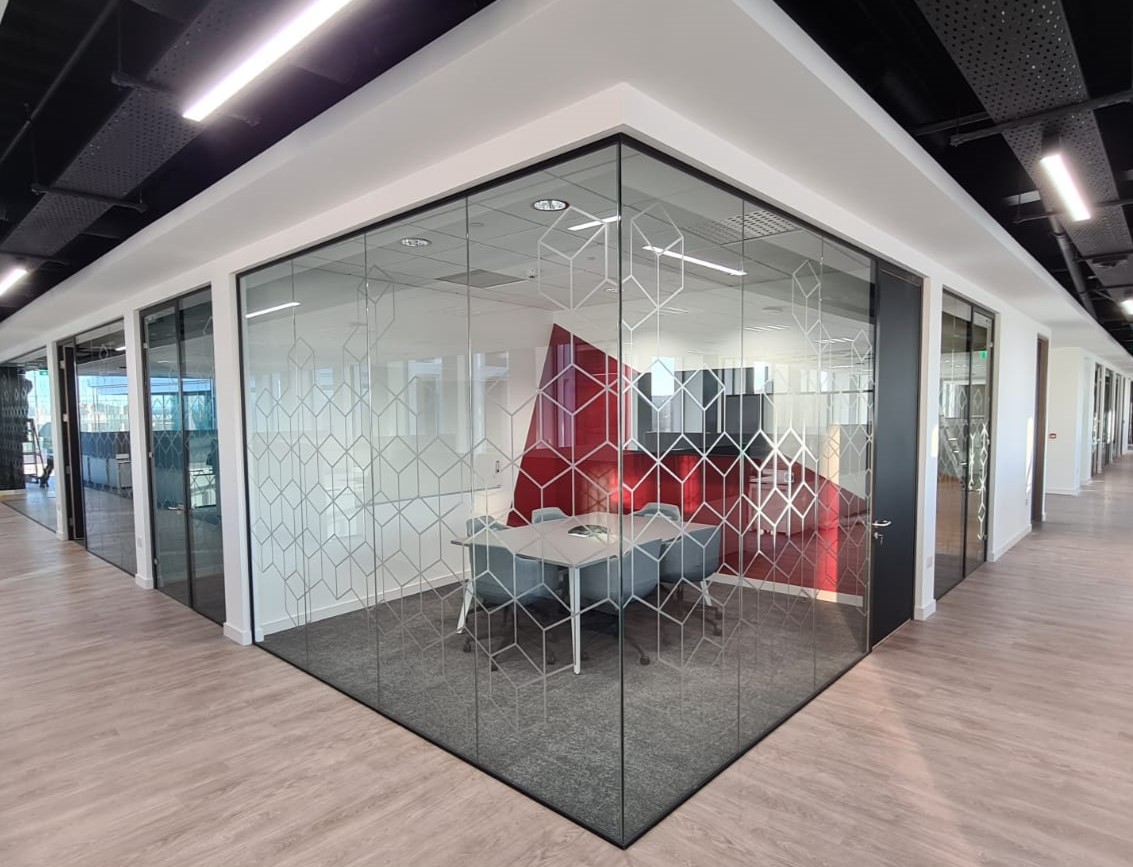

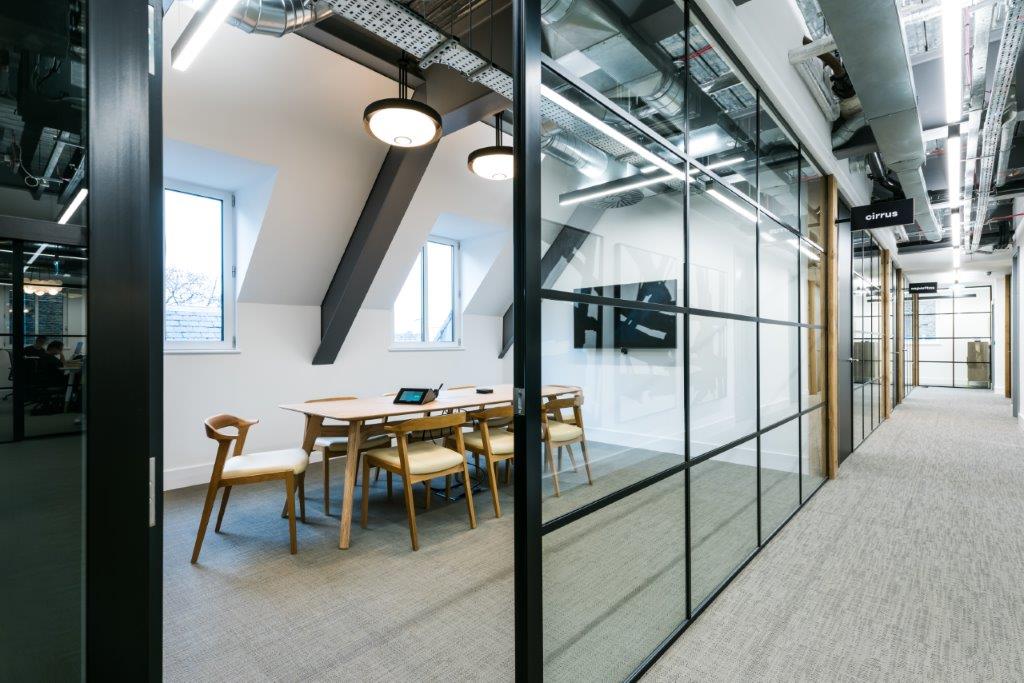

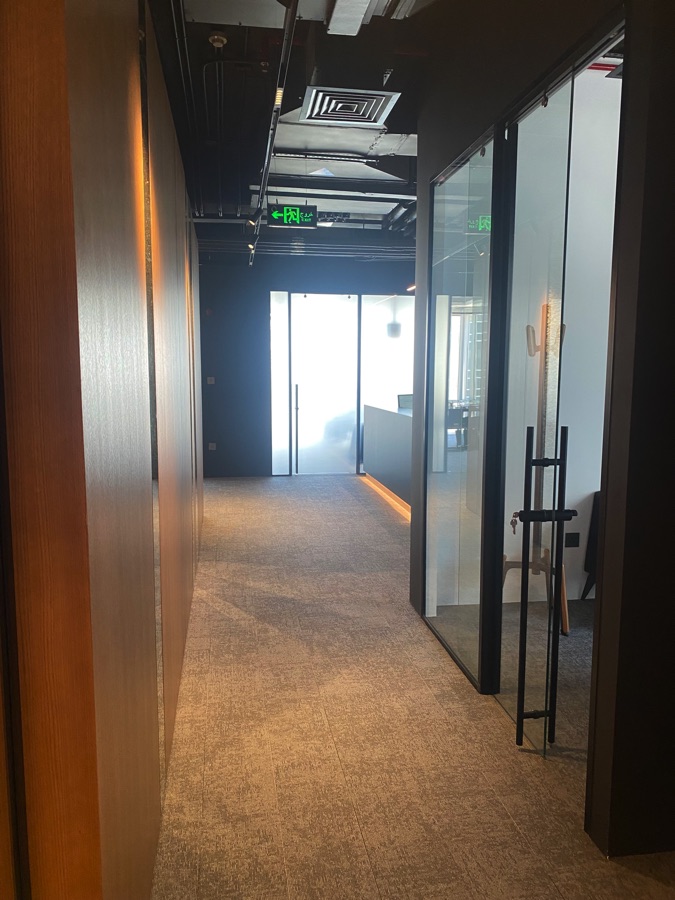

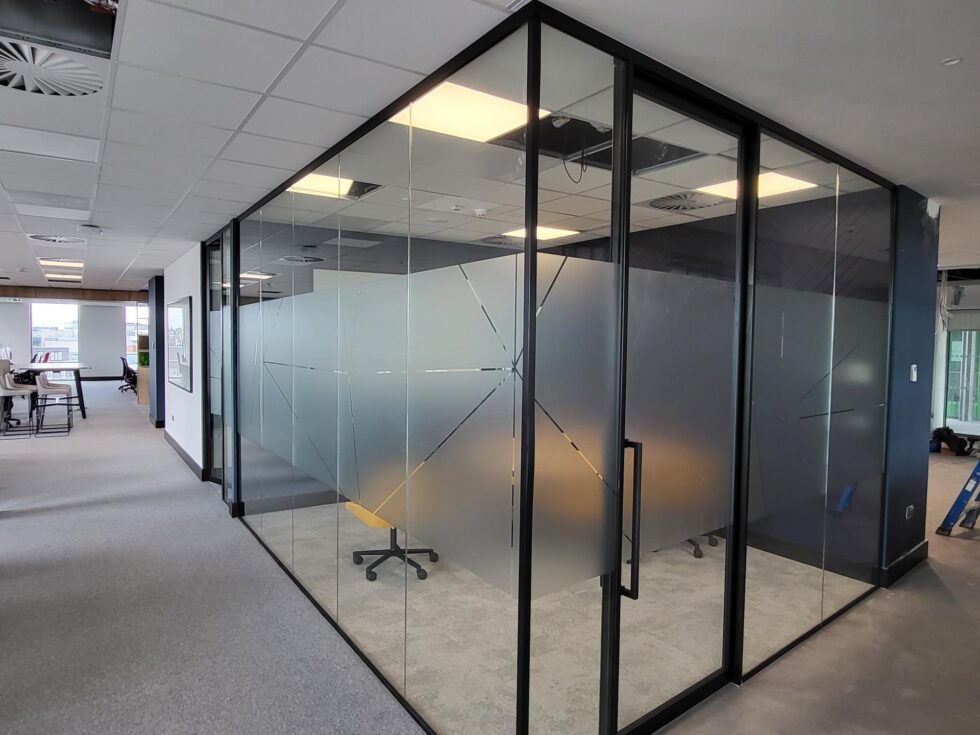

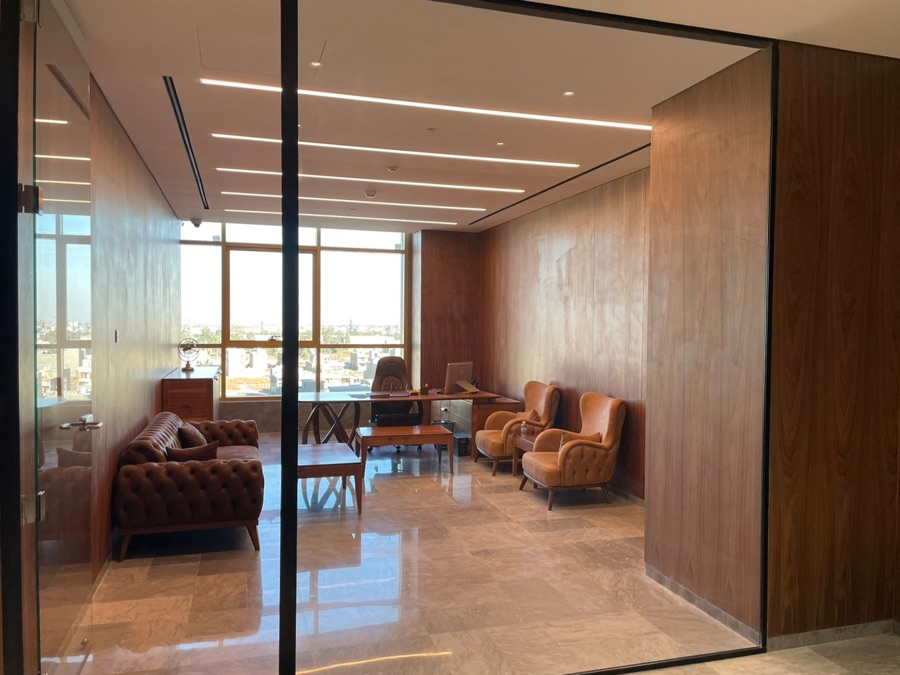

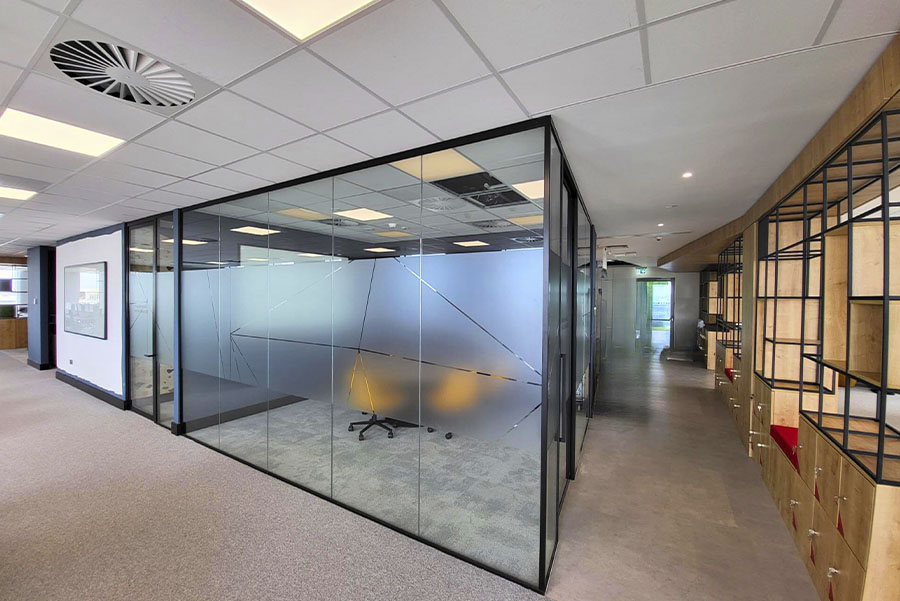

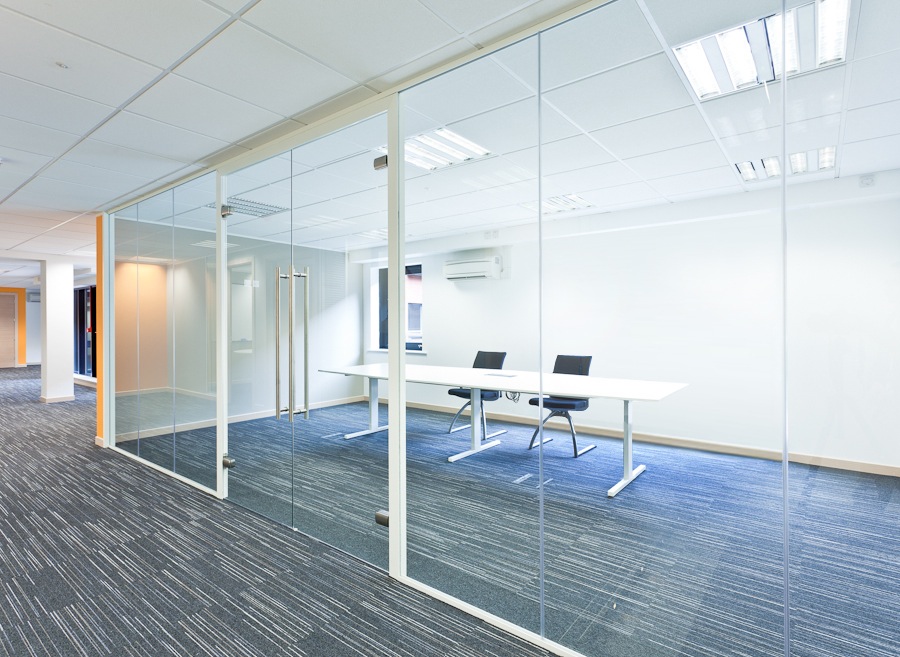

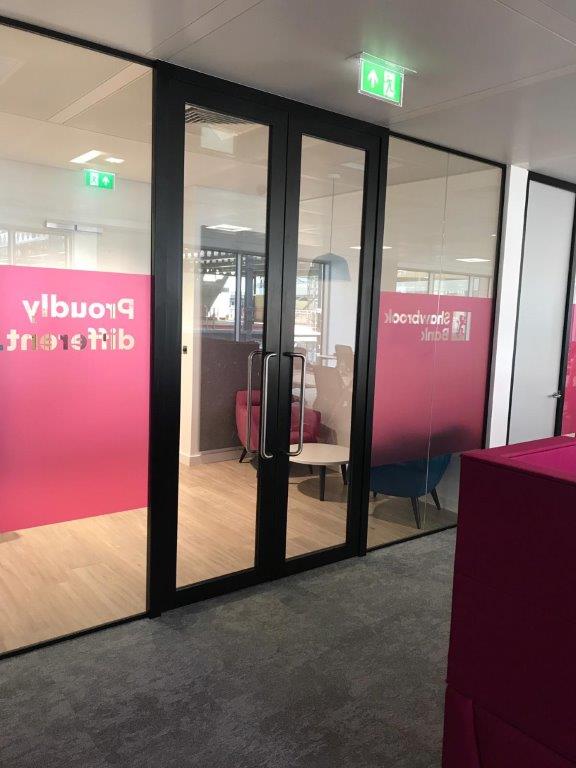

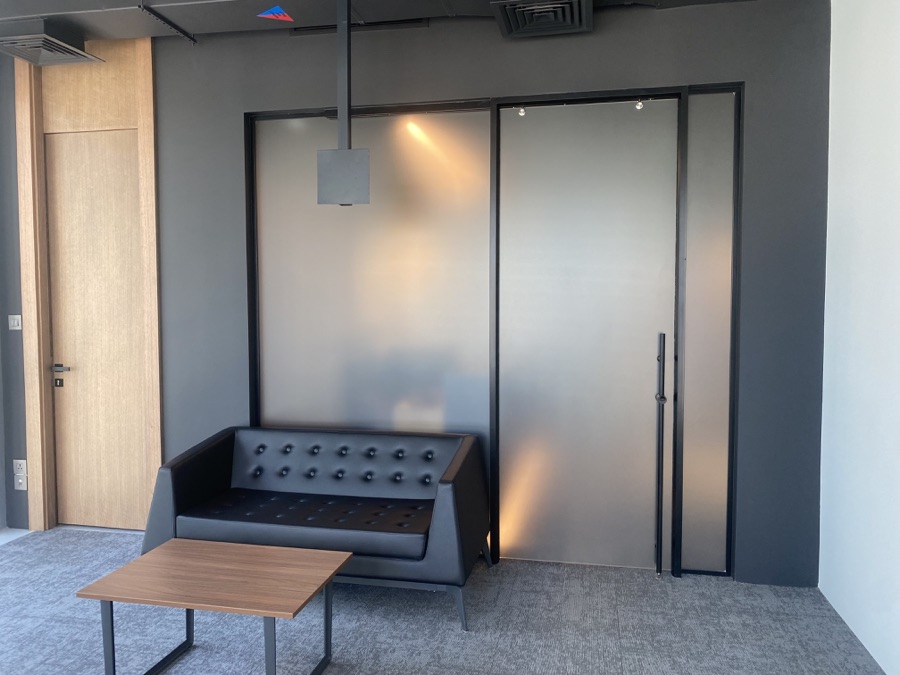

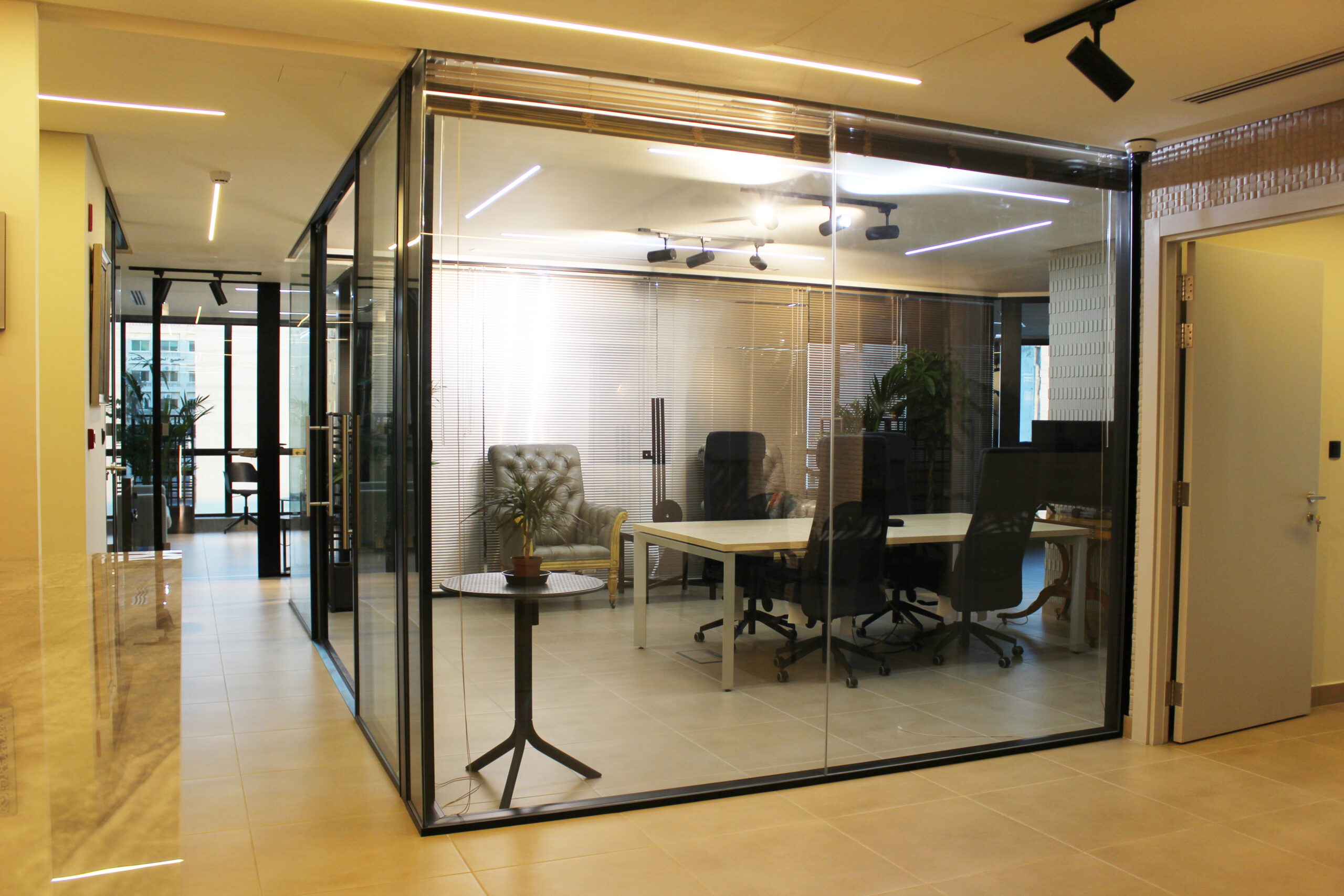

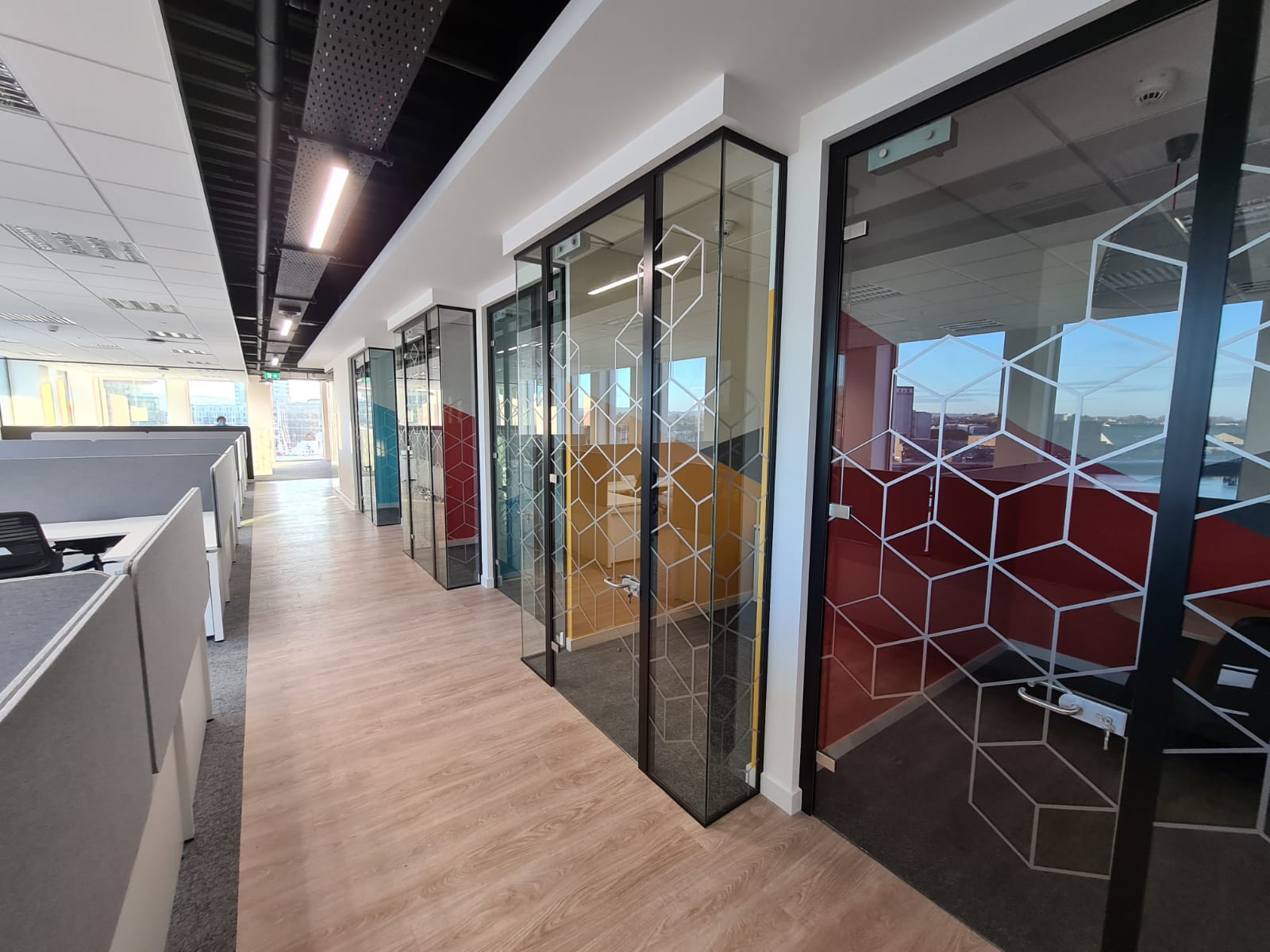

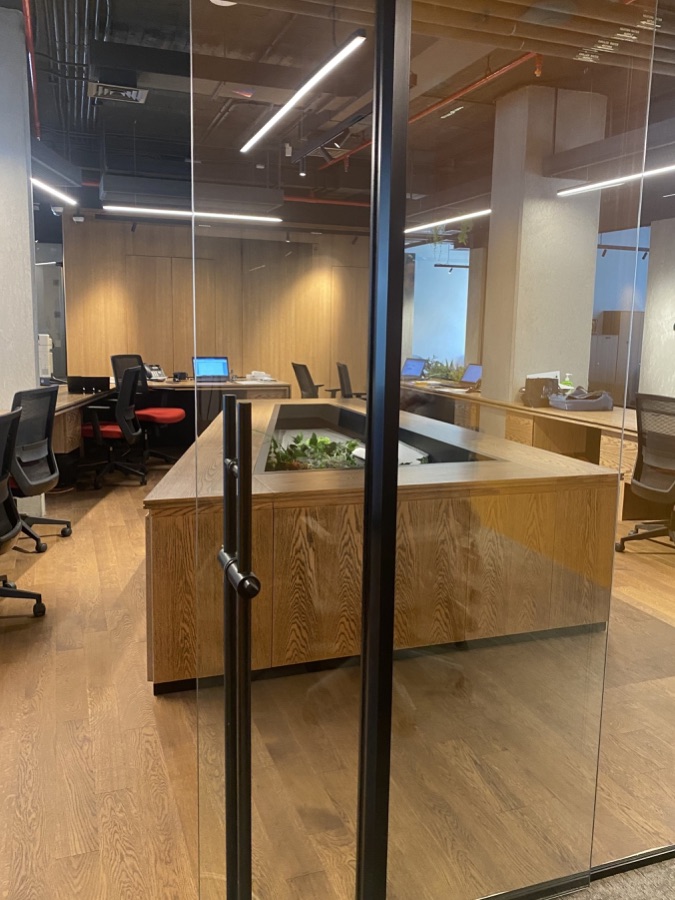

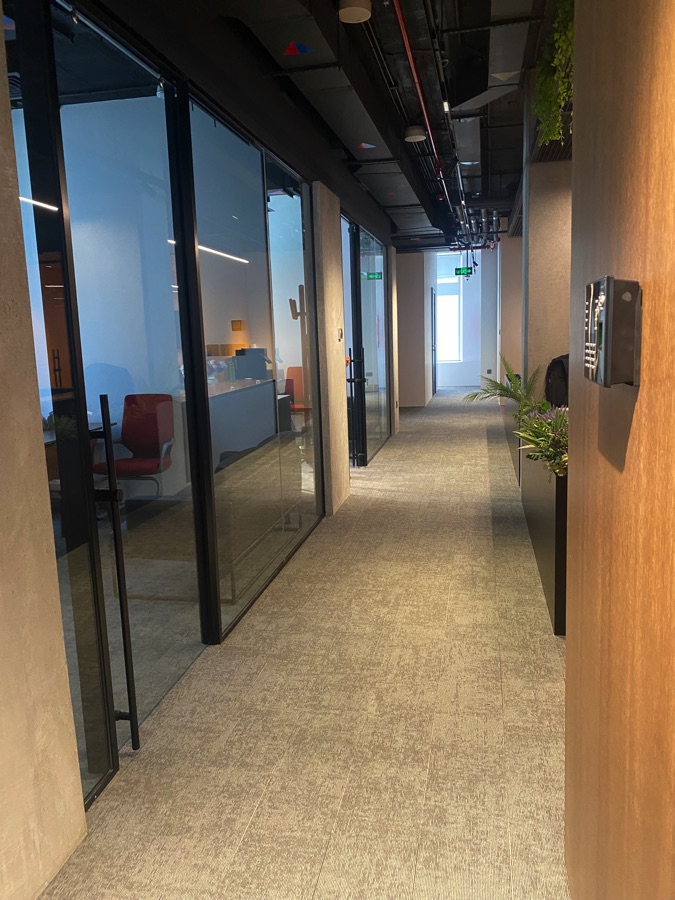

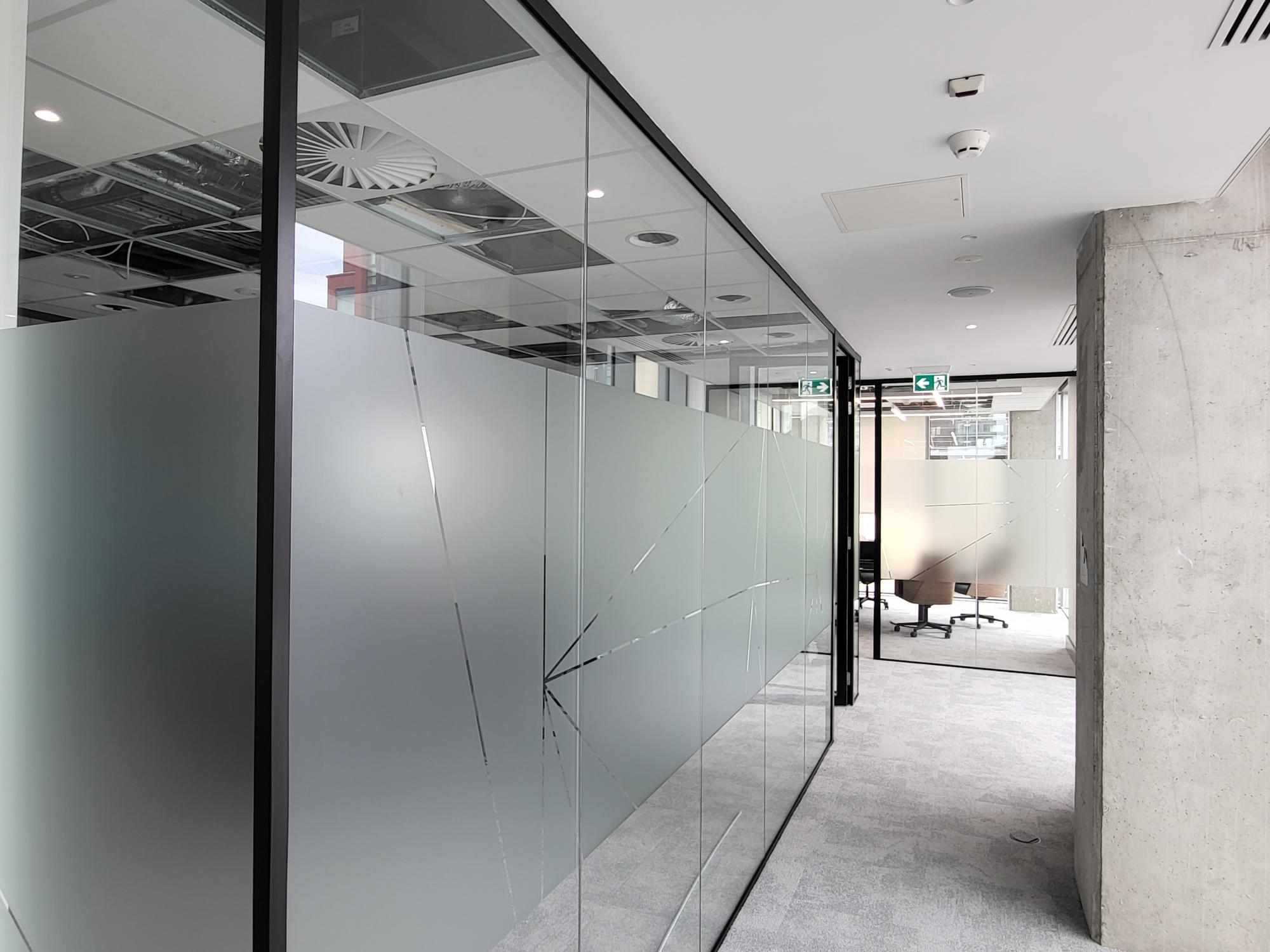

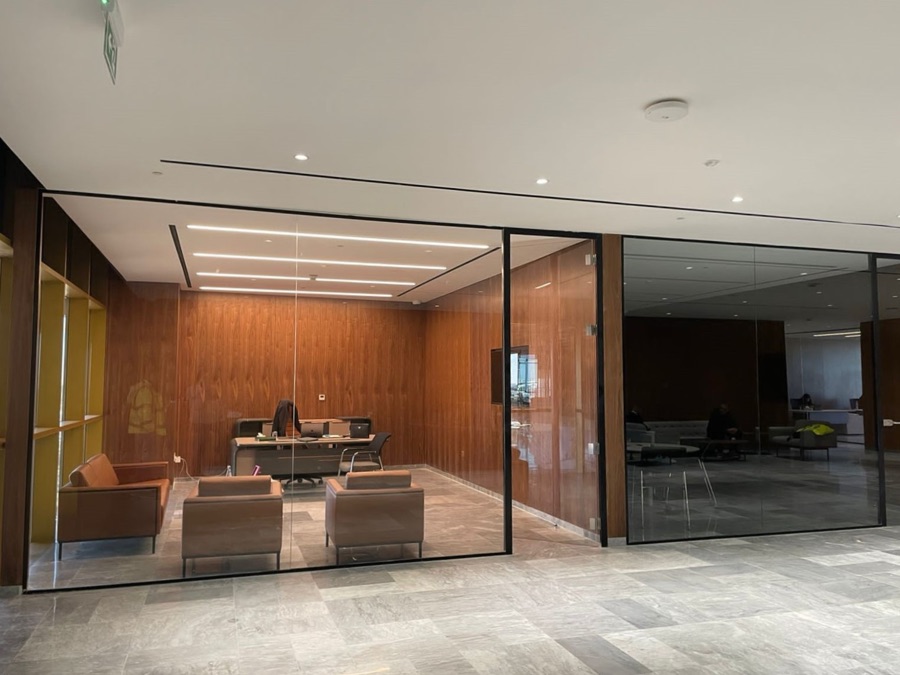

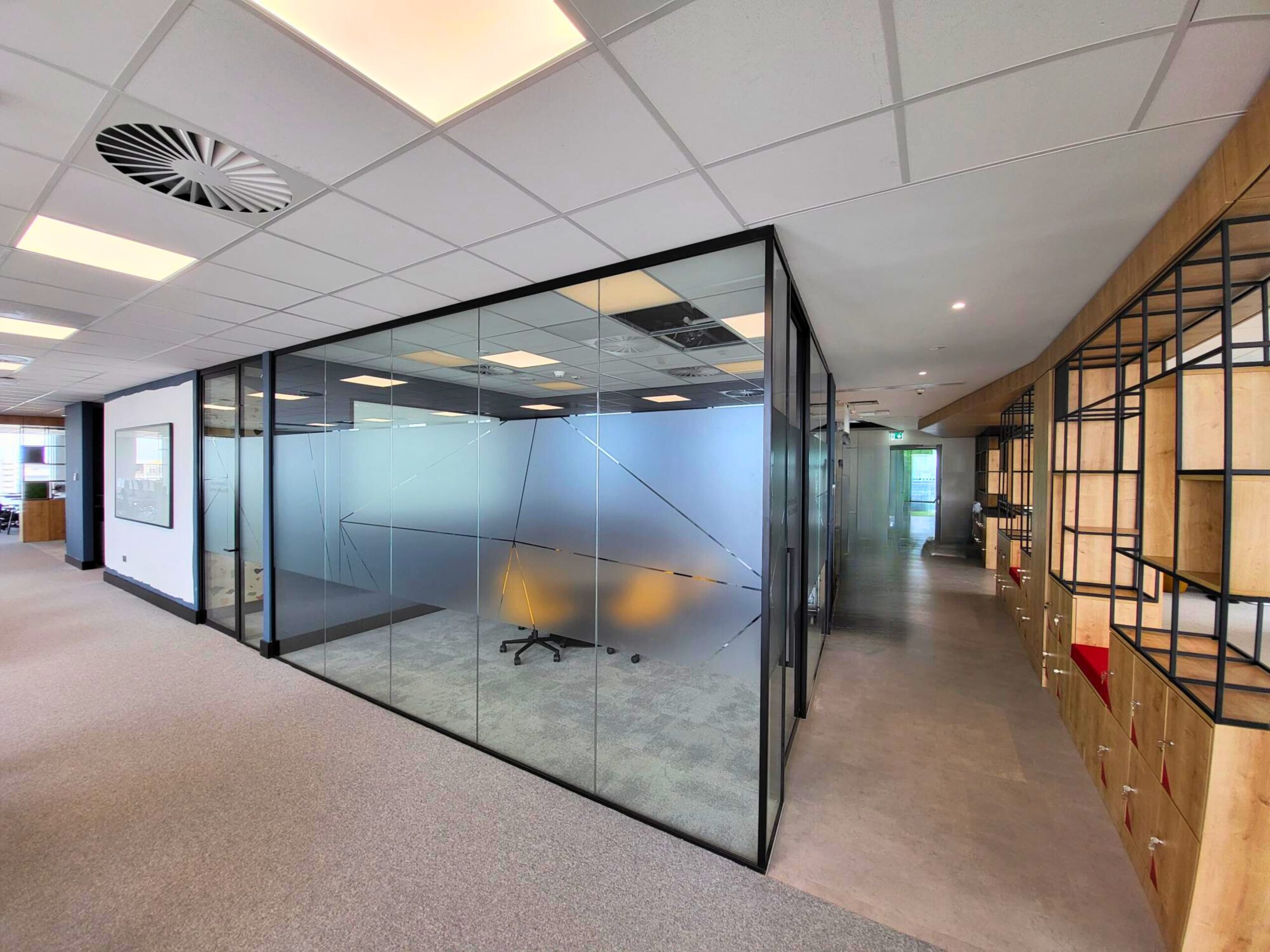

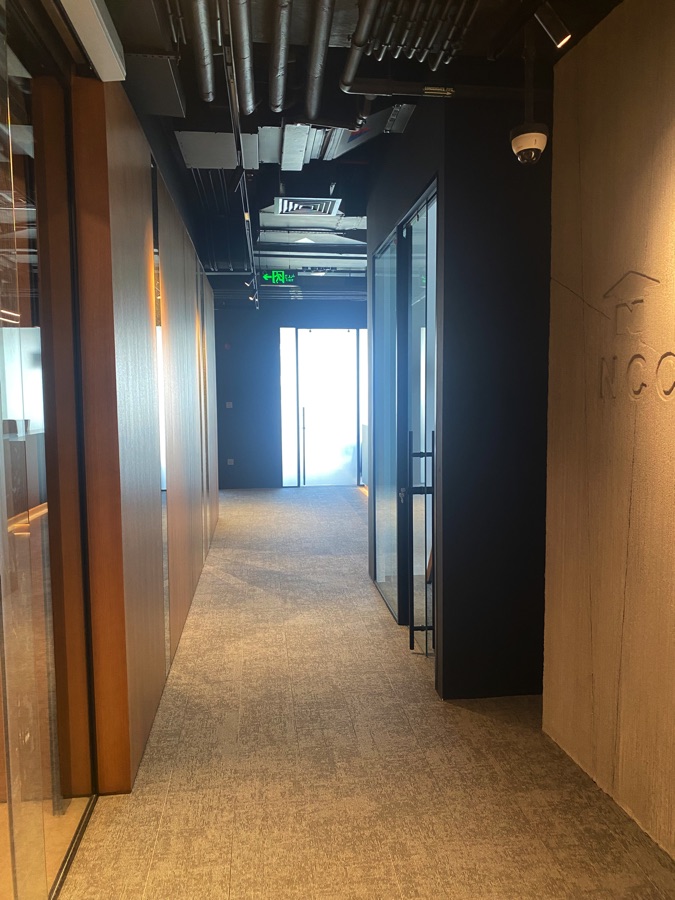

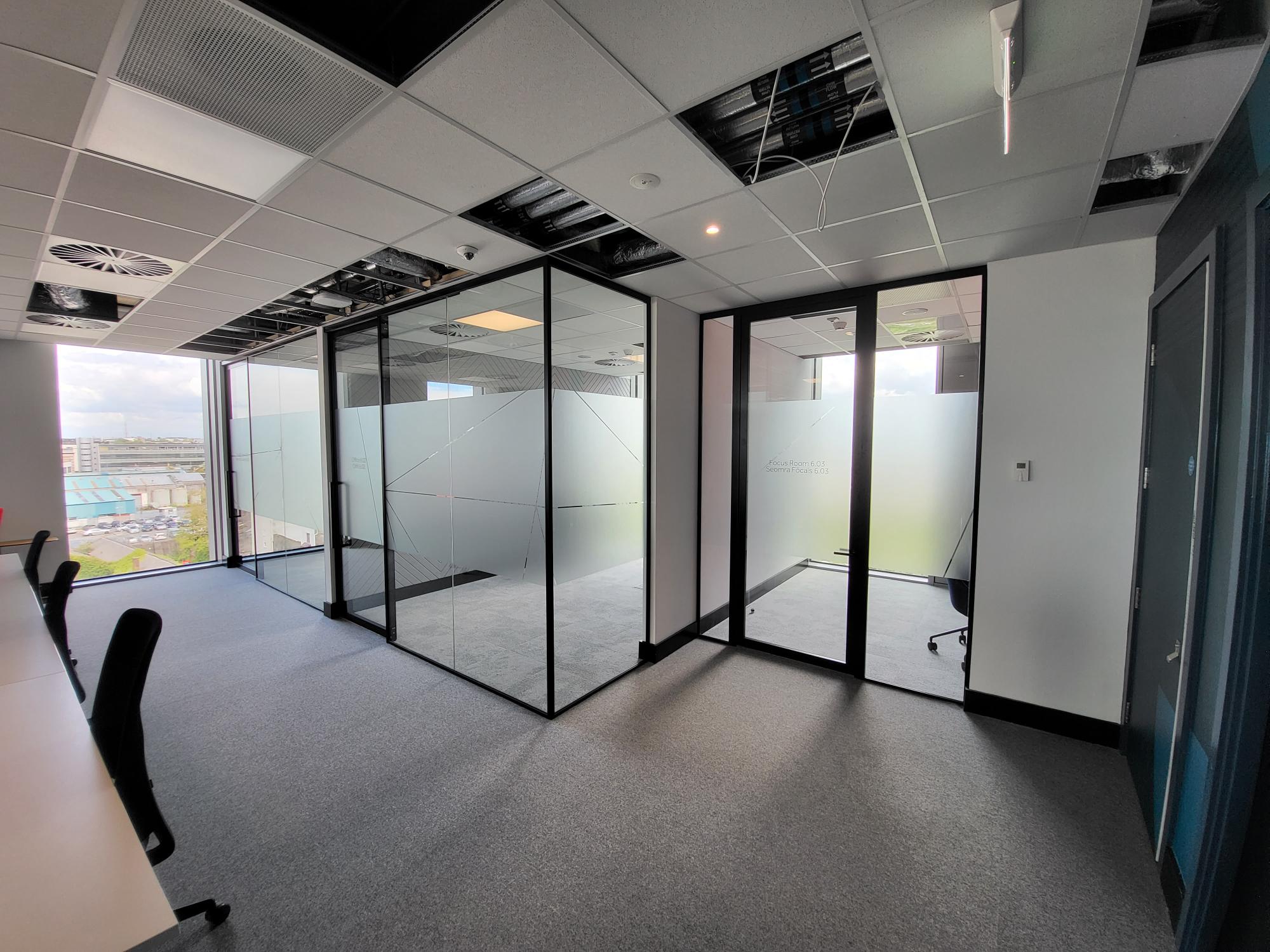

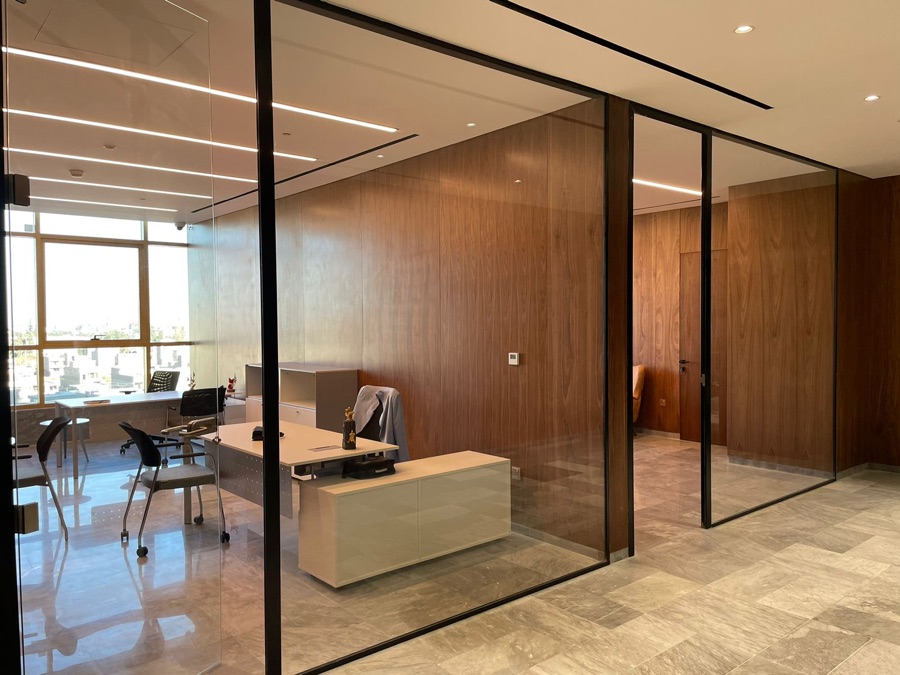

Gallery
