Quartz – Double Glazed 54mm
Quartz Partitioning Information
Quartz 54 is our frameless slimline double-glazed office partitioning system that boasts a high acoustic performance with sleek 54mm profiles and a purpose-designed micro door frame. This system ensures privacy and concentration with its stylish profiles and minimalist design adding an elegant touch to any office environment.
Compatible With:
- Manifestations
- Graphics
- Switch Glass
- Blinds
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Double Glazed 54mm Partitioning Specification
Dimensions:
Height up to 3000mm
Track Width 54mm
Track Height 27mm/50mm
Acoustics:
Up to 47dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Dry Joint
Corners:
Dry Joint
(90, 135 & T)
Deflection Head:
+/-12.5mm
Door Options:
QuartzGlide
Timber Door
Glass Door
Stile Door
GDS Door
MK2 Door
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Quartz.
Glass Type:
Toughened – Laminated
Glass Thickness:
10mm – 12.8mm
Options:
Manifestations
Graphics
Switch Glass
Blinds
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

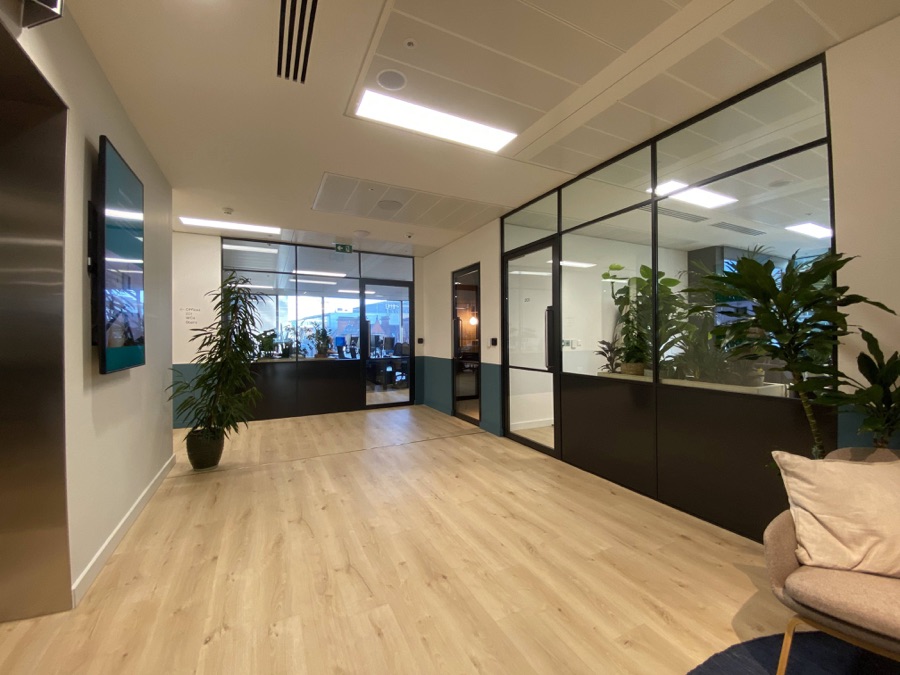

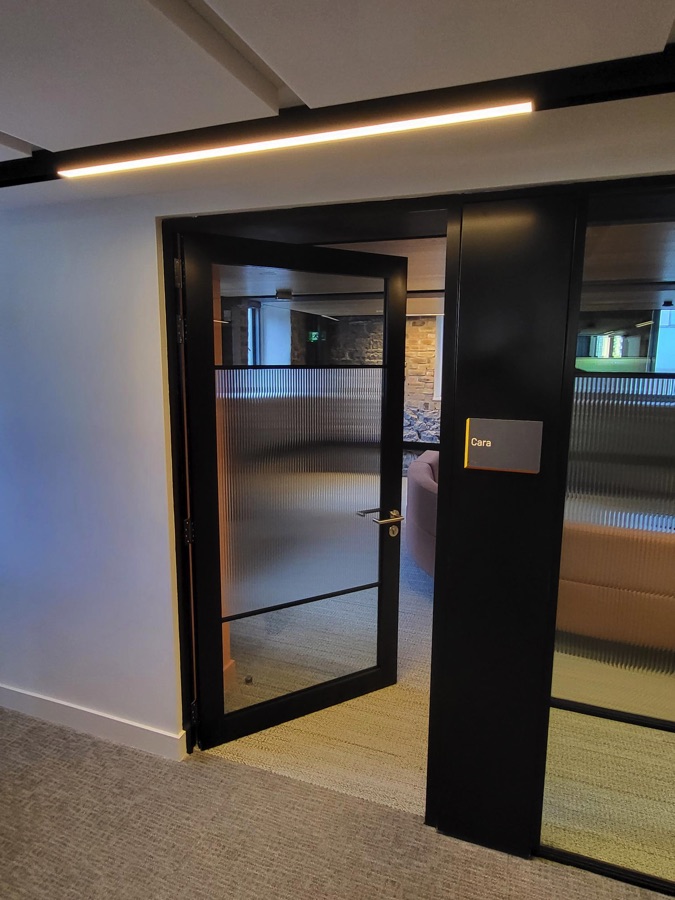

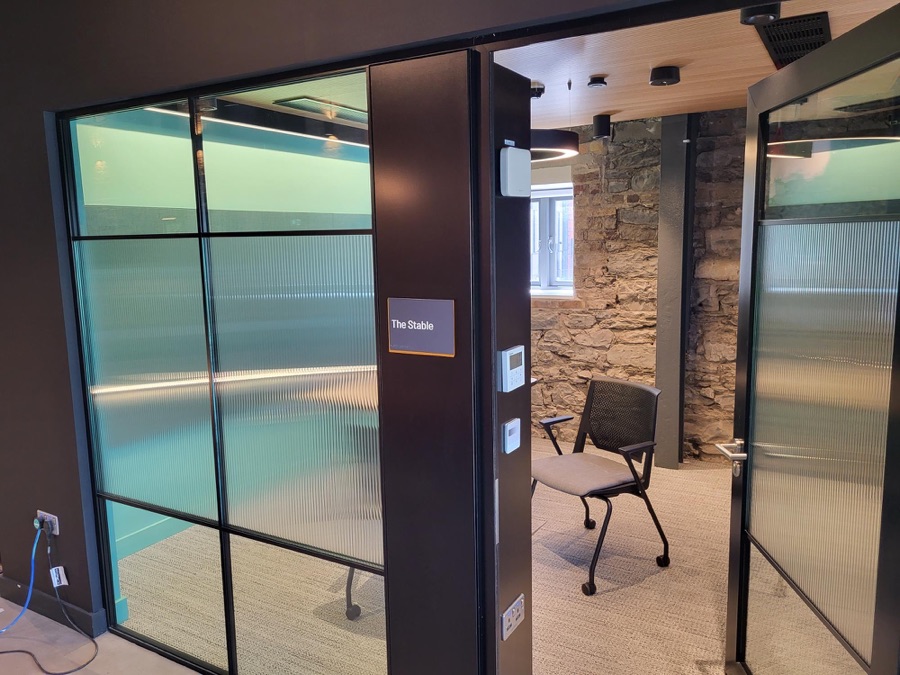

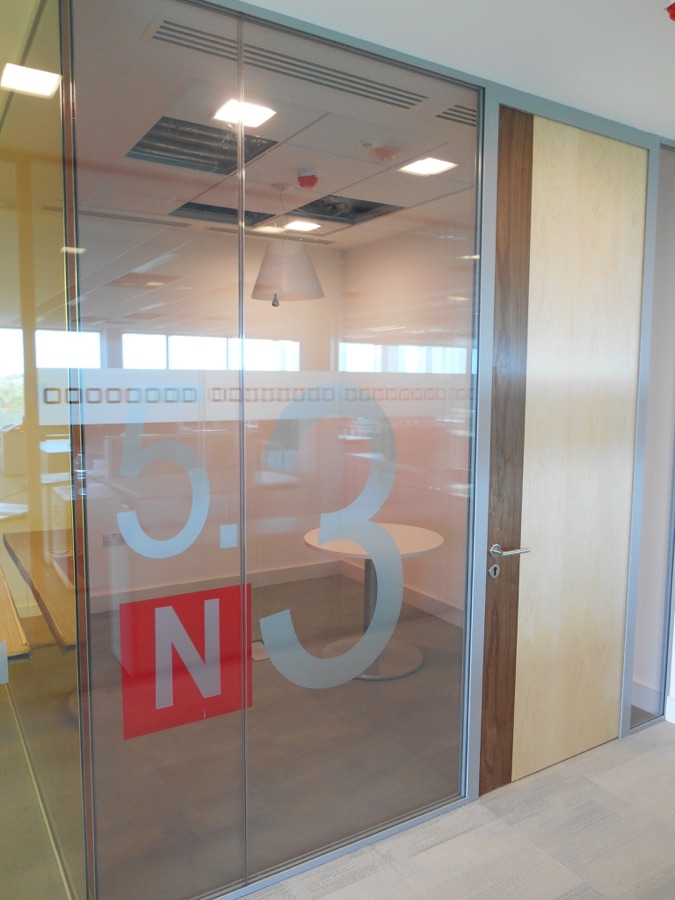

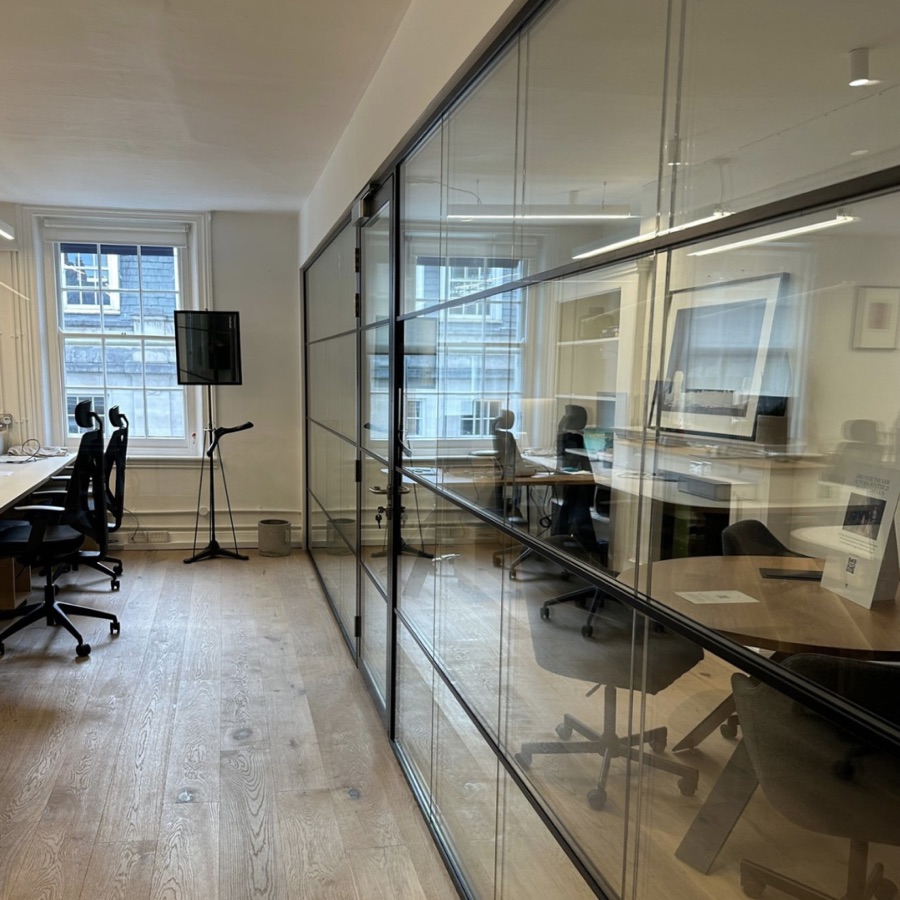

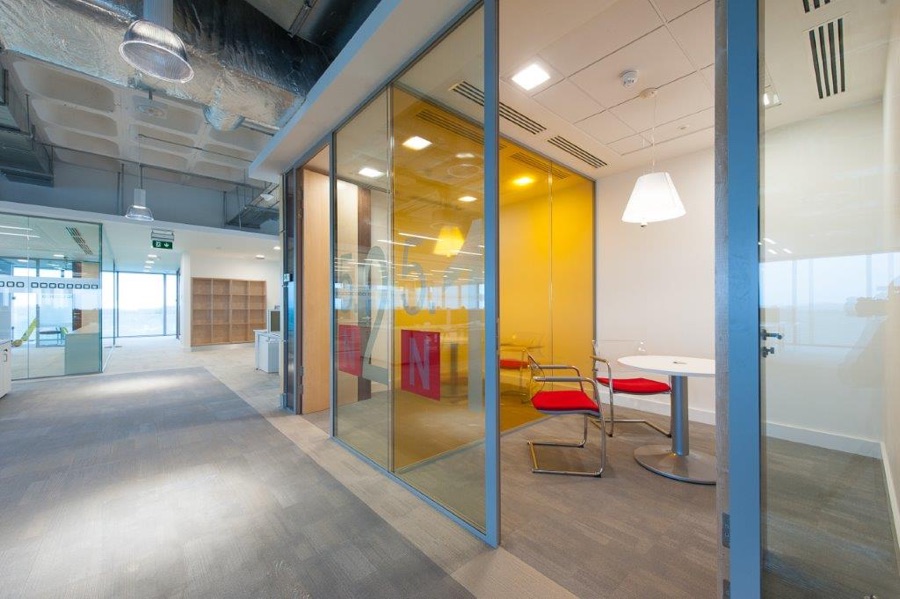

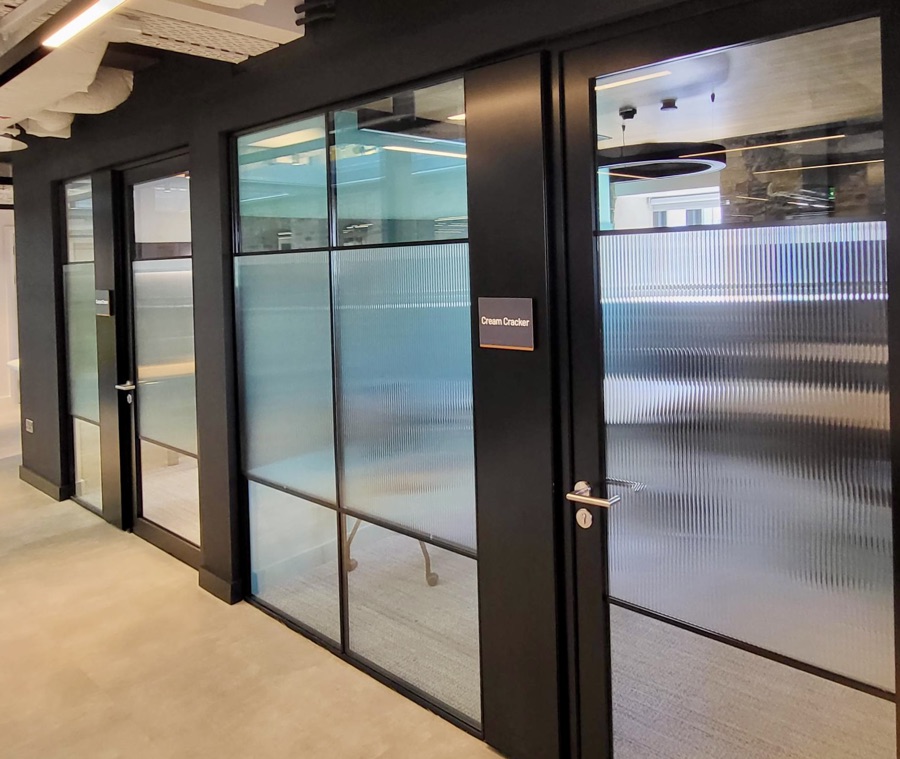

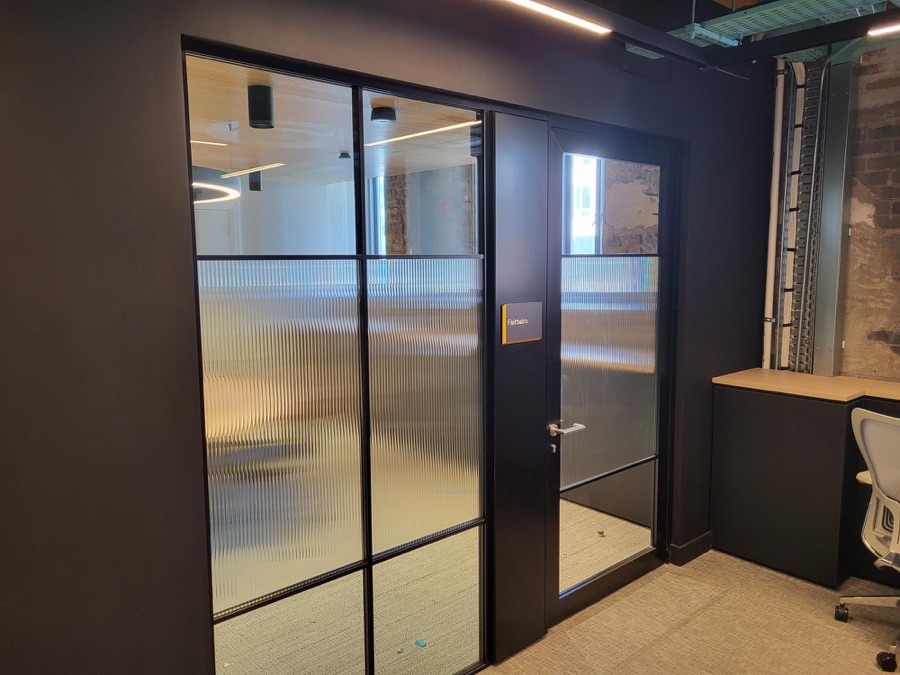

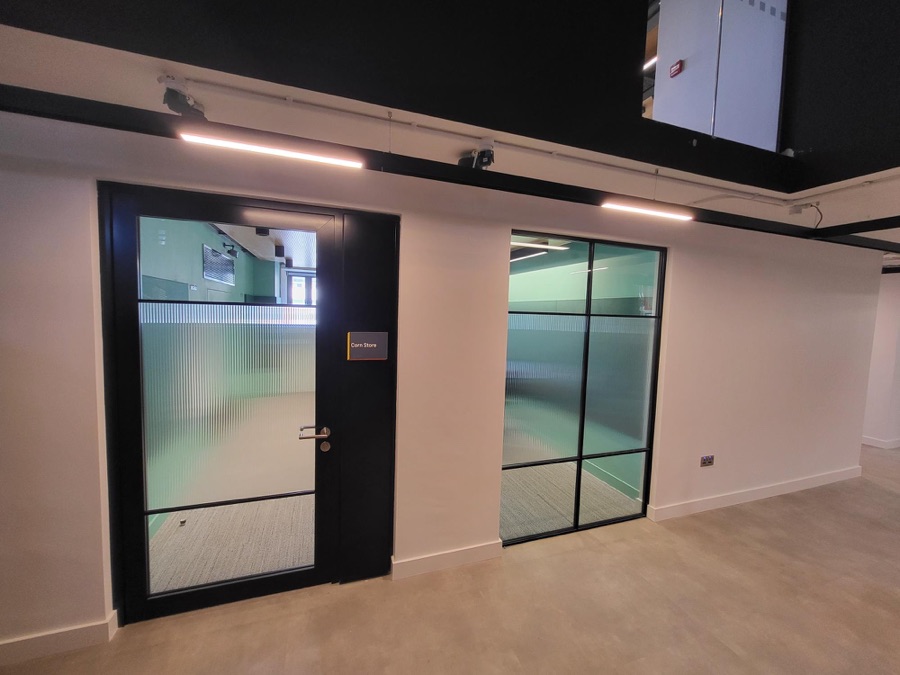

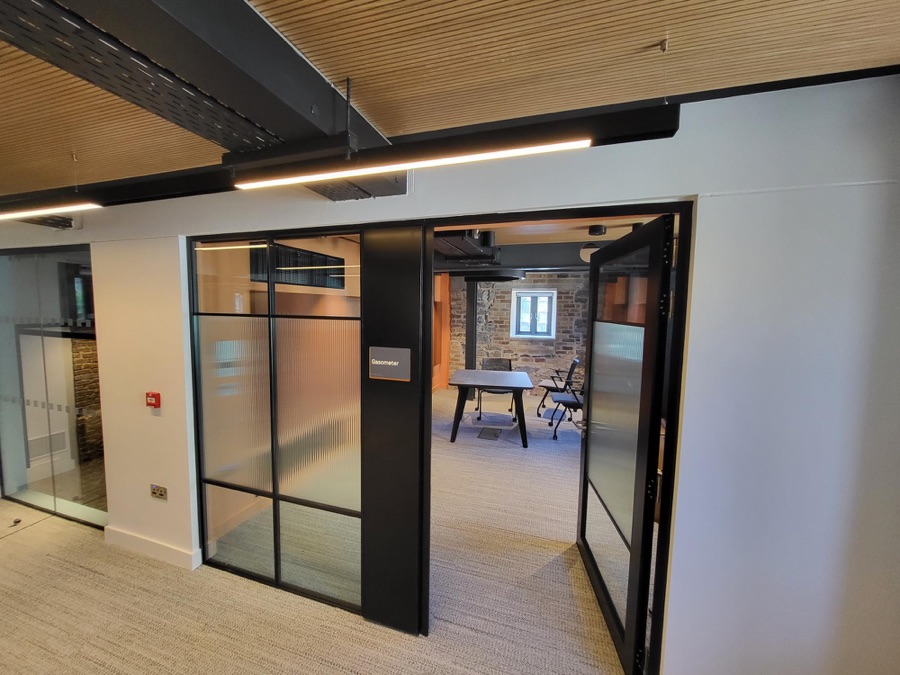

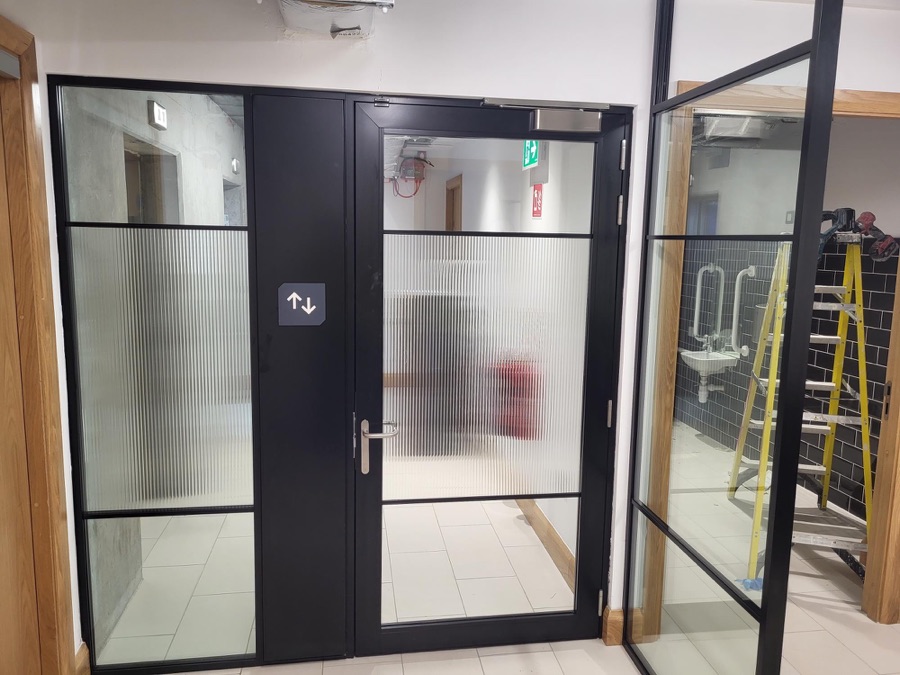

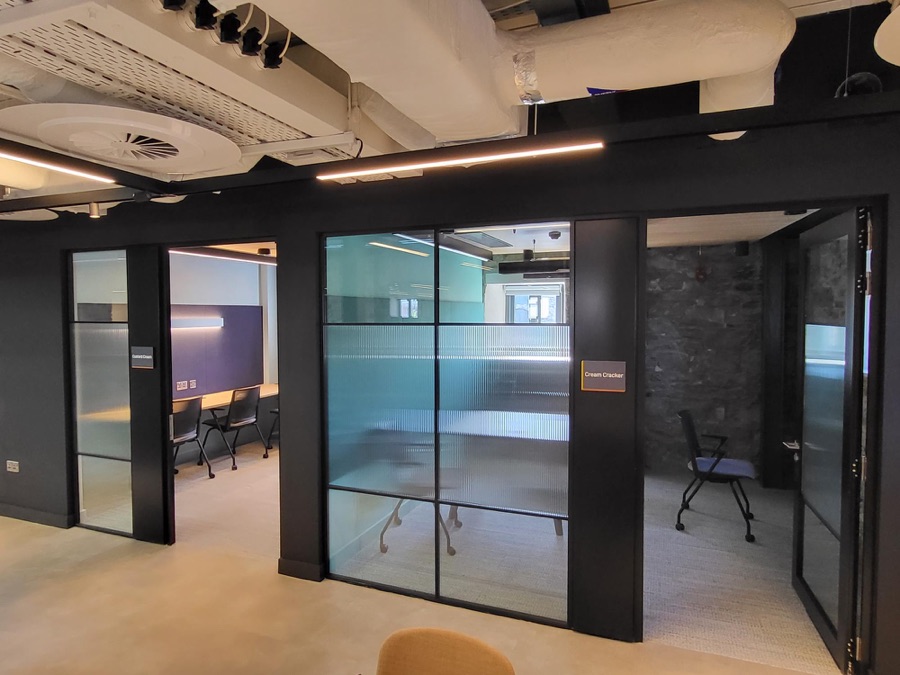

Quartz Double Glazed 54mm Gallery
