Quartz – Framed Linear – Aluminium Banded Glazing
Quartz Partitioning Information

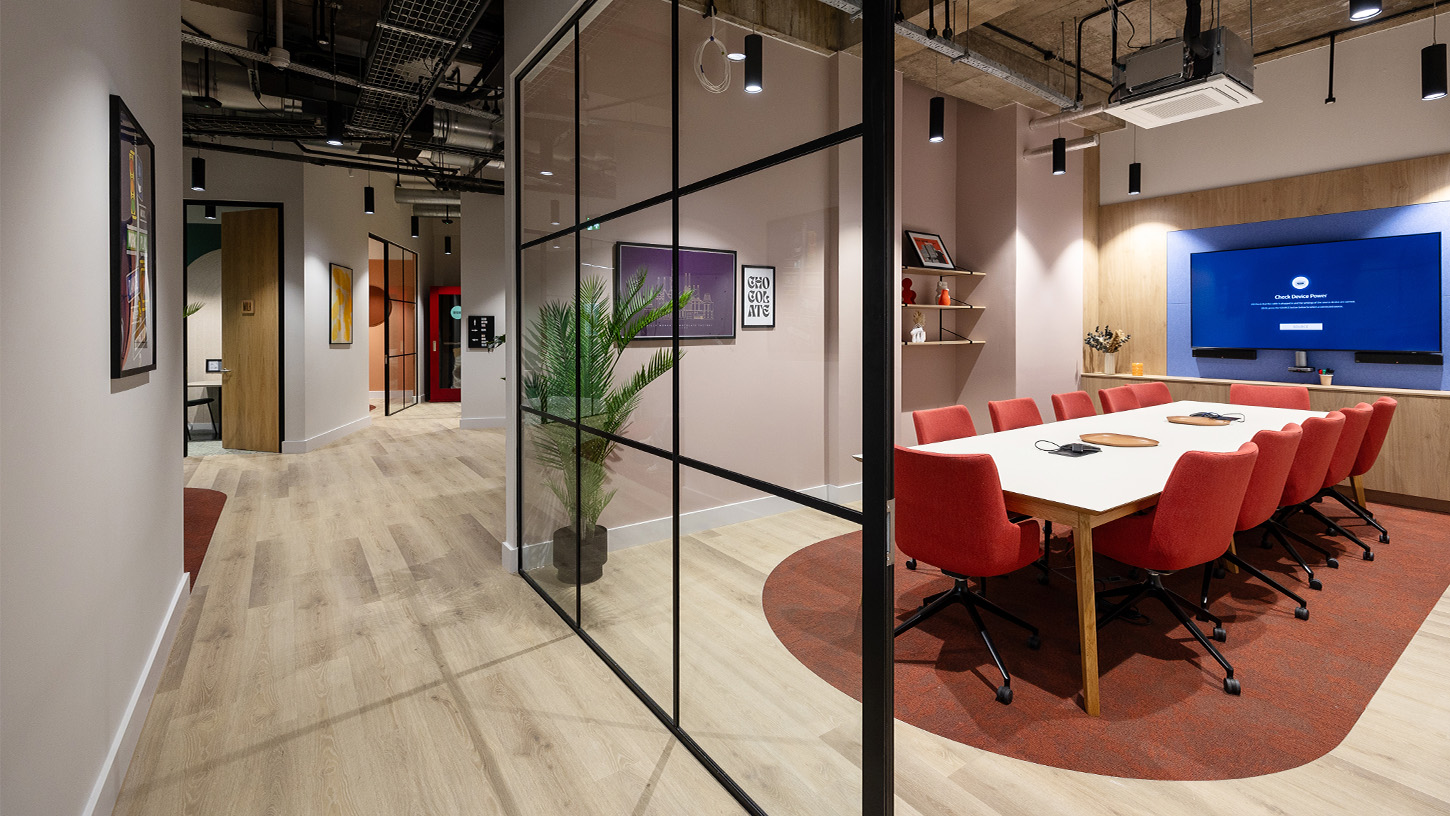

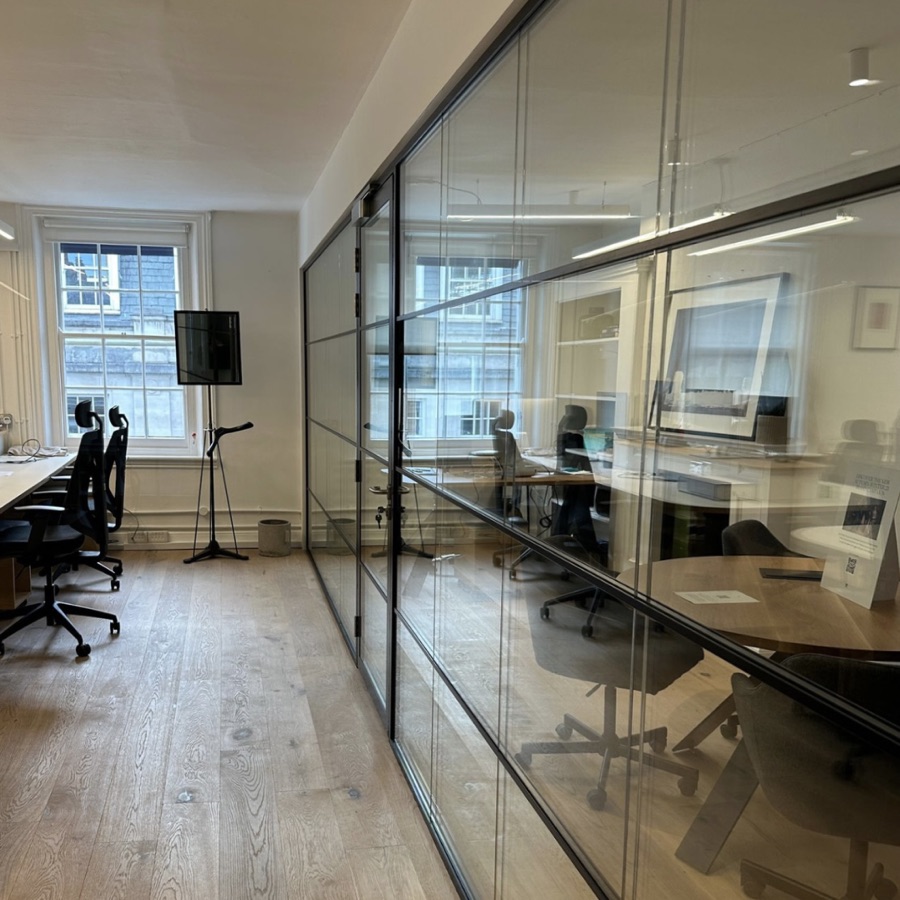

Our Quartz Linear – Aluminium Banded partitioning system seamlessly blends aluminium elegance with a functional design. Available with either our Quartz single glazed or our 54mm double glazed tracks, Quartz Linear provides an enhanced workplace aesthetic with its industrial framed appearance.
The aluminum bands are available in various widths that allow personalised customisation for an bespoke, modern aesthetic.
Compatible with:
- Manifestations
- Graphics
- Switch Glass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Framed Linear – Aluminium Banded Glazing Partitioning Specification
Dimensions:
Height up to 4200mm
Track Width 27mm/32mm/54mm/100mm
Track Height 27mm/50mm
Acoustics:
Up to 55dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Dry Joints / Aluminium Linear Joint
Corners:
Dry Joint
(90, 135 & T)
Deflection Head:
+/-12.5mm / +/-25mm
Door Options:
Timber Door
Glazed Door
Stile Door
GDS Door

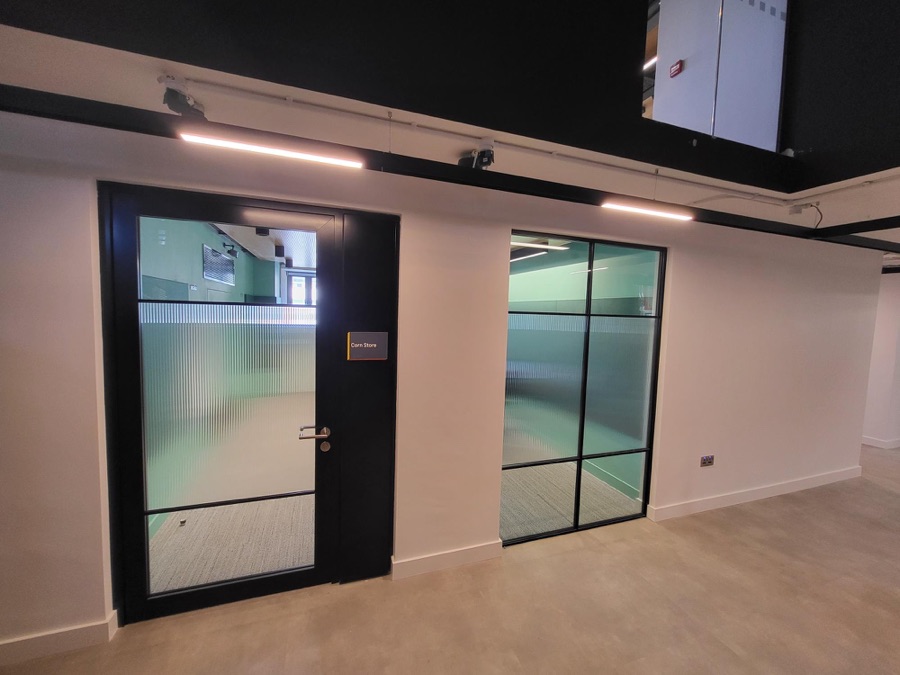

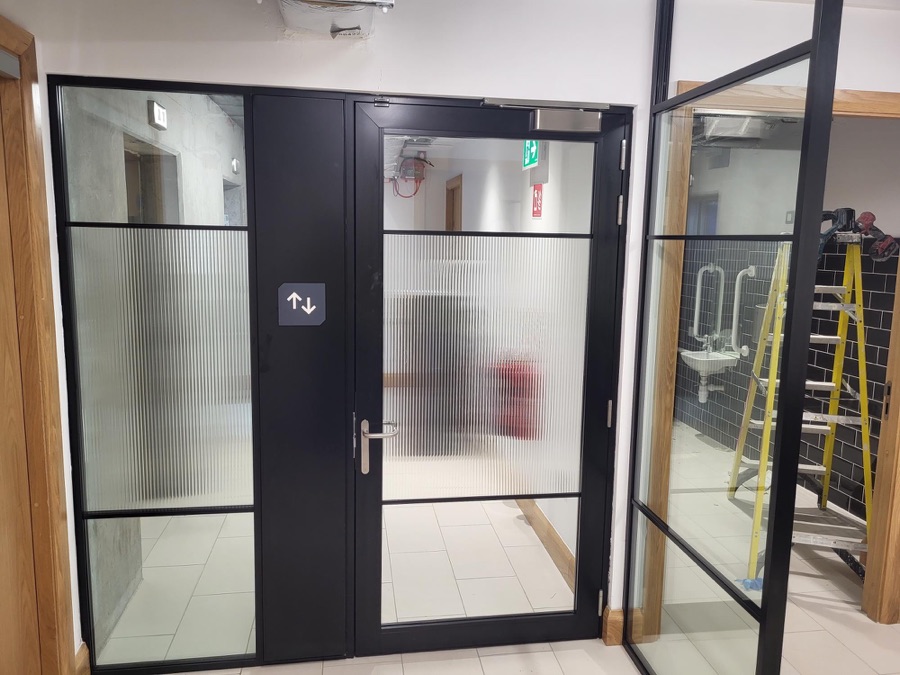

MK2
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Quartz.
Glass Type:
Toughened – Laminated
Glass Thickness:
10 – 19mm
Options:
Manifestations
Graphics
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

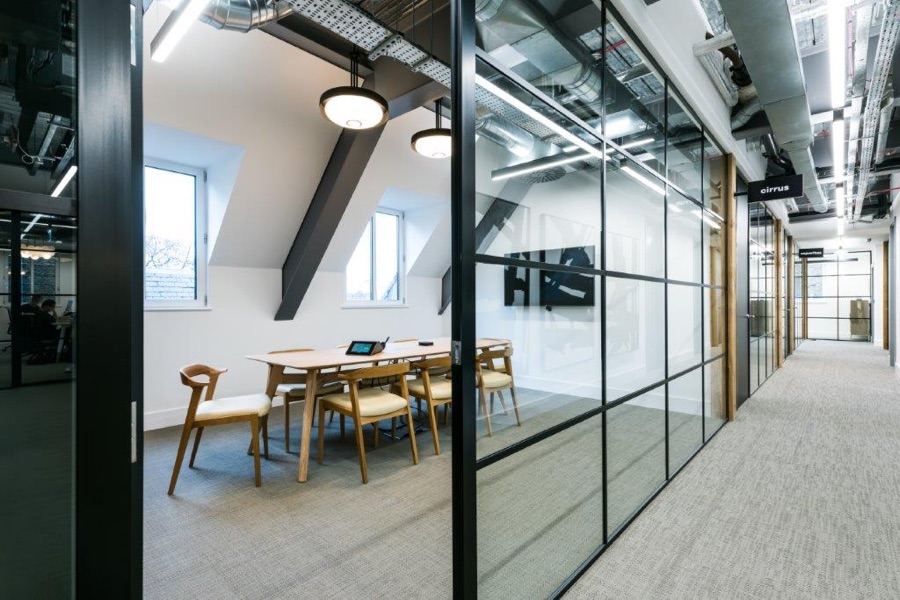

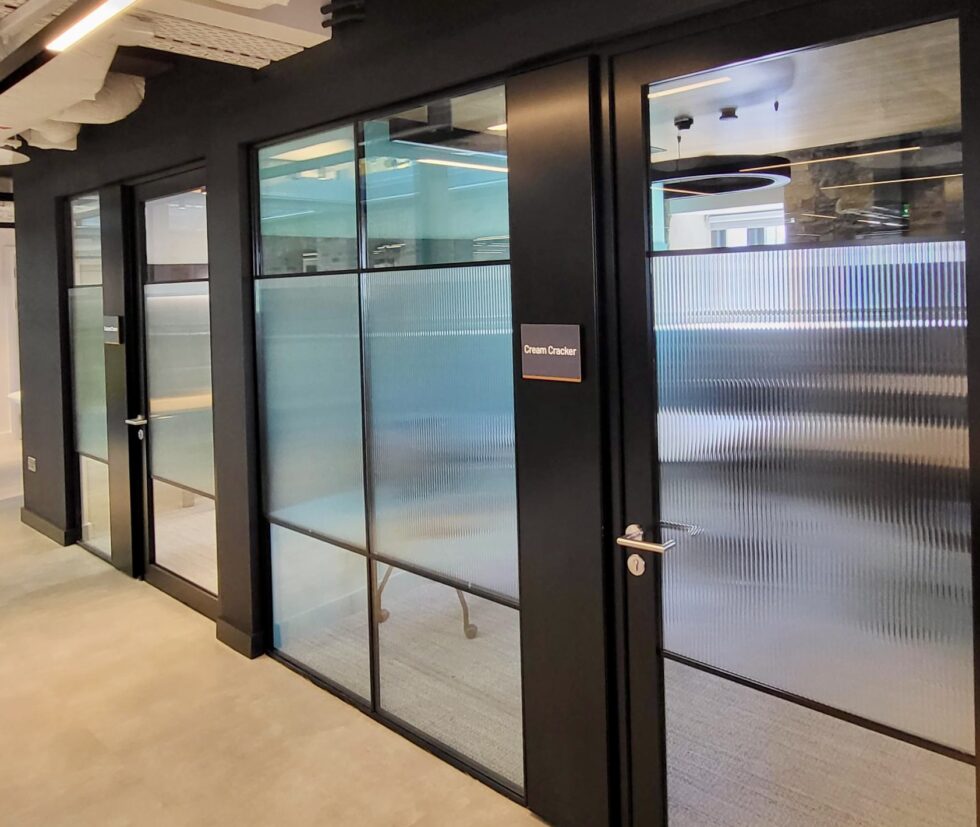

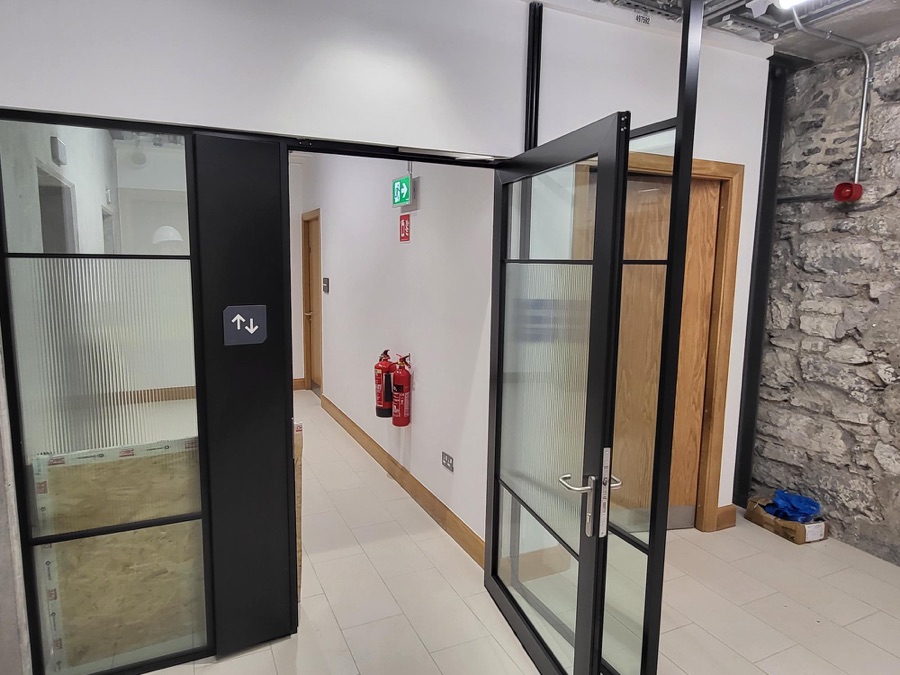

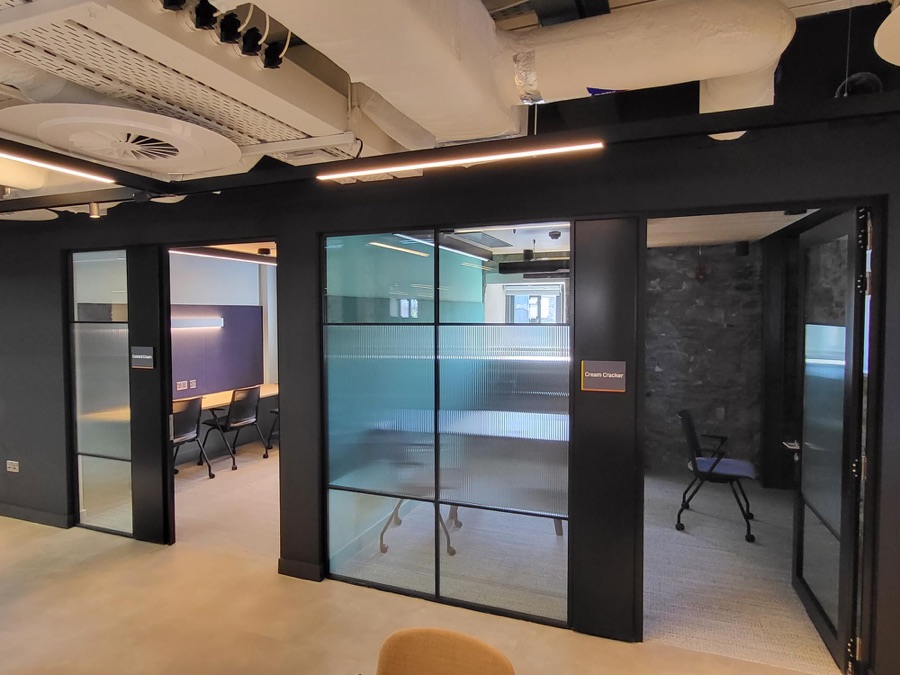

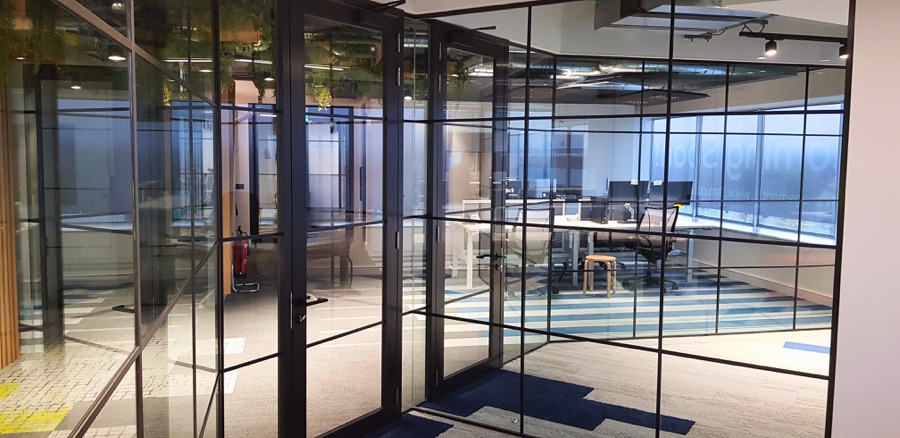

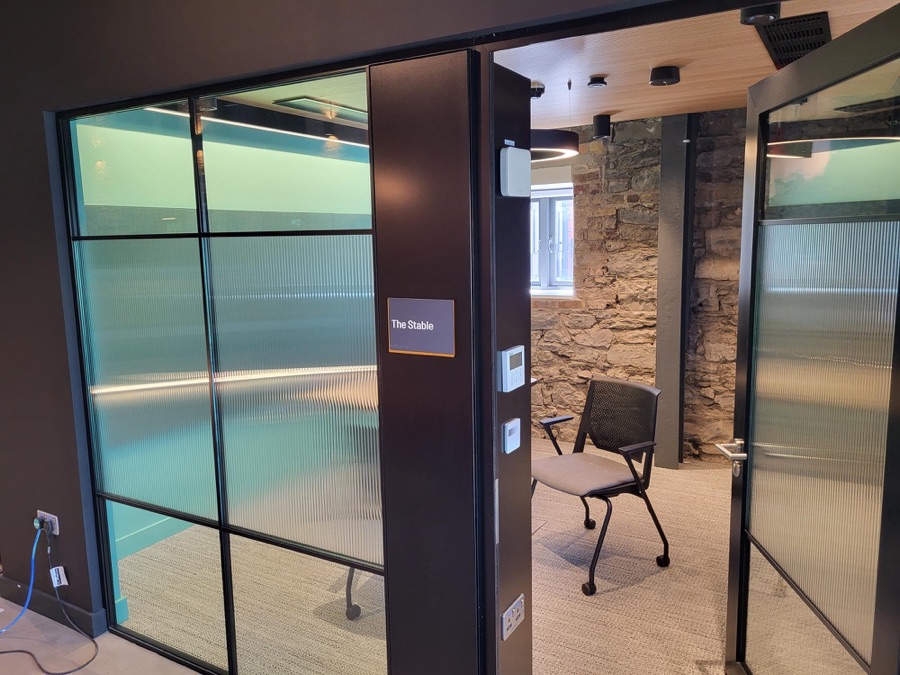

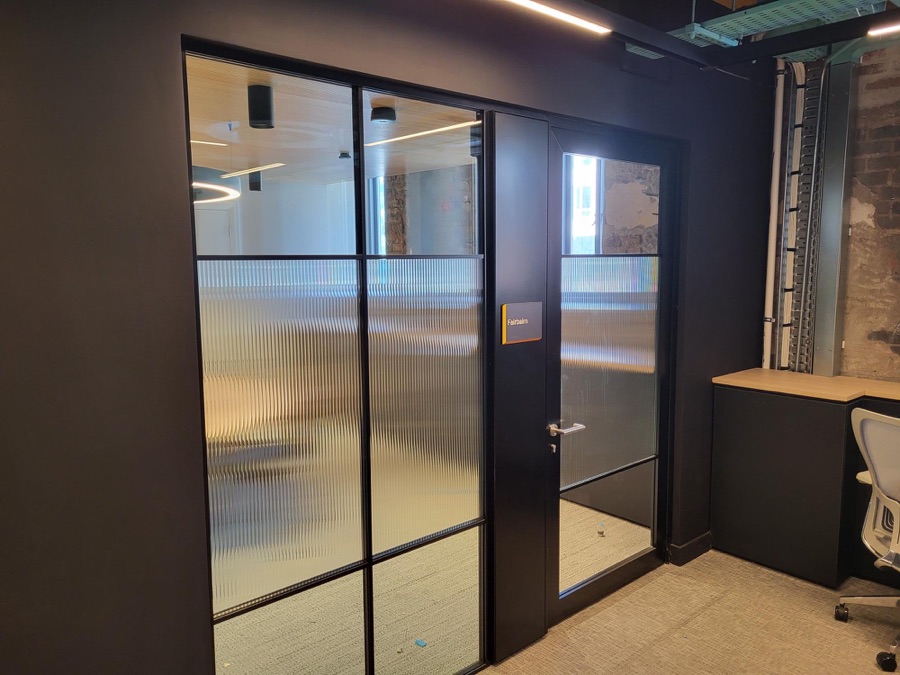

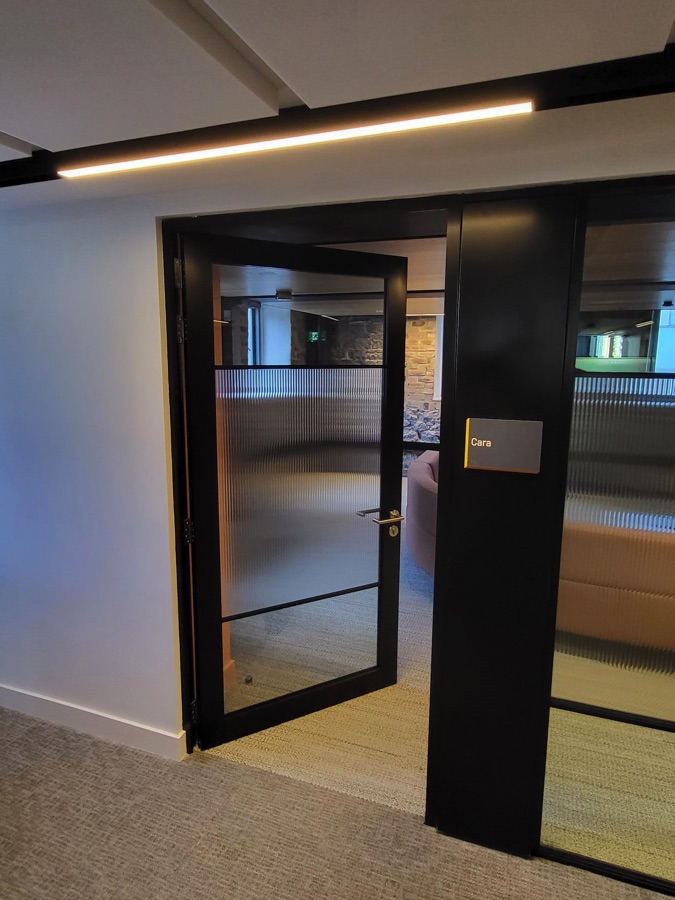

Quartz Gallery
