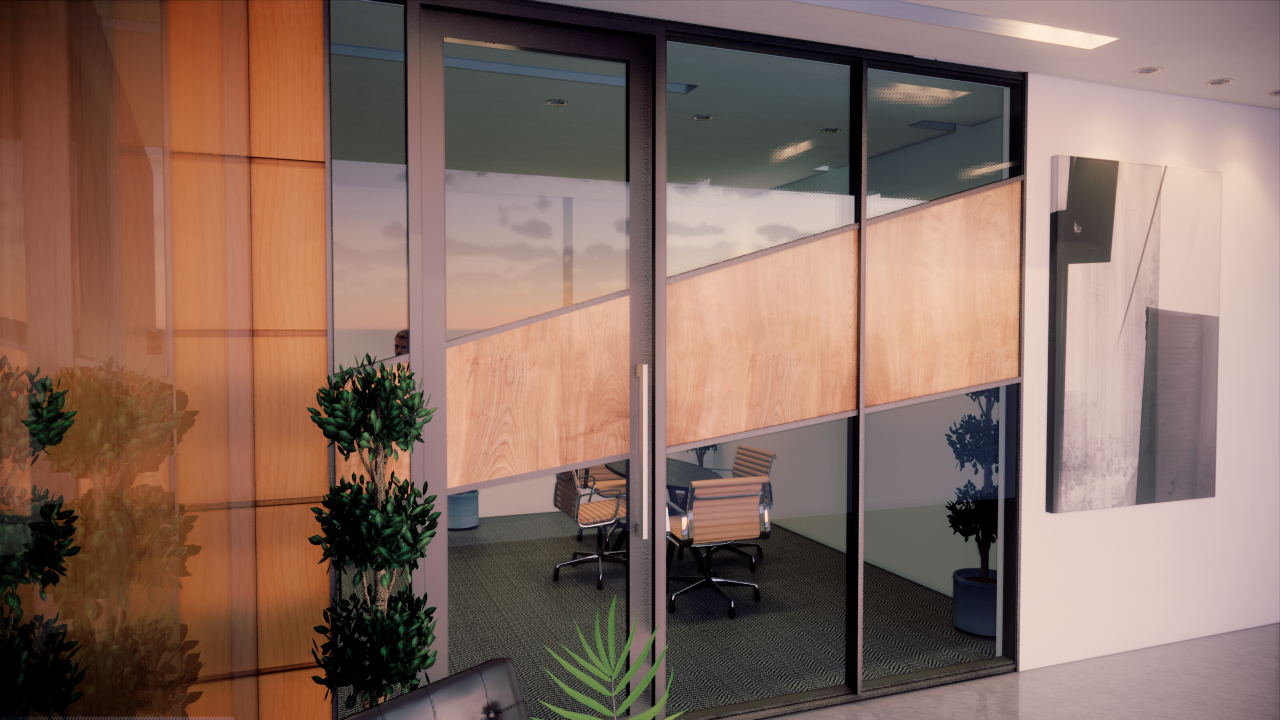

Quartz – Double Glazed Blend
Quartz Partitioning Information
Our 100mm double glazed Blend system, featuring integrated mullion posts and transoms, excels in providing a high acoustic resistance that fosters a calm and focused atmosphere.
Its seamless design facilitates a smooth transition between glass, timber and solid panels, offering limitless design options, creating a beautiful framed finish.
Compatible with:
- Blinds
- Manifestations
- Graphics
- SwitchGlass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartz Double Glazed Blend Partitioning Specification
Dimensions:
Height up to 4200mm
Track Width 100mm
Track Height 27mm/50mm
Acoustics:
Up to 55dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Aluminium Linear Joint
Corners:
Dry Joint
(90, 135 & T)
Deflection Head:
+/-12.5mm / +/-25mm
Door Options:
QuartzGlide
Timber Door
Glass Door

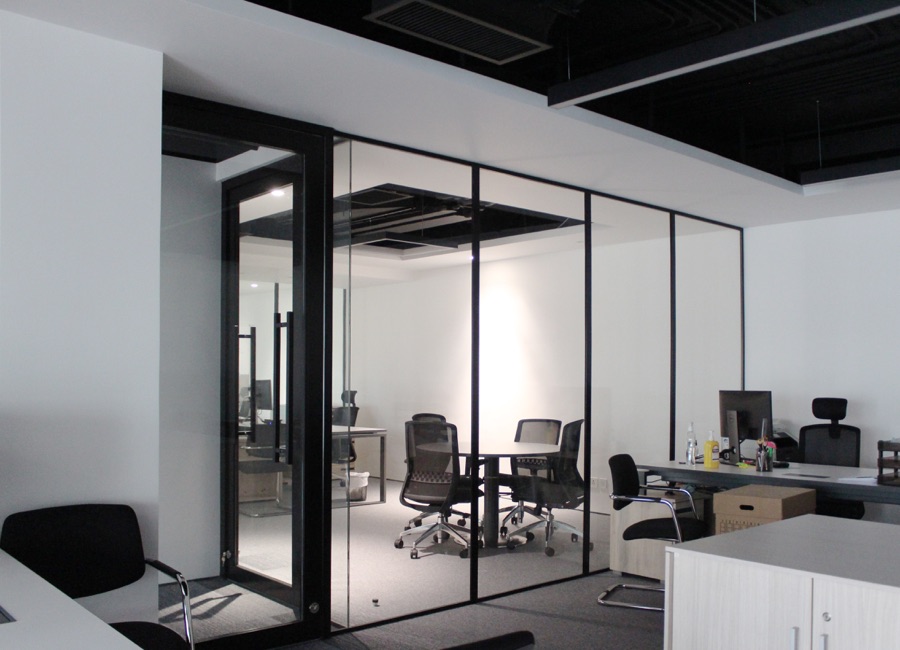

Stile Door
GDS Door

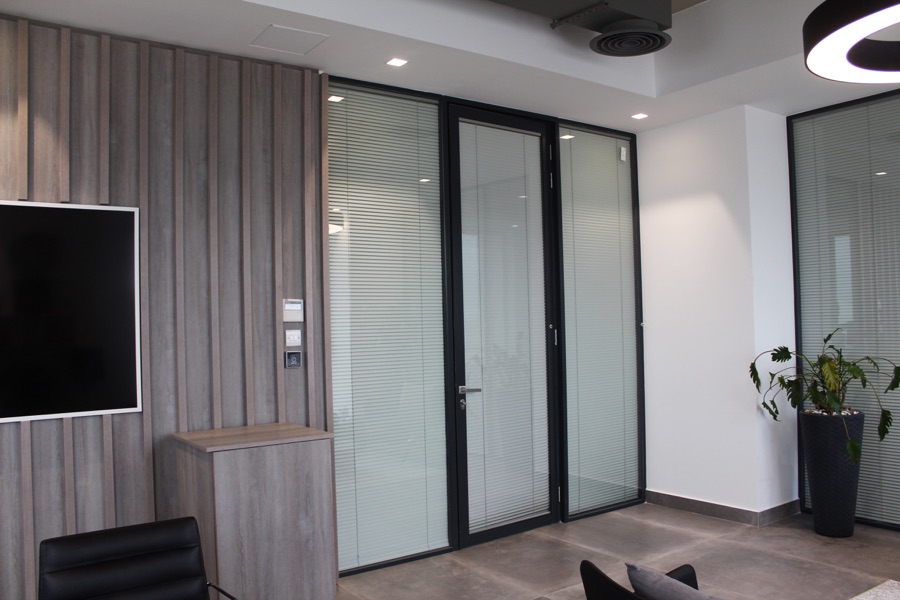

MK2
Profiles & Door Frame:
Aluminium
Ironmongery:
A wide range of ironmongery can
be supplied with Quartz.
Glass Type:
Toughened
Glass Thickness:
10 – 19mm
Options:
Manifestations
Graphics
Switch Glass
Blinds
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

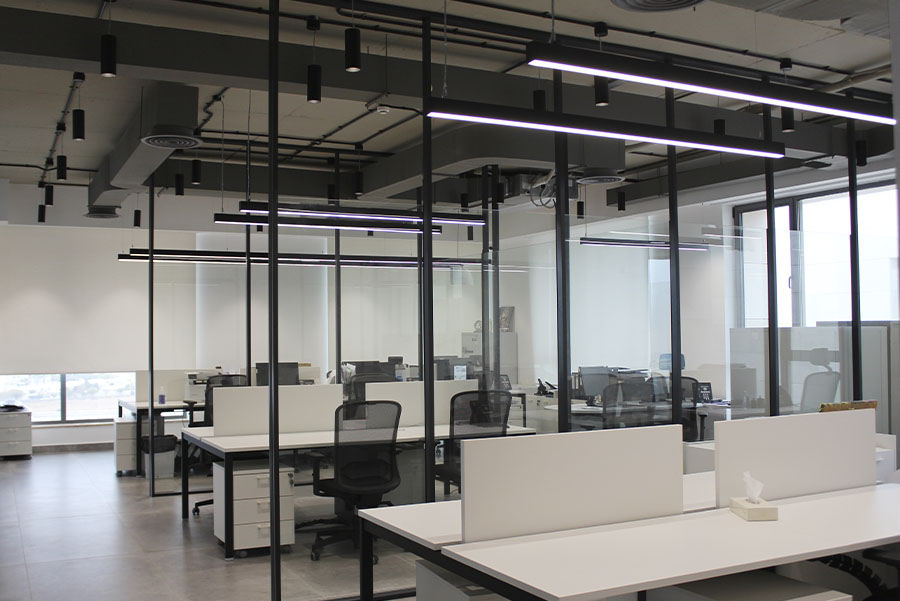

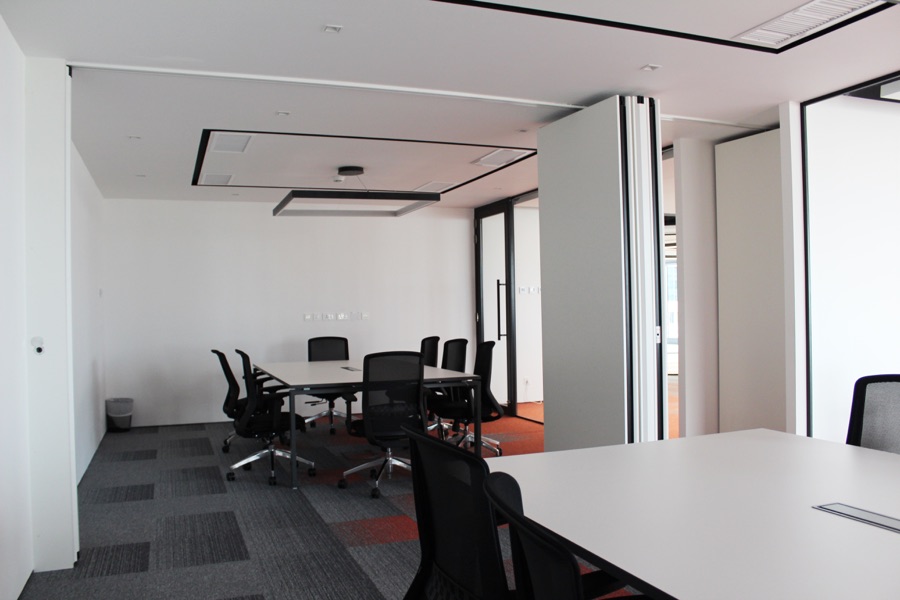

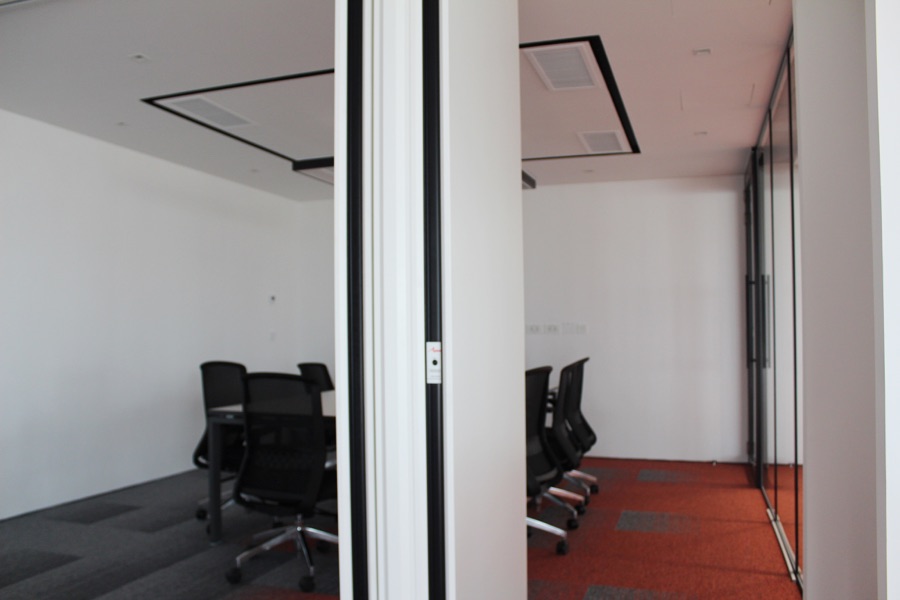

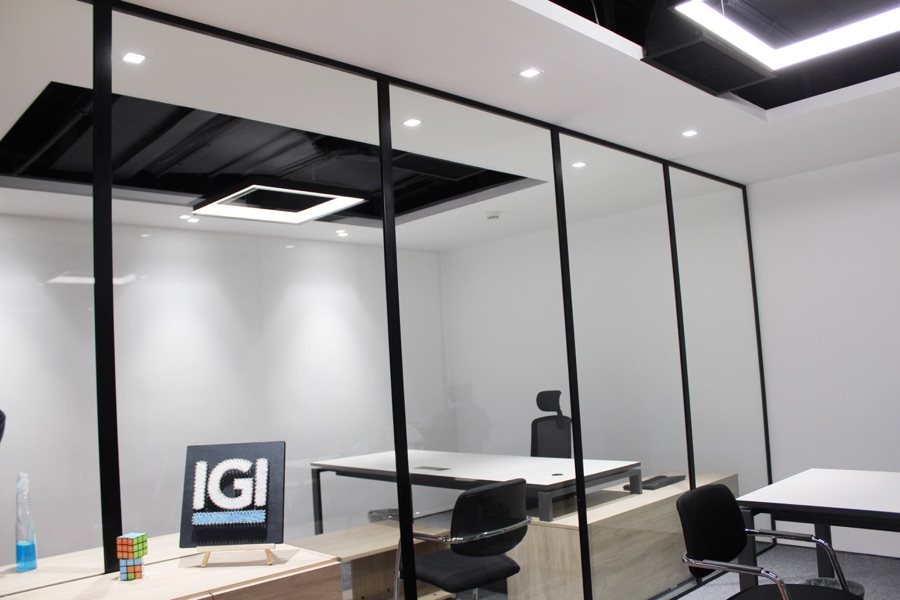

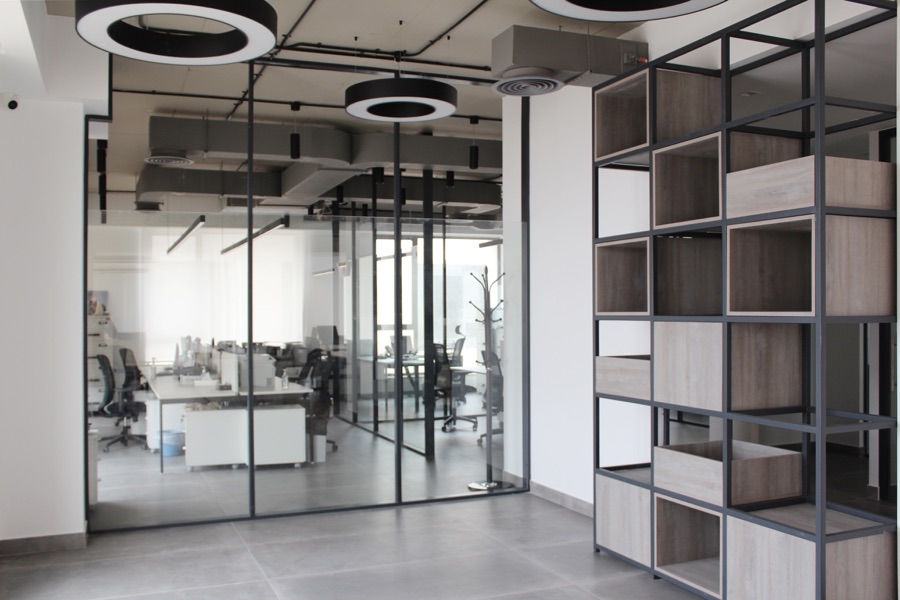

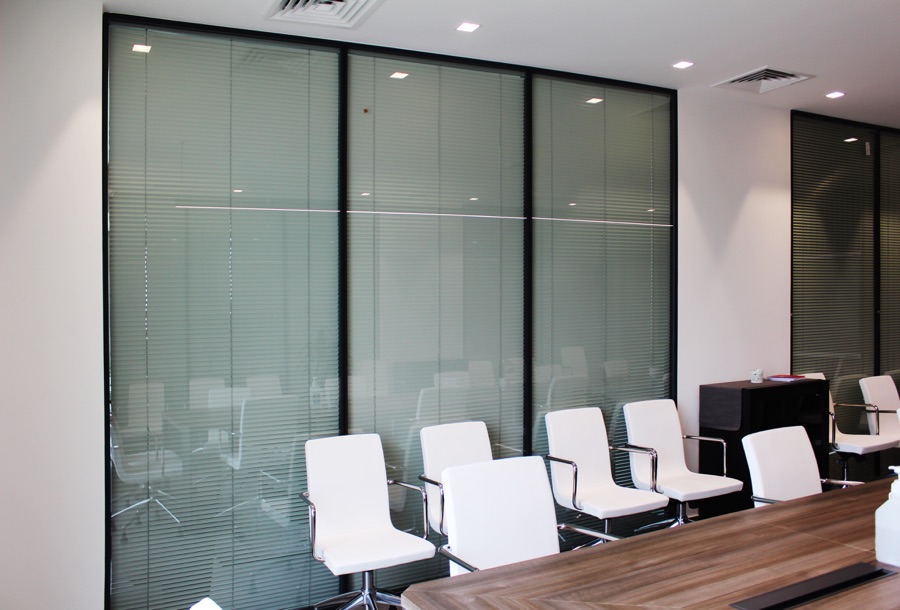

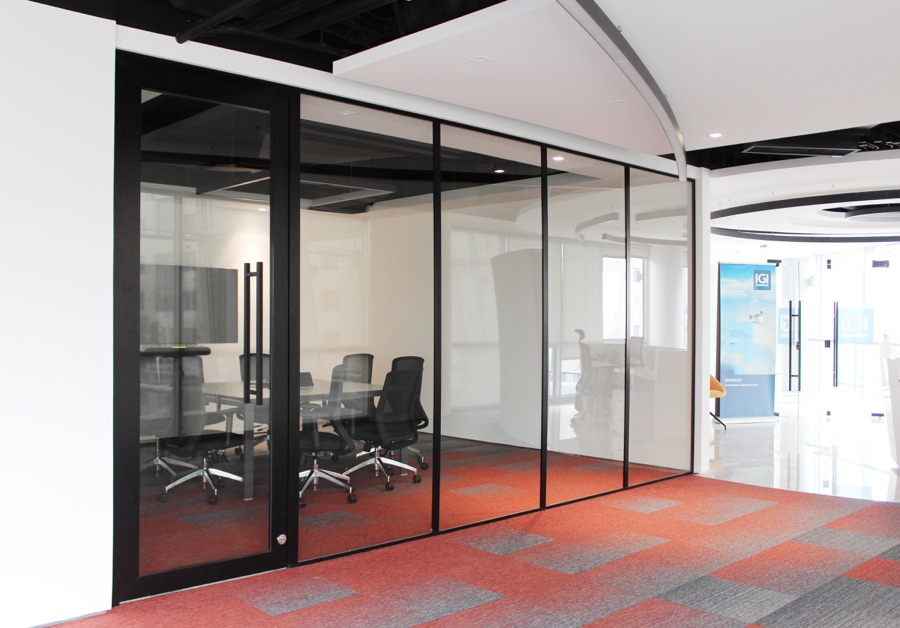

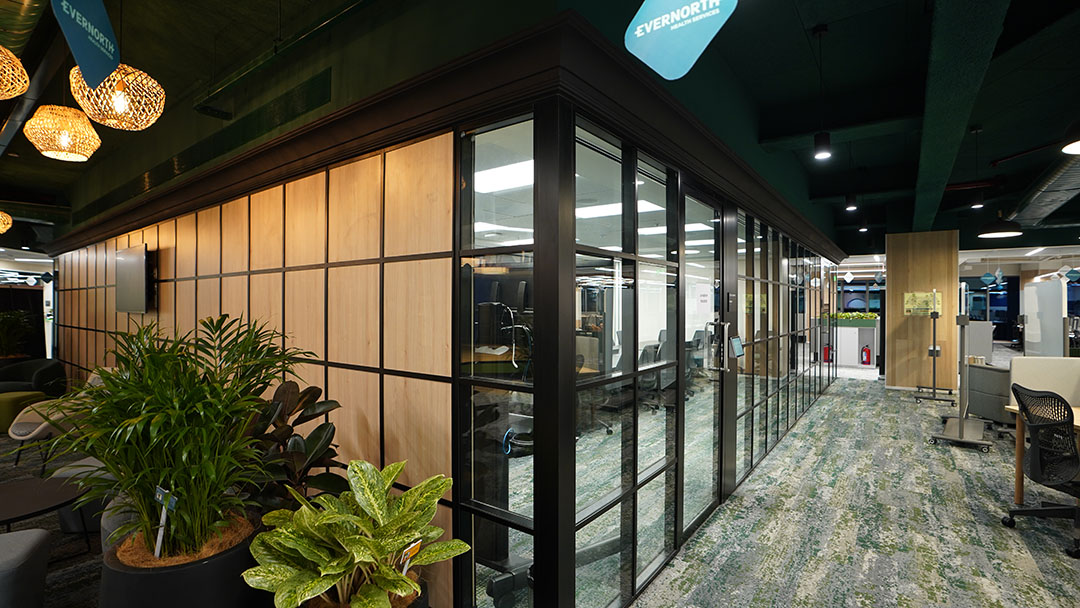

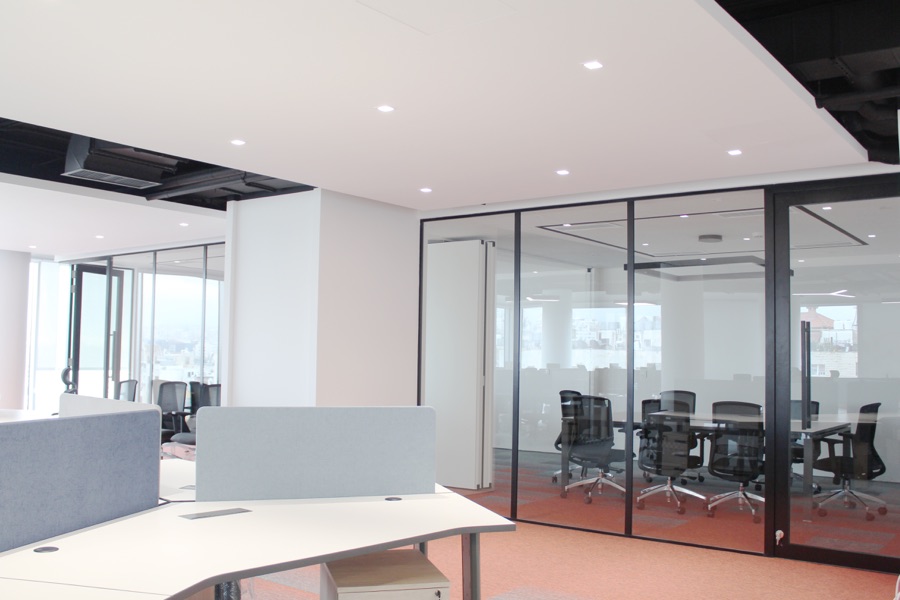

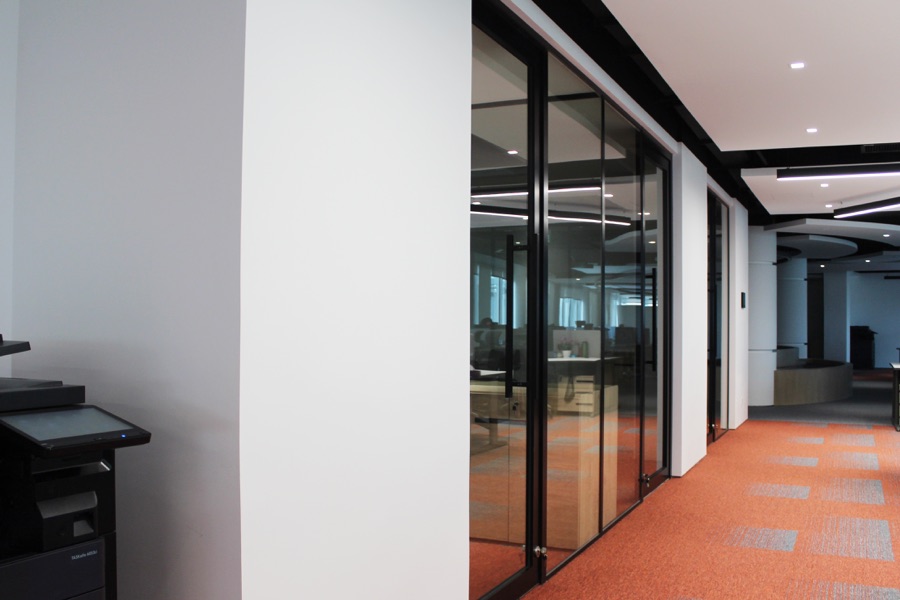

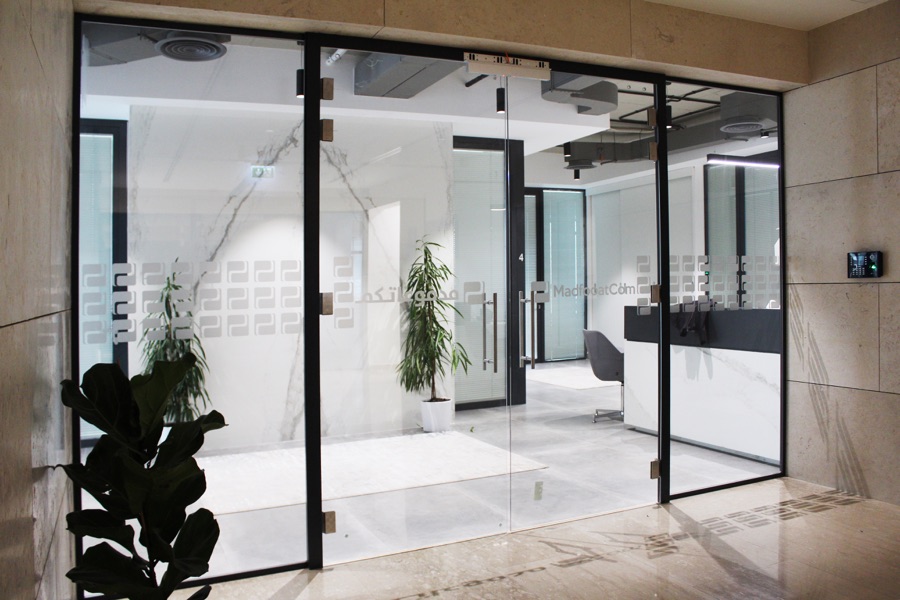

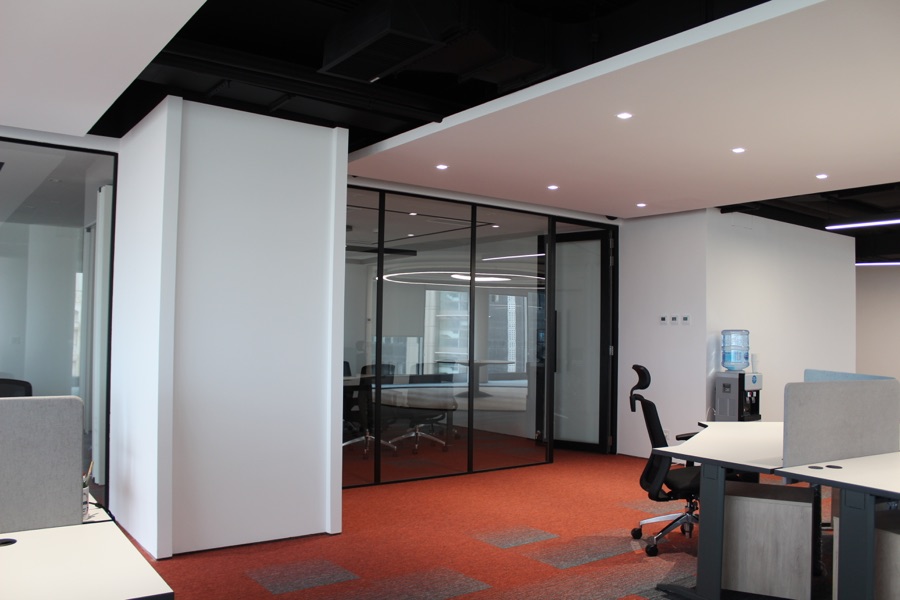

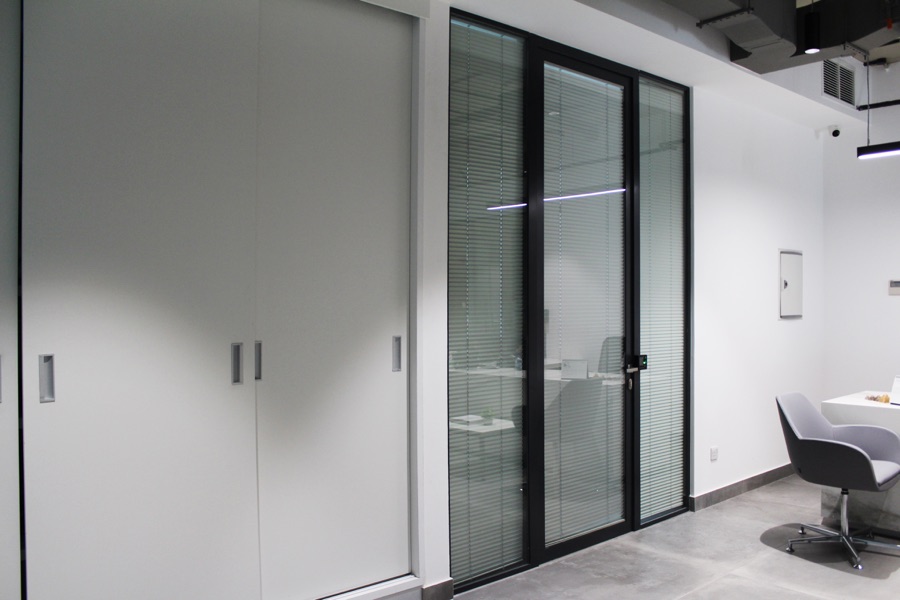

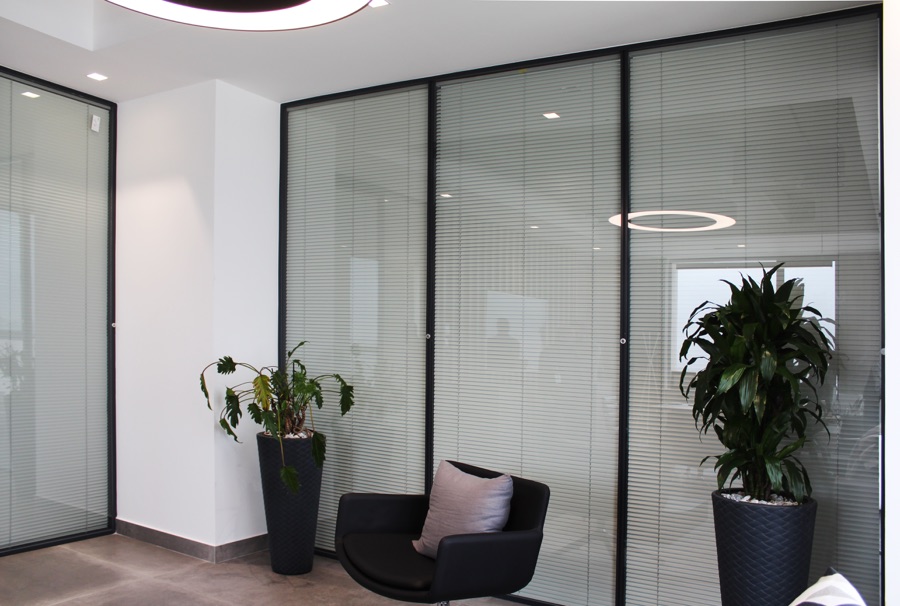

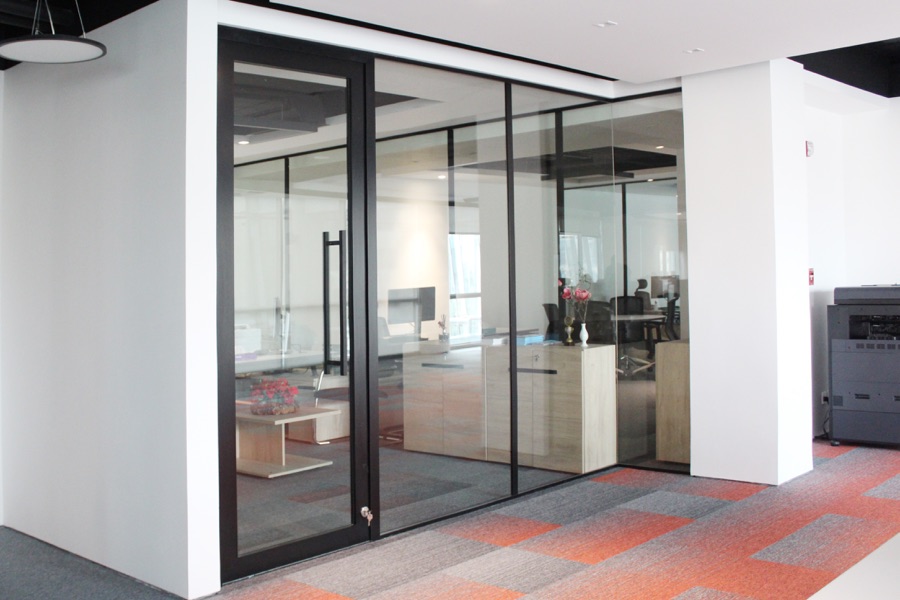

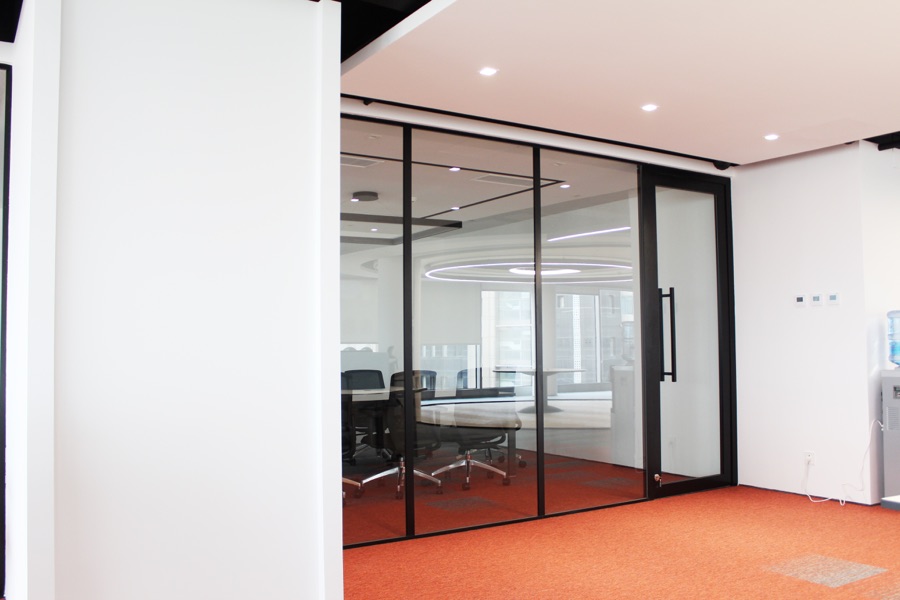

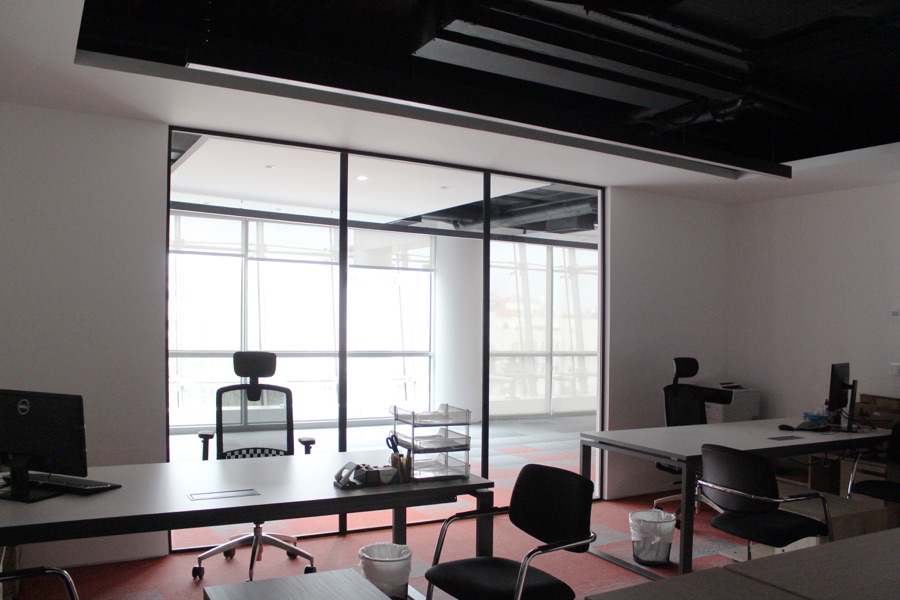

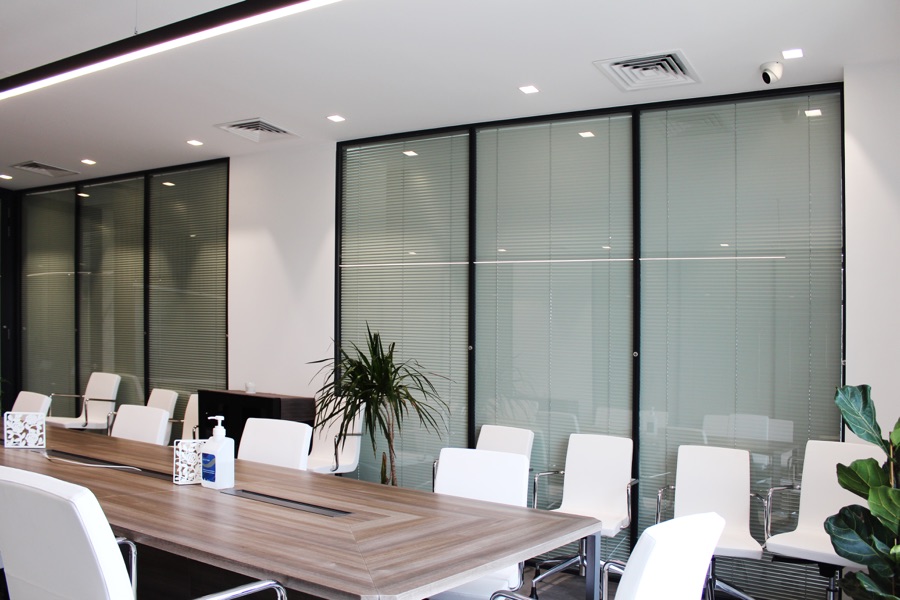

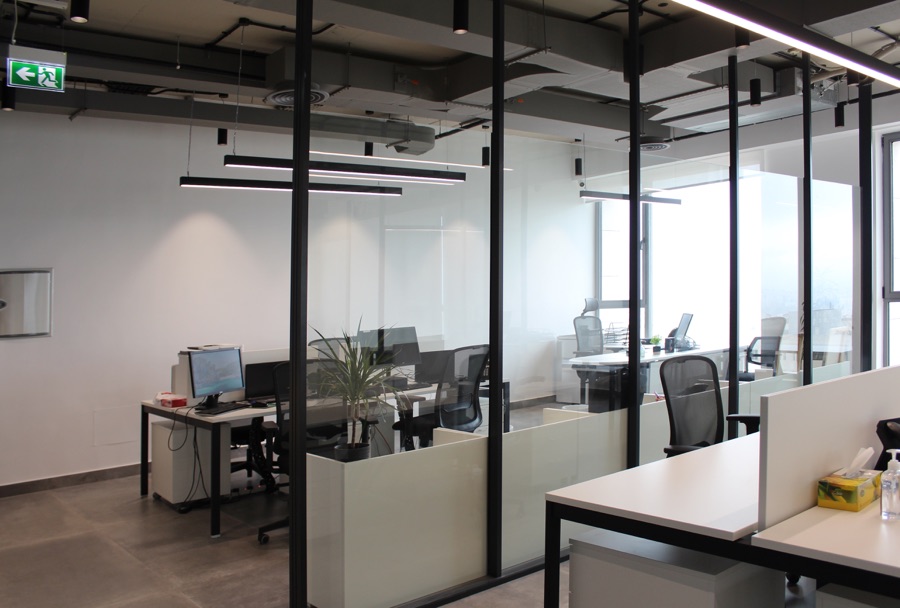

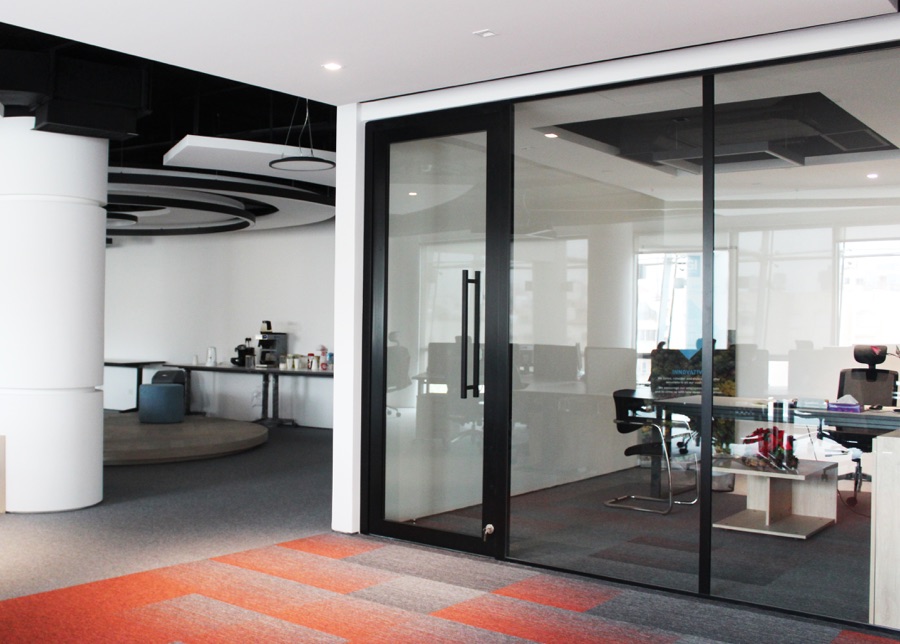

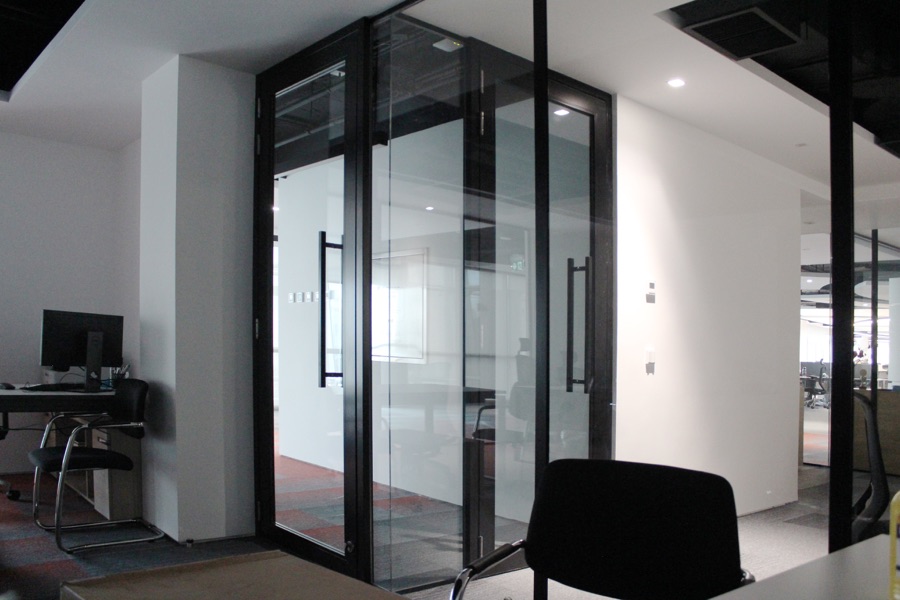

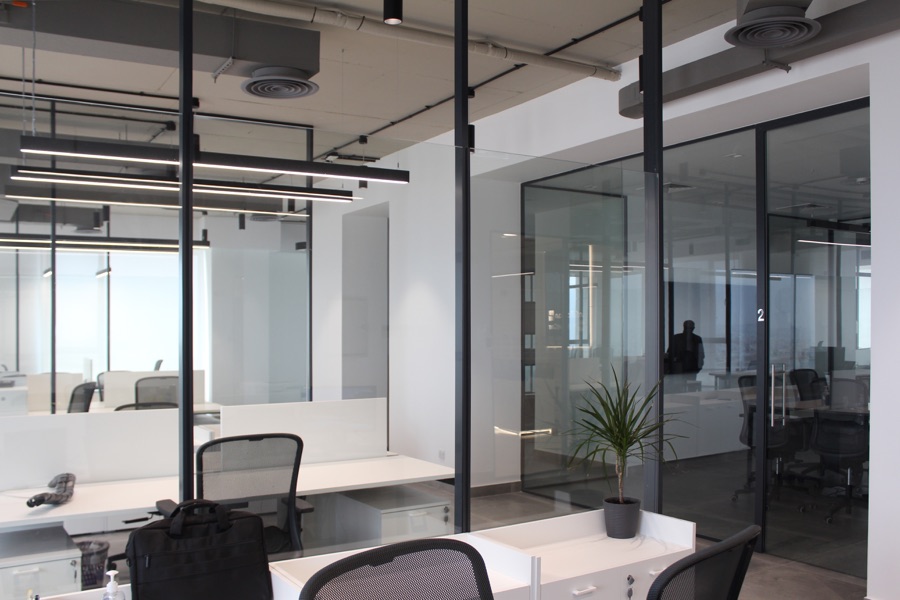

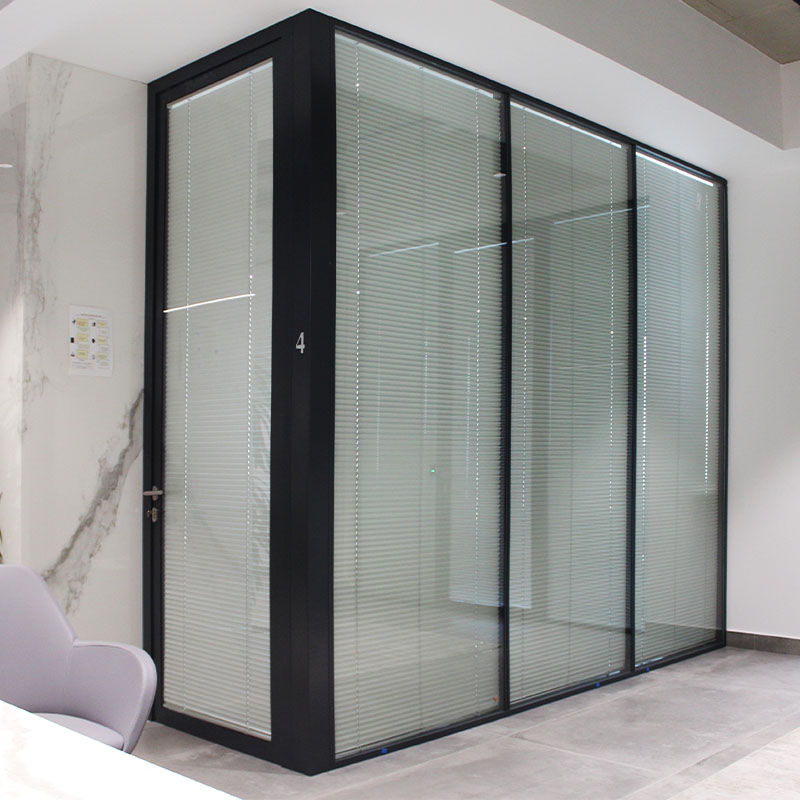

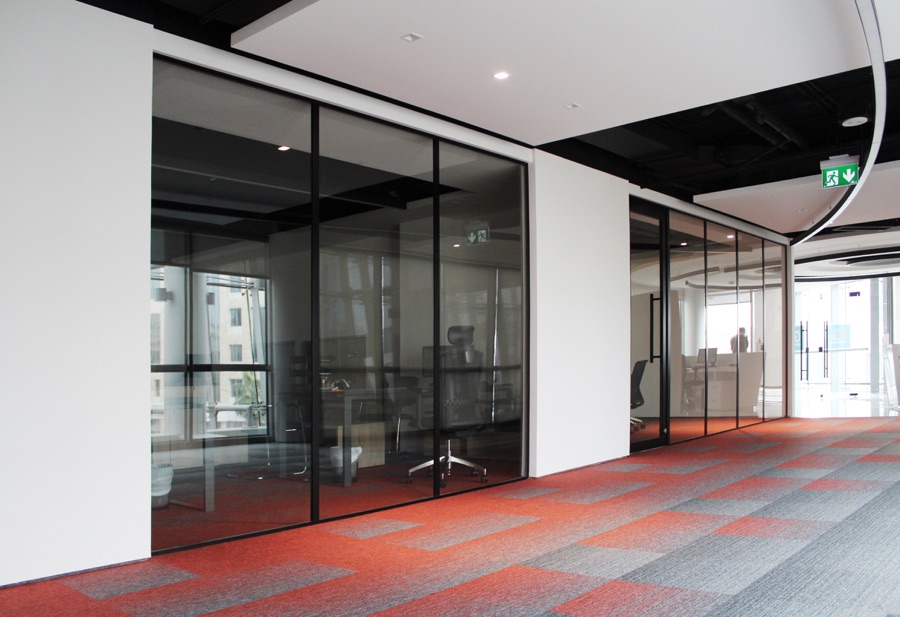

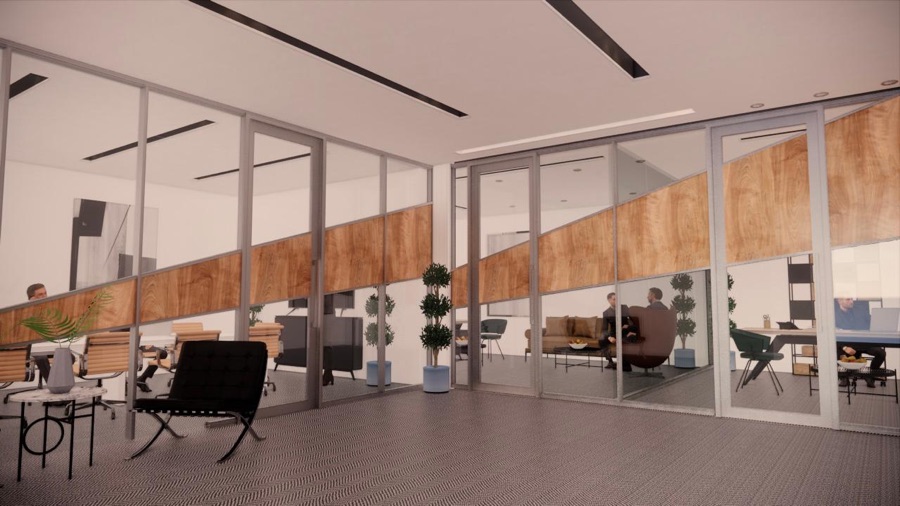

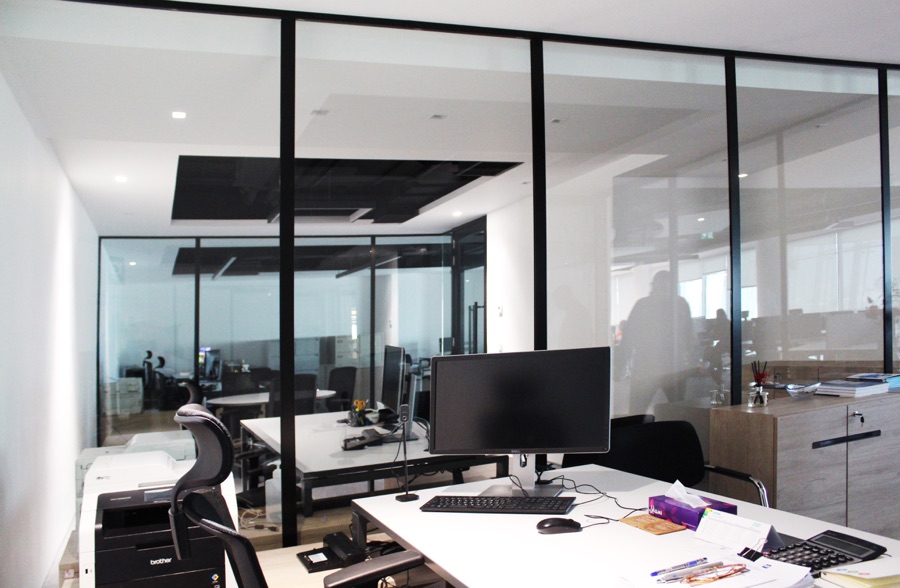

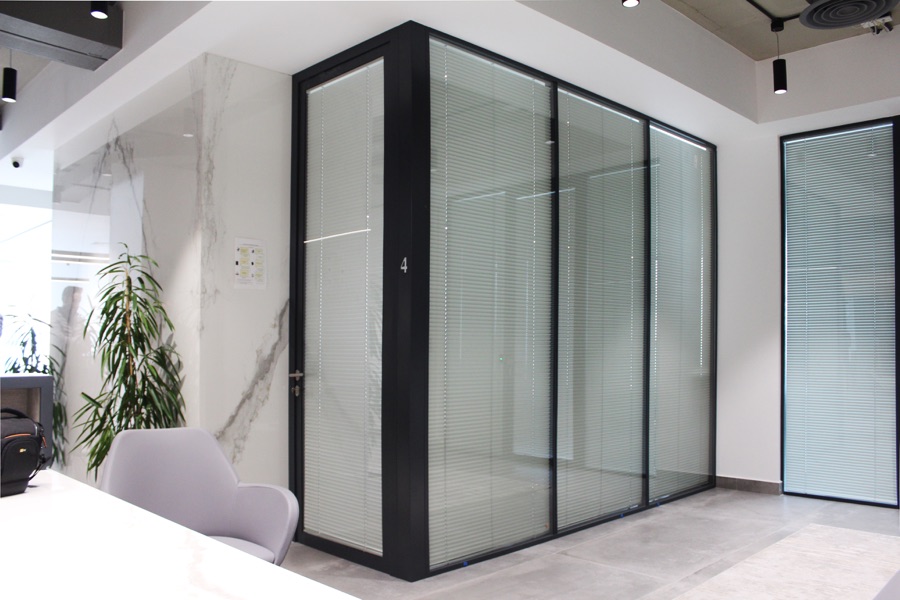

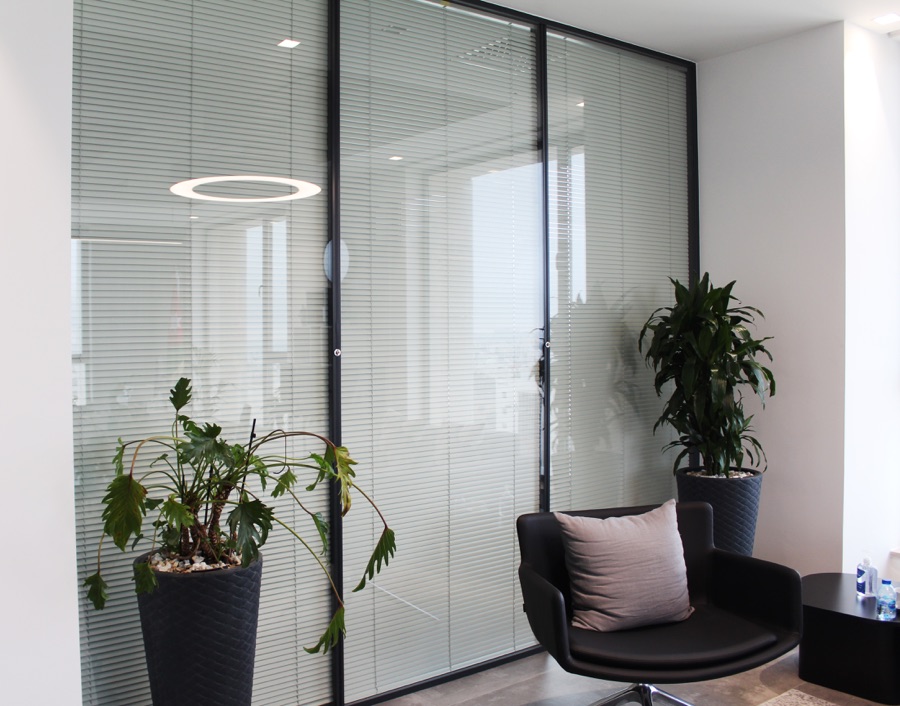

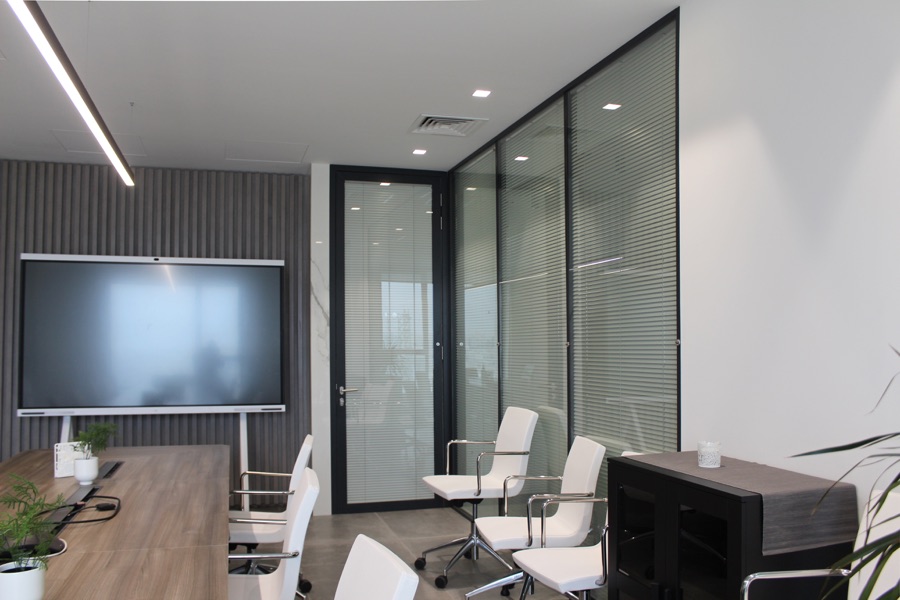

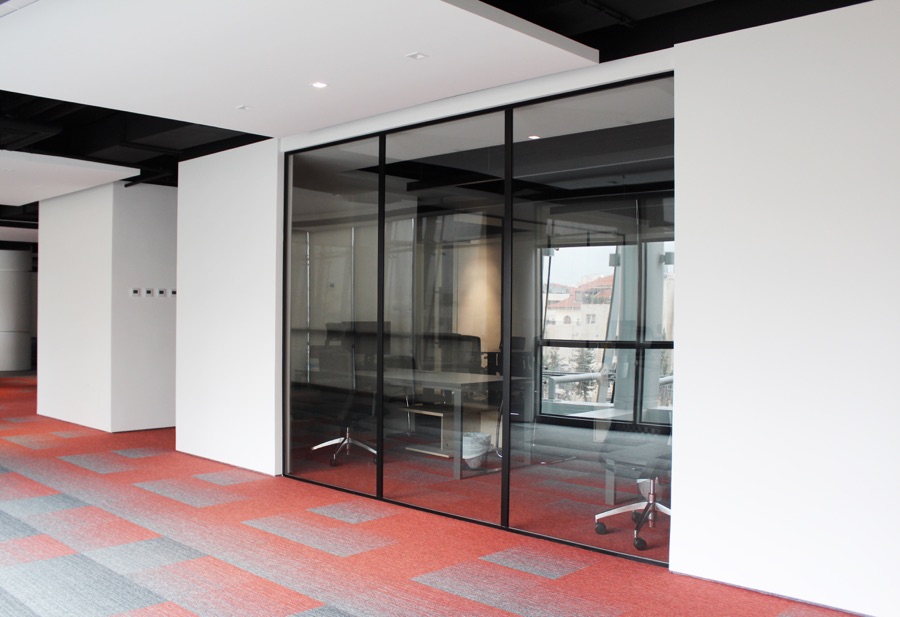

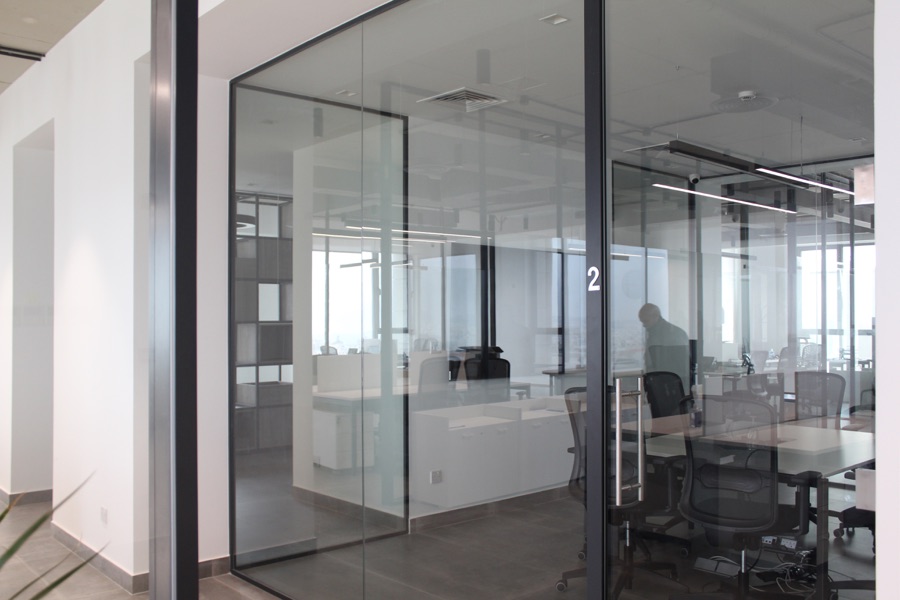

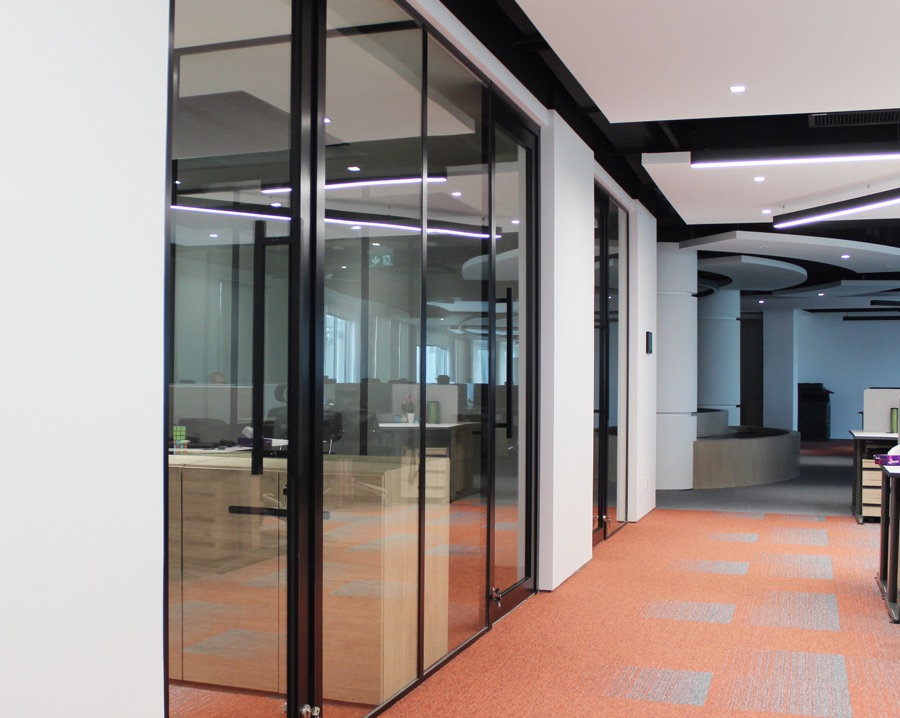

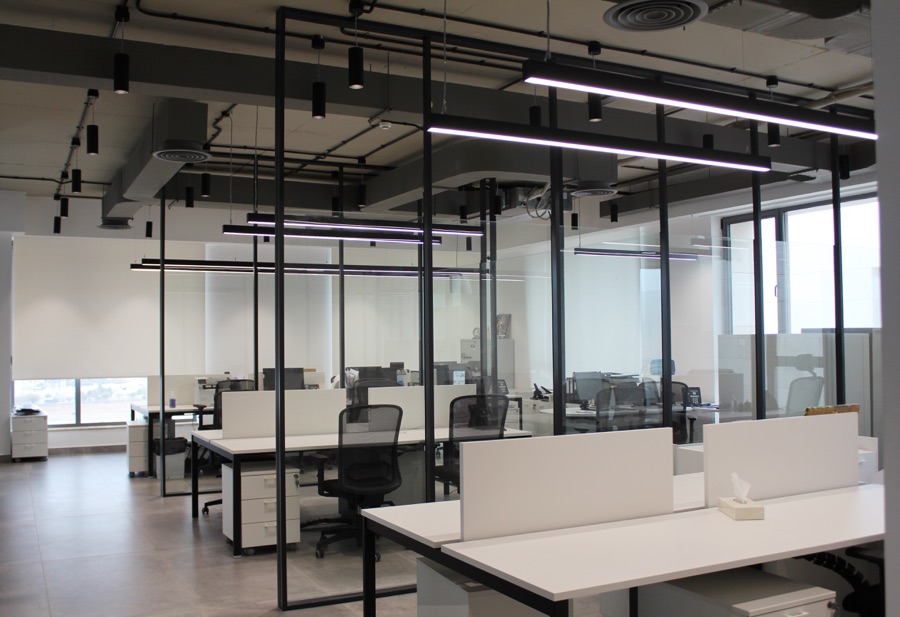

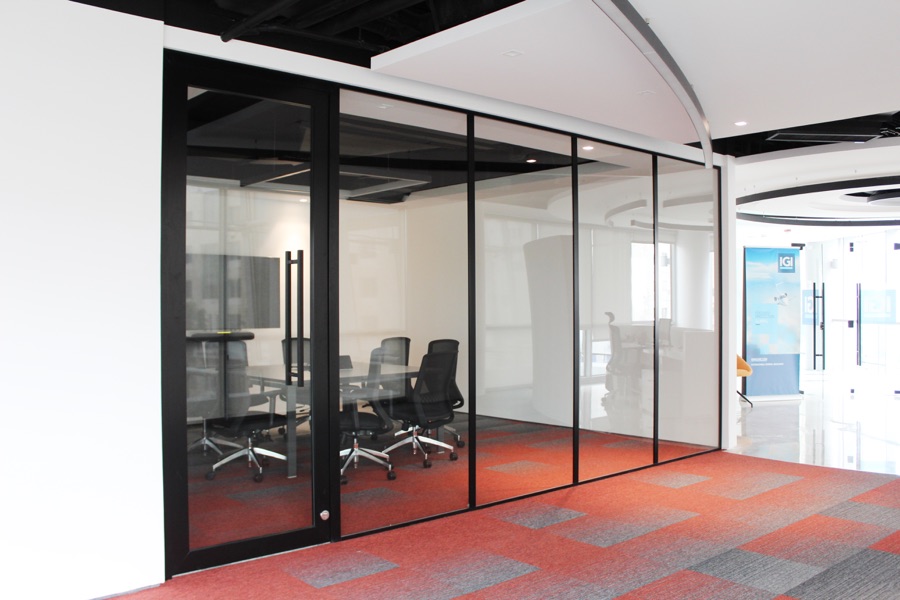

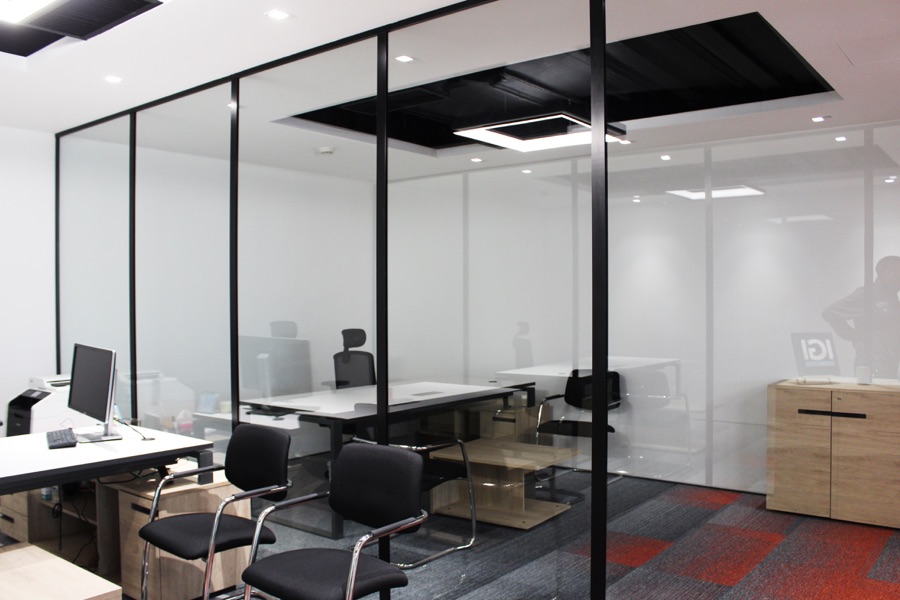

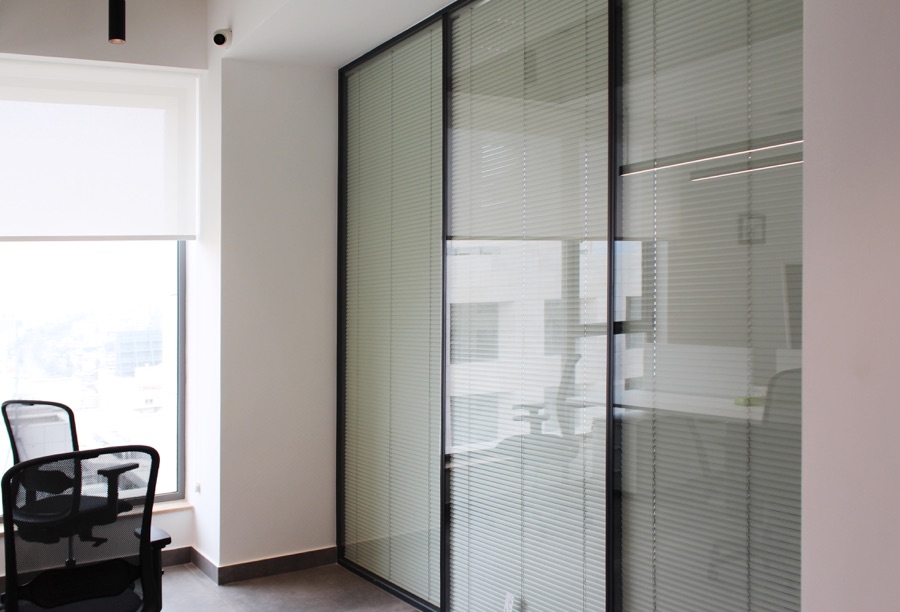

Quartz Blend Gallery
