Colourline

STEEL FRAMED MODULAR SYSTEM

Colourline

Home Framed Partitioning Colourline

Colourline Partitioning Information

Colourline is our demountable modular steel framed partition system supplied in either 75mm or 100mm that provides you with the ease of a simple and quick installation and a high performance. Featuring pre-glazed windows and pre-decorated plasterboard panels, no system could be more flexible or quicker to install due to its modular nature.

Designed for performance and flexibility, this steel framed partition system is ideal for office, commercial, and industrial environments. Its durable construction supports a range of configurations, including solid and glazed sections, allowing for tailored layouts that meet acoustic, and aesthetic requirements. With minimal disruption during installation and easy relocation, Colourline offers a long-term, adaptable solution for interior space division.

Engineered for straightforward installs, long-term durability, and the demands of real-world office environments.



Compatible with:

  • Blinds
  • Manifestations
  • Graphics
  • SwitchGlass

Paint Finishes:

  • Polyester Powder Coat

Colourline Framed Glass Partition Specification

Dimensions:
Height up to 4500mm
Track Width 75mm/100mm
Track Height 23mm

Acoustics:
Up to 43dB (Rw)

Structure:
BS5234, BS6180, BS6399

Joints:
Top Hat Trims
Contour Joint
Aluminium Trim

Corners:
Steel Corner / Aluminium

Deflection Head:
N/A

Door Options:
Timber Door
Glass Door
Stile Door
GDS Door
MK2

Profiles & Door Frame:
Steel

Ironmongery:
A wide range of ironmongery can
be supplied with Colourline.

Glass Type:
Toughened – Laminated

Glass Thickness:
6mm

Board Thickness:
12.5mm

Options:
Blinds
Manifestations
Graphics
Switch Glass

Finishes:
Polyester Powder Coat

British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

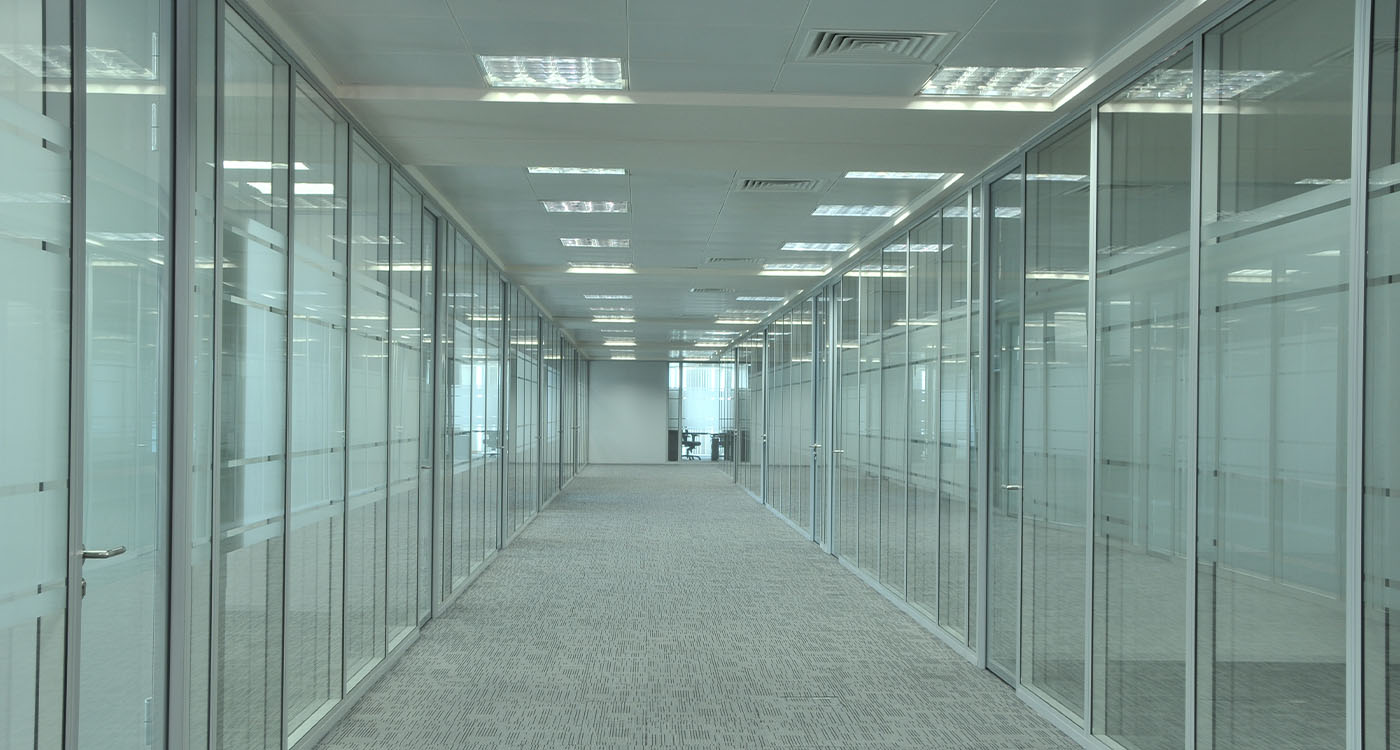

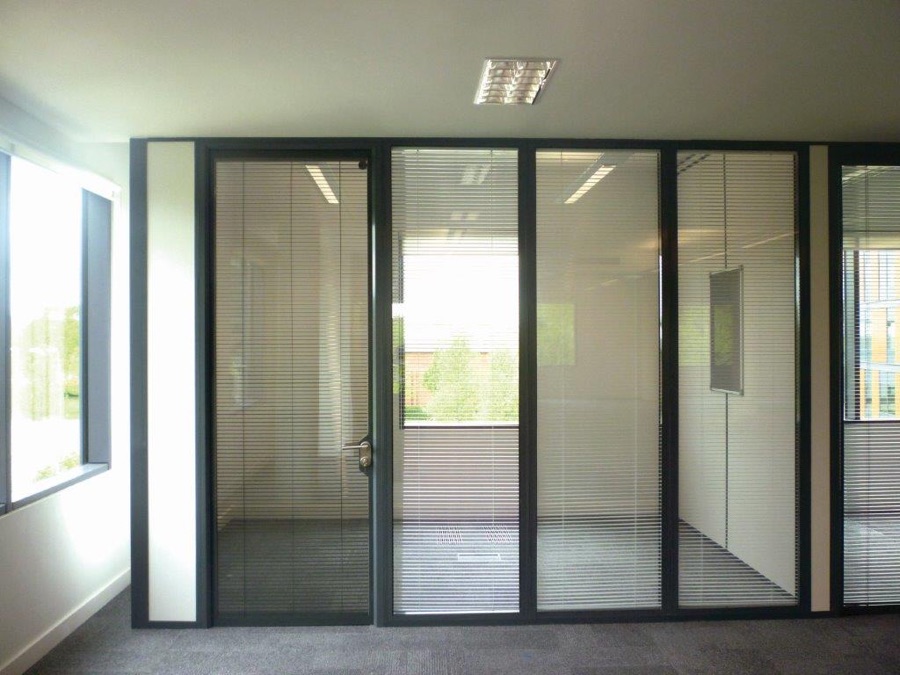

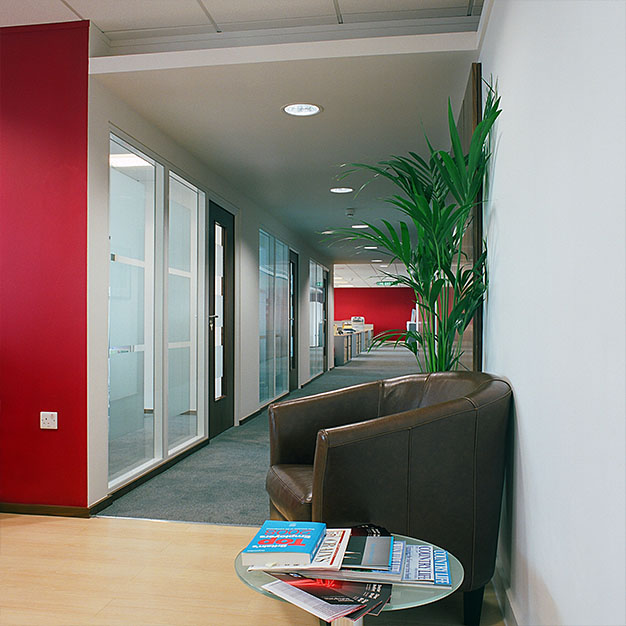

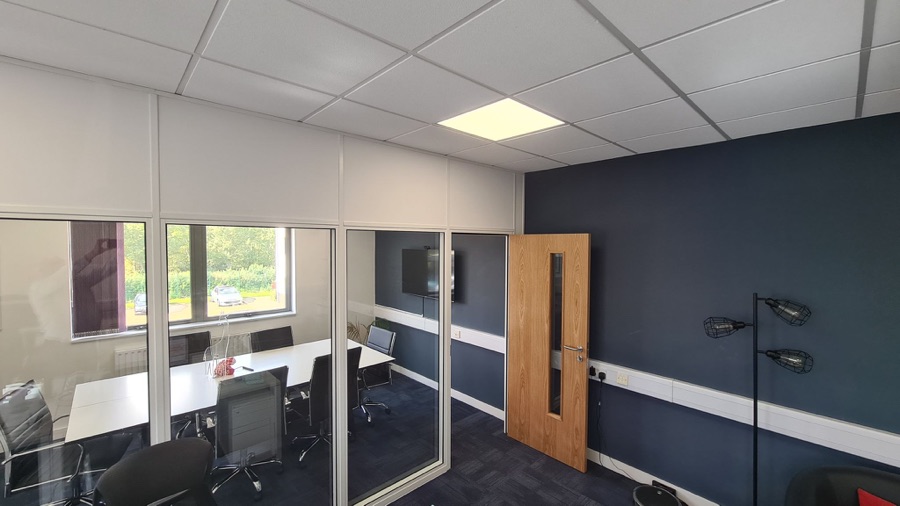

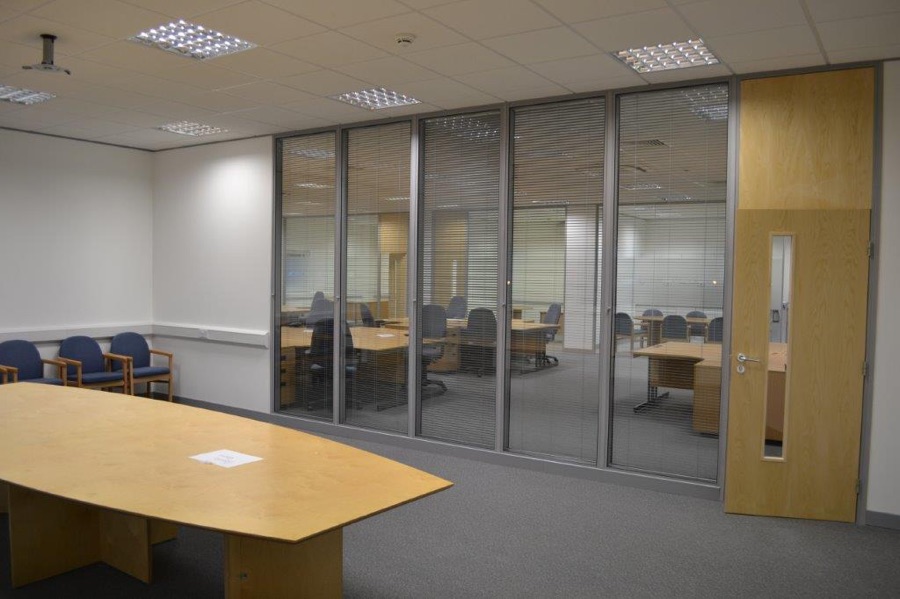

Colourline Gallery
