QS60 Fire Rated Glazed Partitioning
QS60 Fire Rated Frameless Glazed Partitioning
QS60 Partitioning Information
Our QS60 single glazed frameless partitioning system ensures a high level of protection, with the glass and track providing a fire-resistant rating of FR60/60. using fire resistant glass Pyrobel 25mm thickness European Fire Resistant Specification Class EI (Integrity and Insulation).
The system should be agreed by the relevant approving authorities as a part of the fire strategy for each project. FoA available upon request.
Compatible With:
- Manifestations
Paint Finishes:
- Powder Coat
QS60 Fire Rated Frameless Glazed Partitioning Specification
Dimensions:
Height up to 3000mm
Track Width 75mm
Track Height 63mm
Fire Ratings:
Glass FR60/60
Track FR60/60
Acoustics:
Up to 42dB (Rw)
Structure:
BS5234, BS6180, BS6399
Joints:
Ceramic Tape
Corners:
Steel Cladded Post
Deflection Head:
+/-12.5mm
Profiles & Door Frame:
Steel Profile
Glass Type:
Pyrobel Fire Glass
Glass Thickness:
25mm
Options:
Manifestations
Finishes:
Powder Coat
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

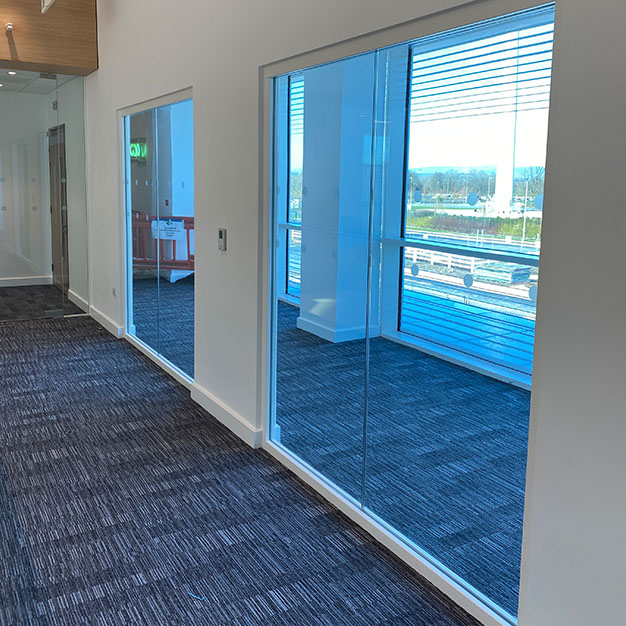

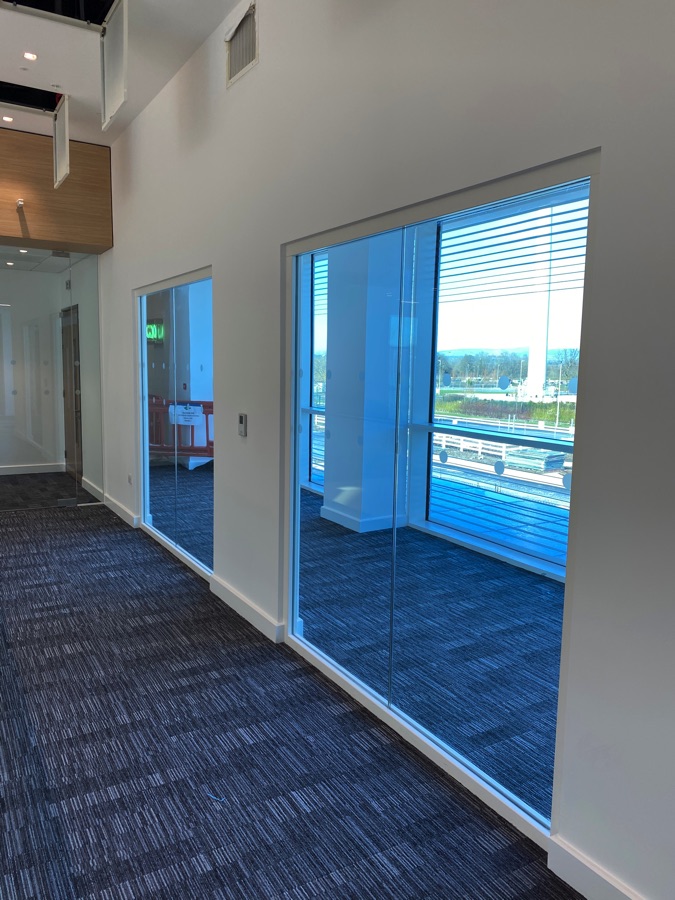

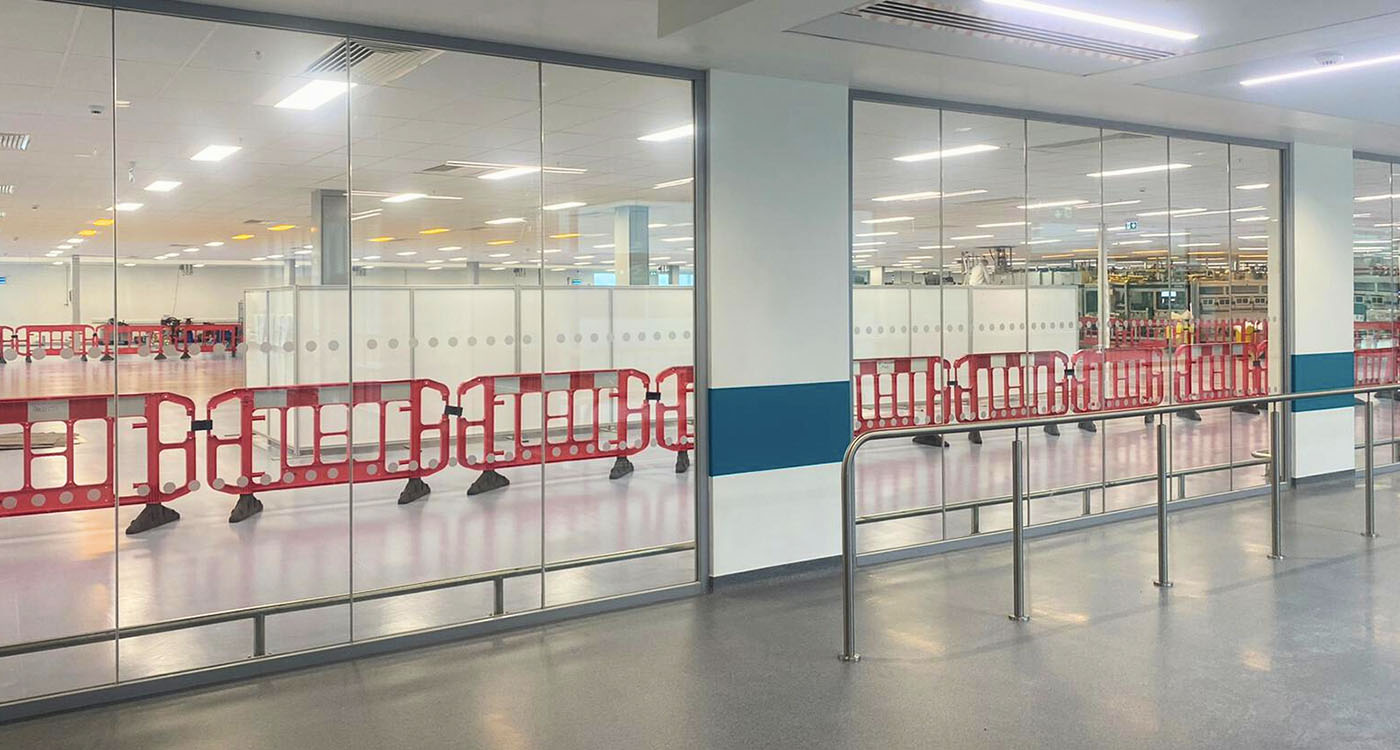

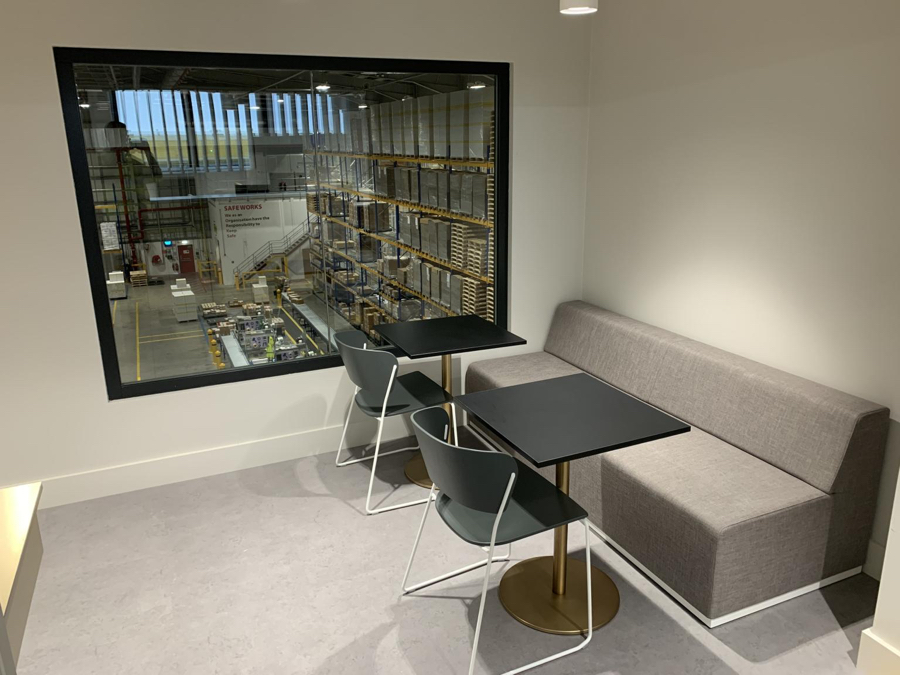

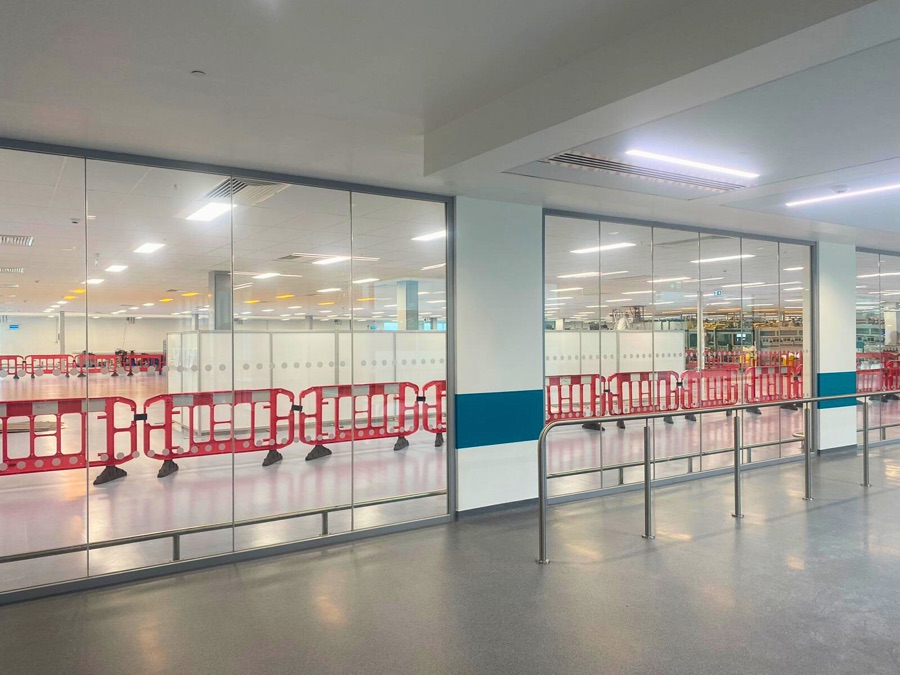

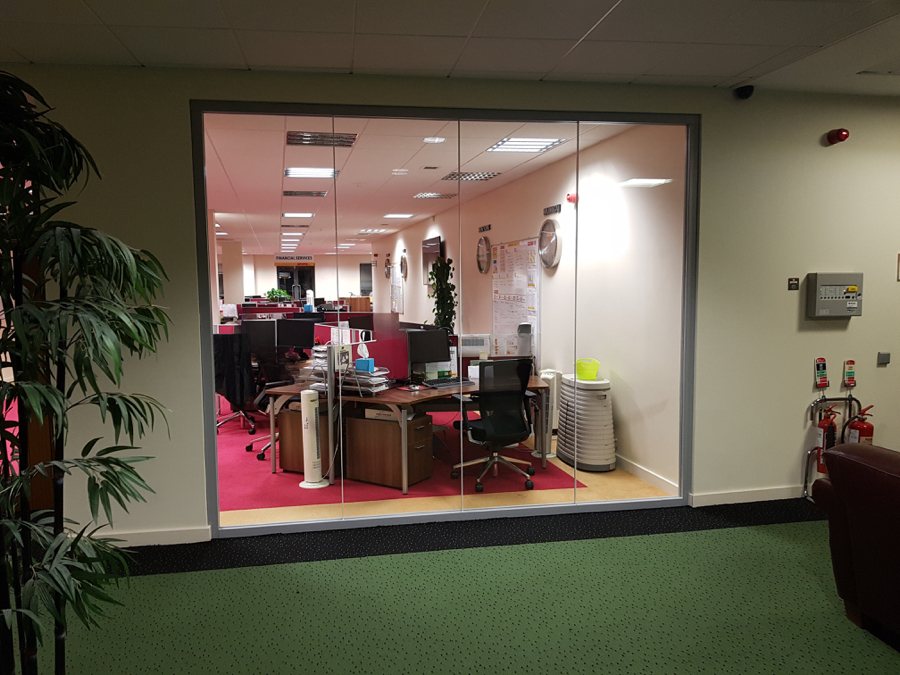

QS60 Fire Rated Gallery
