Quartzglide 4
ACOUSTIC POCKET SLIDING MK2 DOORS
Quartzglide 4 – Acoustic pocket sliding glass doors
Quartzglide 4 Door Information
QuartzGlide 4 delivers exceptional acoustic resistance and a premium performance to workspaces around the world. Designed to incorporate our MK2 aluminium framed double glazed acoustic door, this system excels in both functionality and style, offering a smooth sliding function alongside top notch acoustic properties.
Compatible With:
- Manifestations
- Graphics
- Switch Glass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
Quartzglide 4 – Acoustic pocket sliding MK2 doors Specification
Dimensions:
Height up to 3000mm
Thickness:
44mm
Fire Ratings:
N/A
Acoustics:
Up to 39dB (Rw)
Structure:
BS5234, BS6180, BS6399
Profiles:
70mm x 44mm Aluminium Profiles
Ironmongery:
A wide range of ironmongery
can be supplied
Glass Type:
Toughened – Laminated
Glass Thickness:
6mm – 10mm
Options:
Manifestations
Graphics
Switch Glass
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

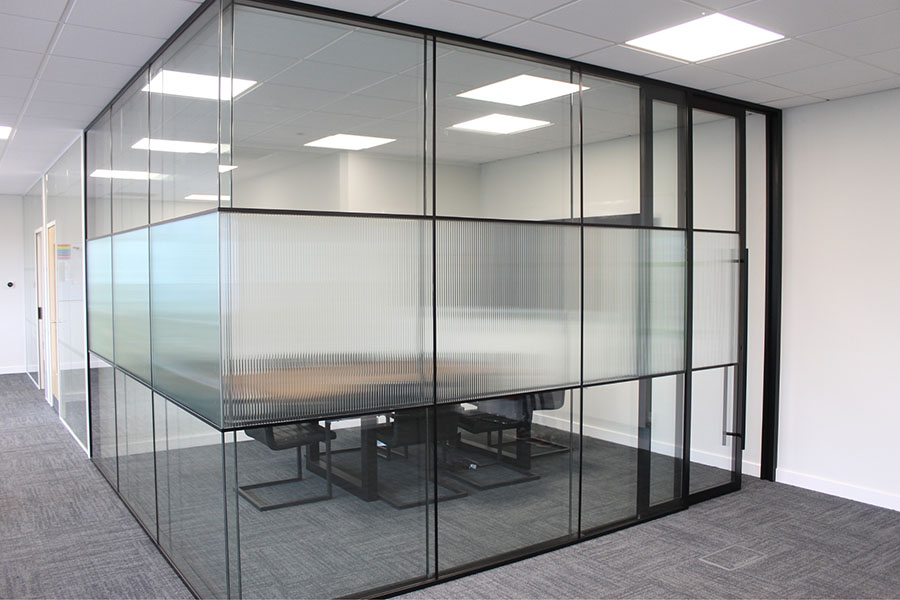

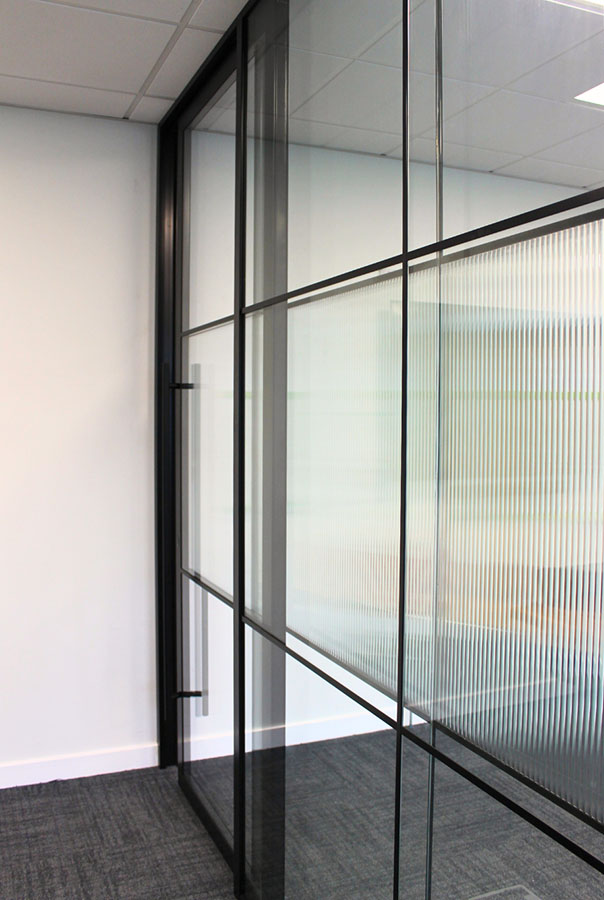

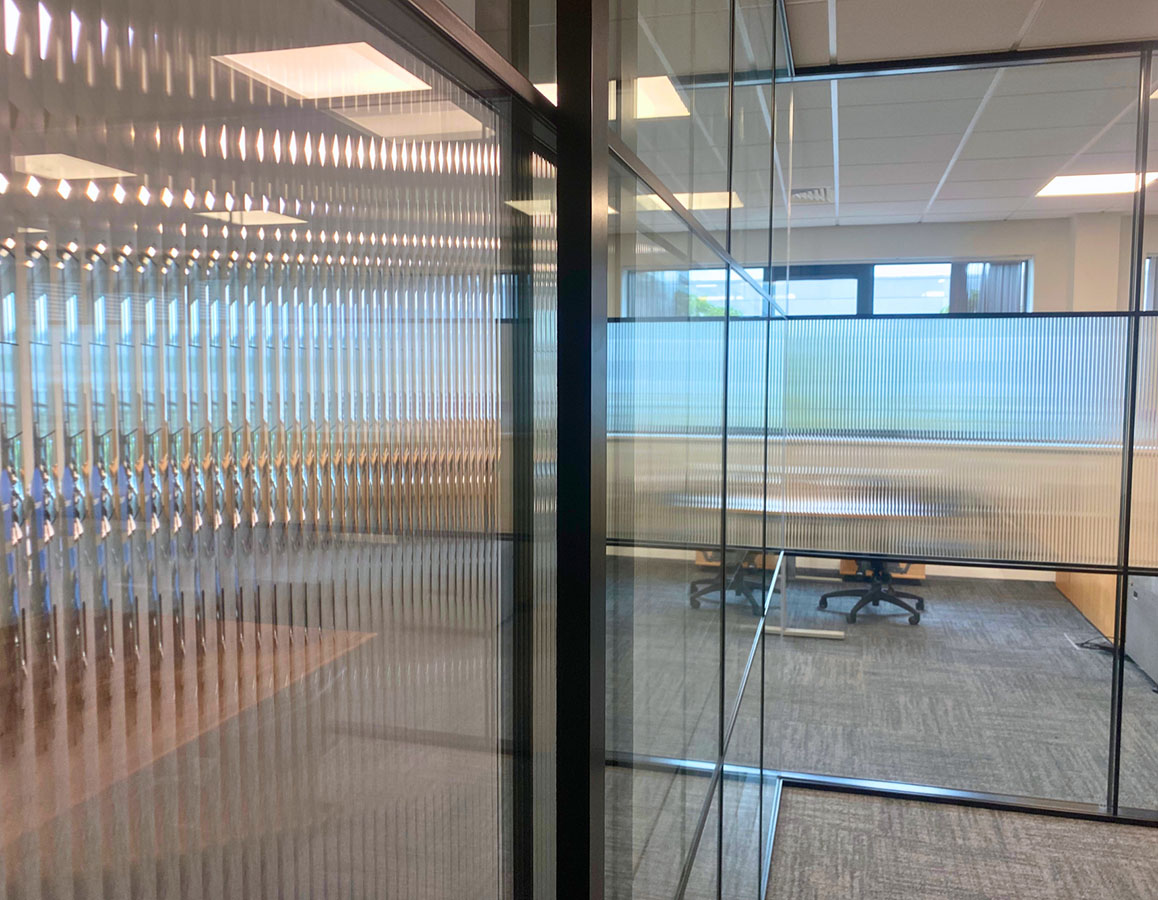

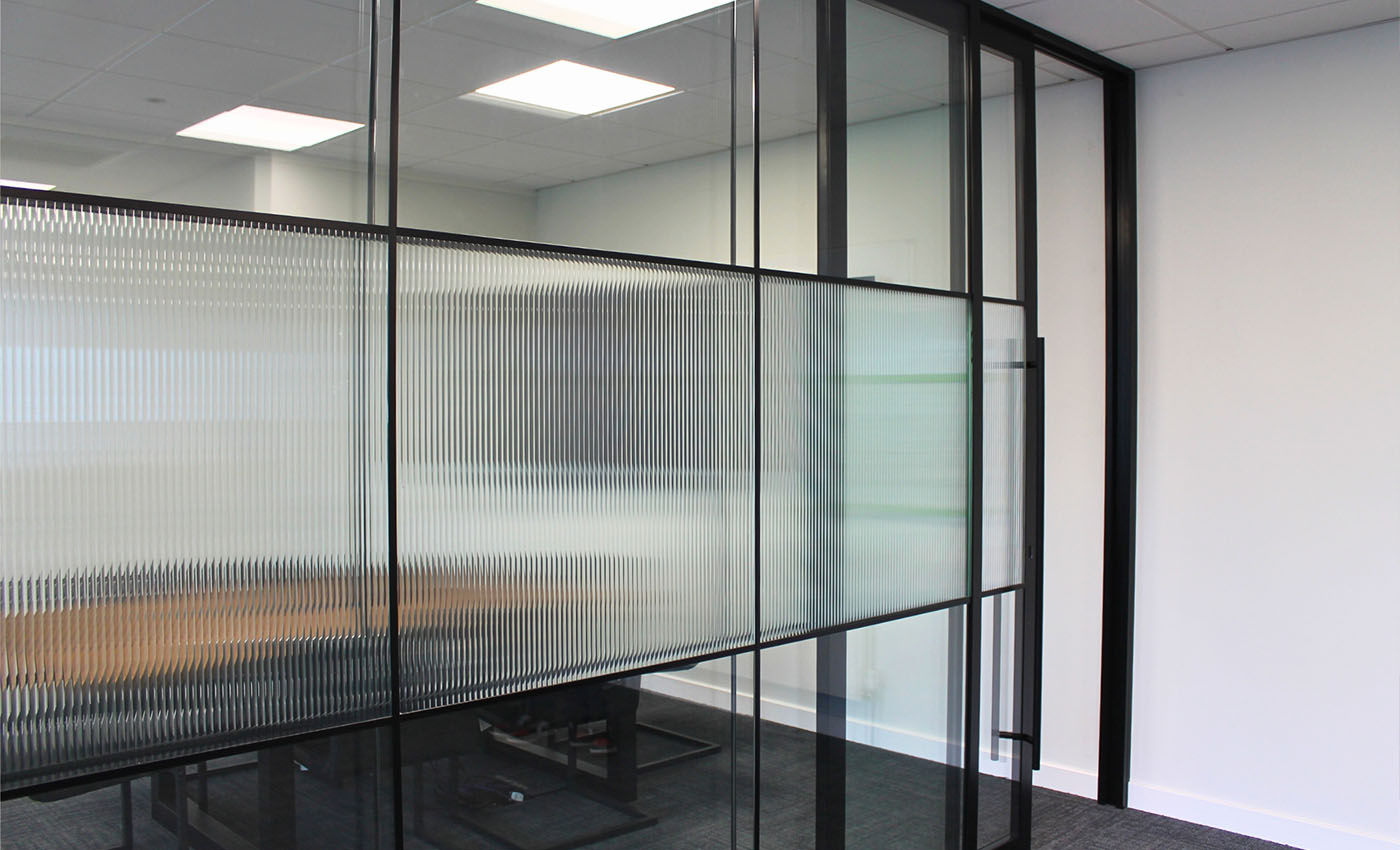

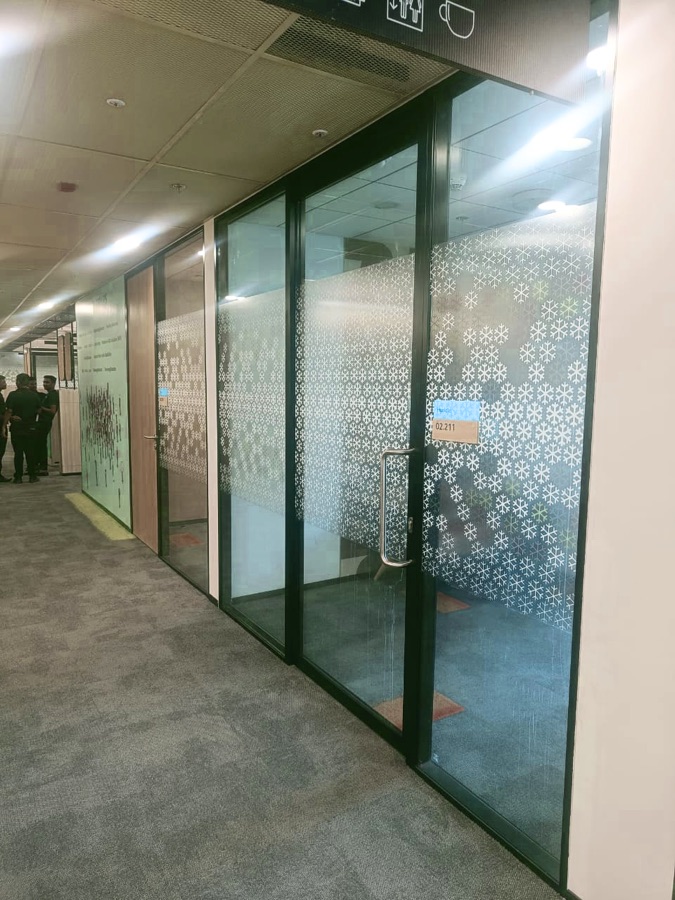

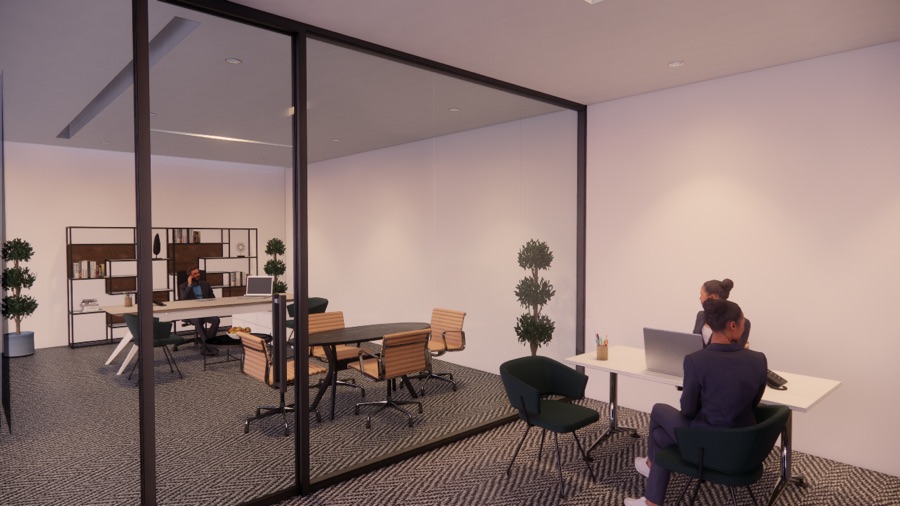

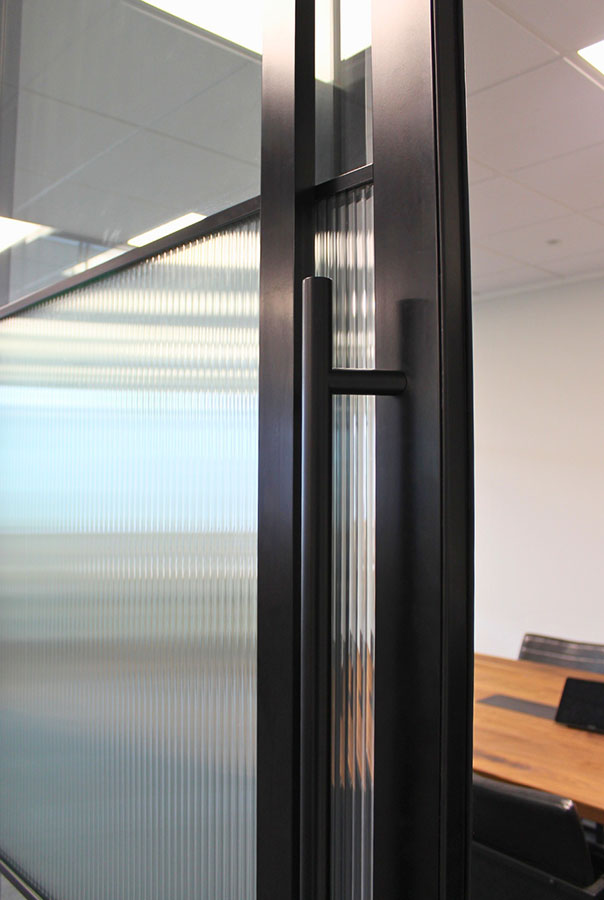

Quartzglide Gallery
