MK1
Aluminium framed single glazed acoustic door

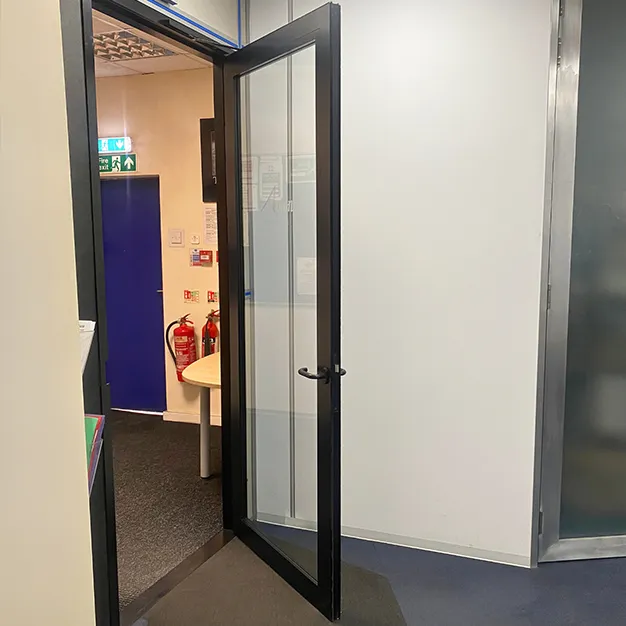

MK1 – Aluminium framed single glazed acoustic door
MK1 Door Information
A high performing single glazed acoustic glass door, our MK1 features a 100mm x 44mm frame with the glass being centrally glazed. Like all of our acoustic glass doors, the MK1 is supplied factory-fitted with a drop down seal and is available in a range of finishes. It can be supplied with either hinges and an overhead door closer or offset pivots and a floor spring
Compatible With:
- Manifestations
- Graphics
- Switch Glass
- Aluminium Banding
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
MK1 – Aluminium framed single glazed acoustic door
Dimensions:
Height up to 3000mm
Height up to 3000mm
Thickness:
44mm
Fire Ratings:
N/A
Acoustics:
Up to 39dB (Rw)
Structure:
BS5234, BS6180, BS6399
BS5234, BS6180, BS6399
Profiles:
100mm x 44mm Aluminium Profiles
Ironmongery:
A wide range of ironmongery
can be supplied
Glass Type:
Toughened / Laminated
Glass Thickness:
10mm – 12.8mm
10mm – 12.8mm
Options:
Manifestations
Graphics
Switch Glass
Aluminium Banding
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

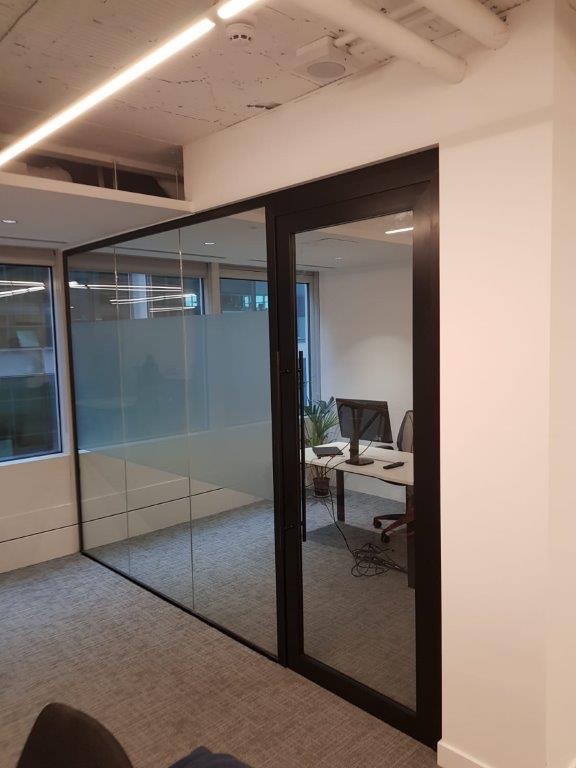

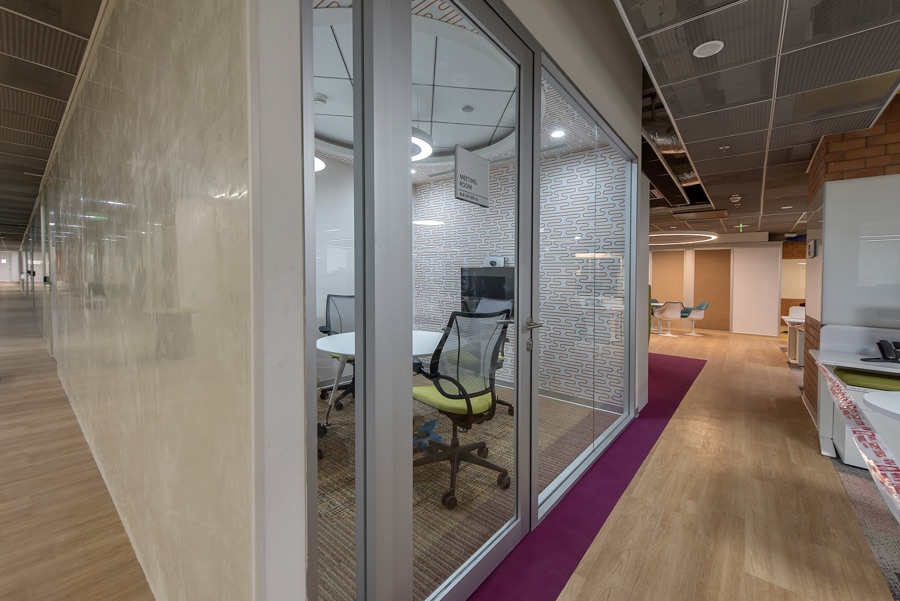

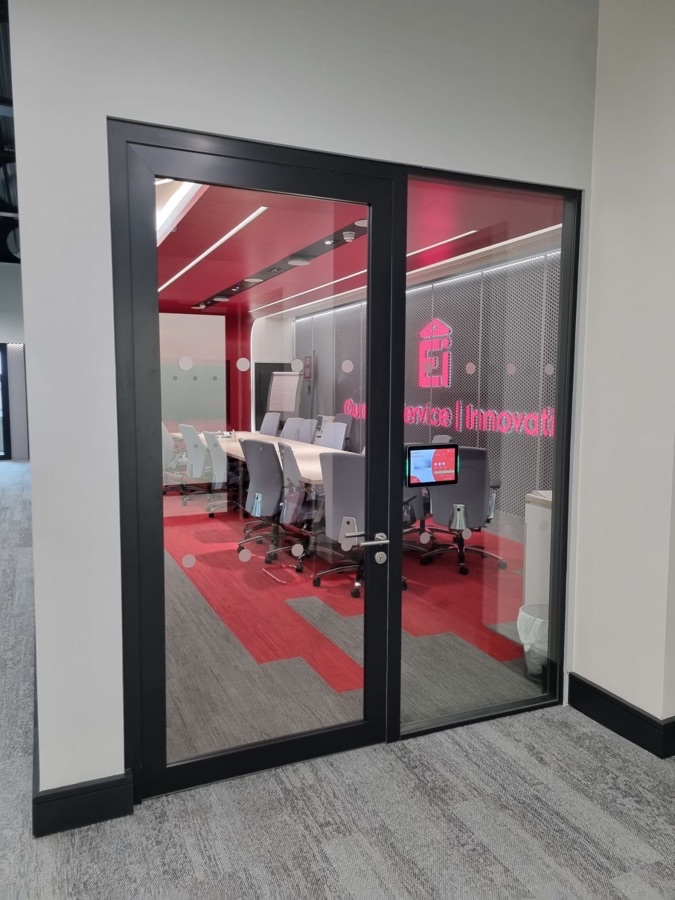

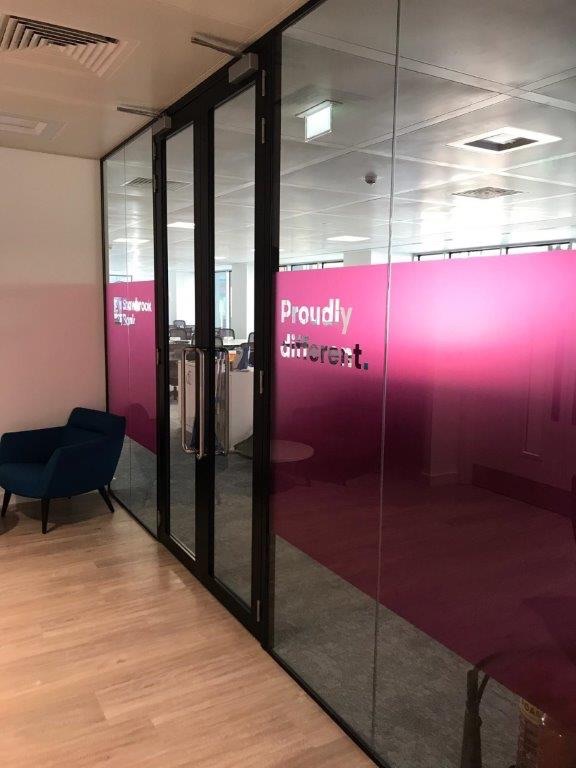

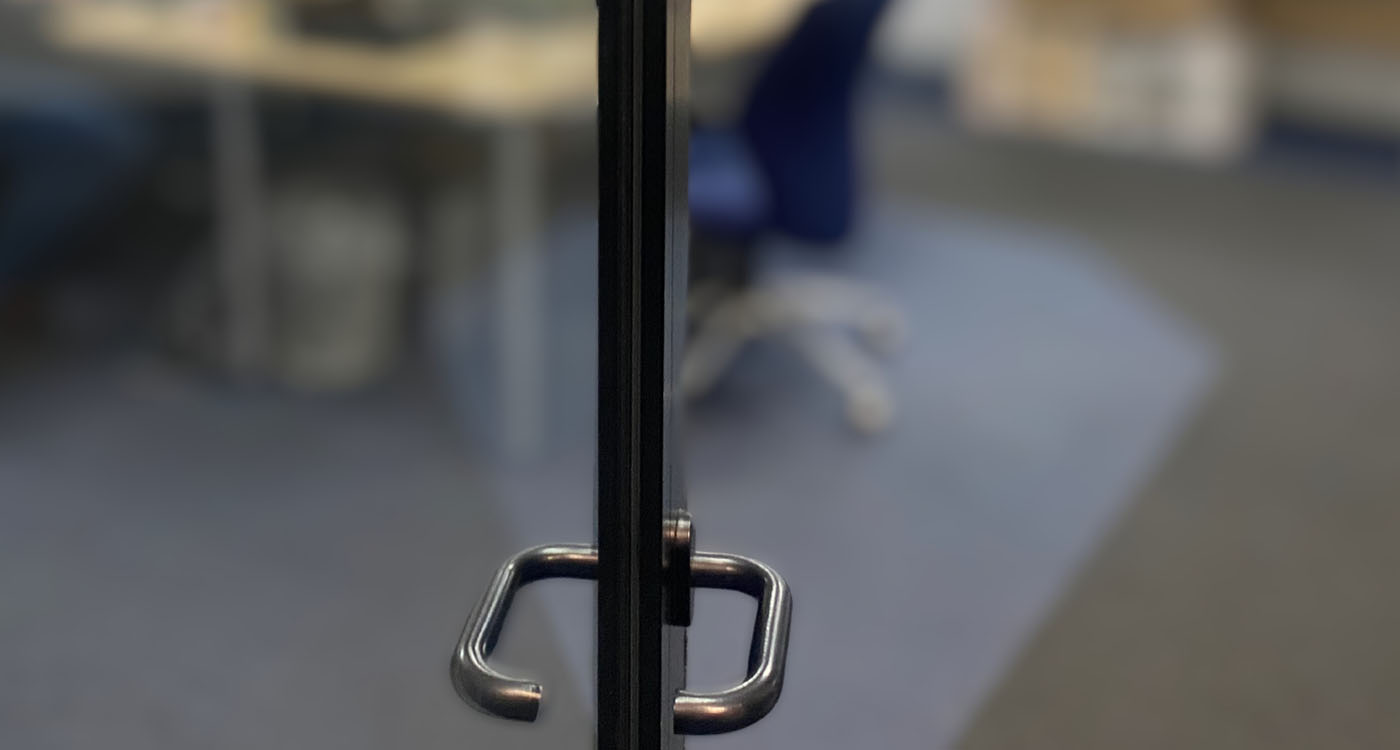

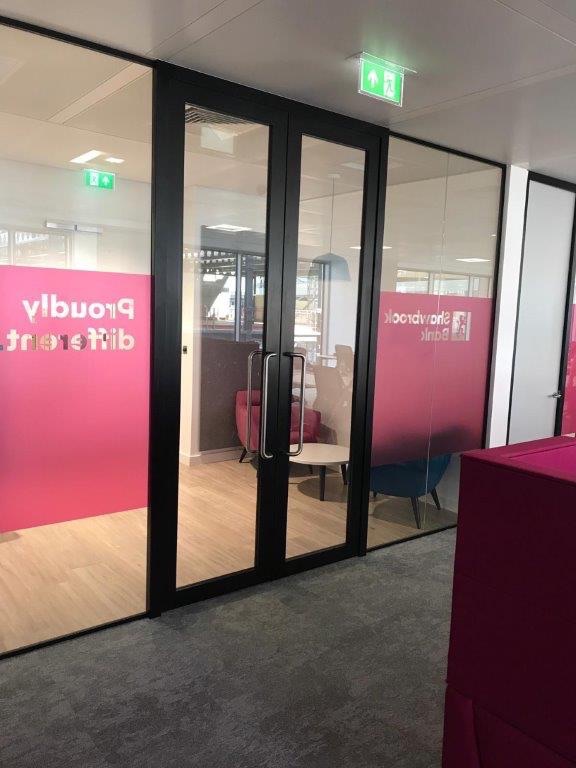

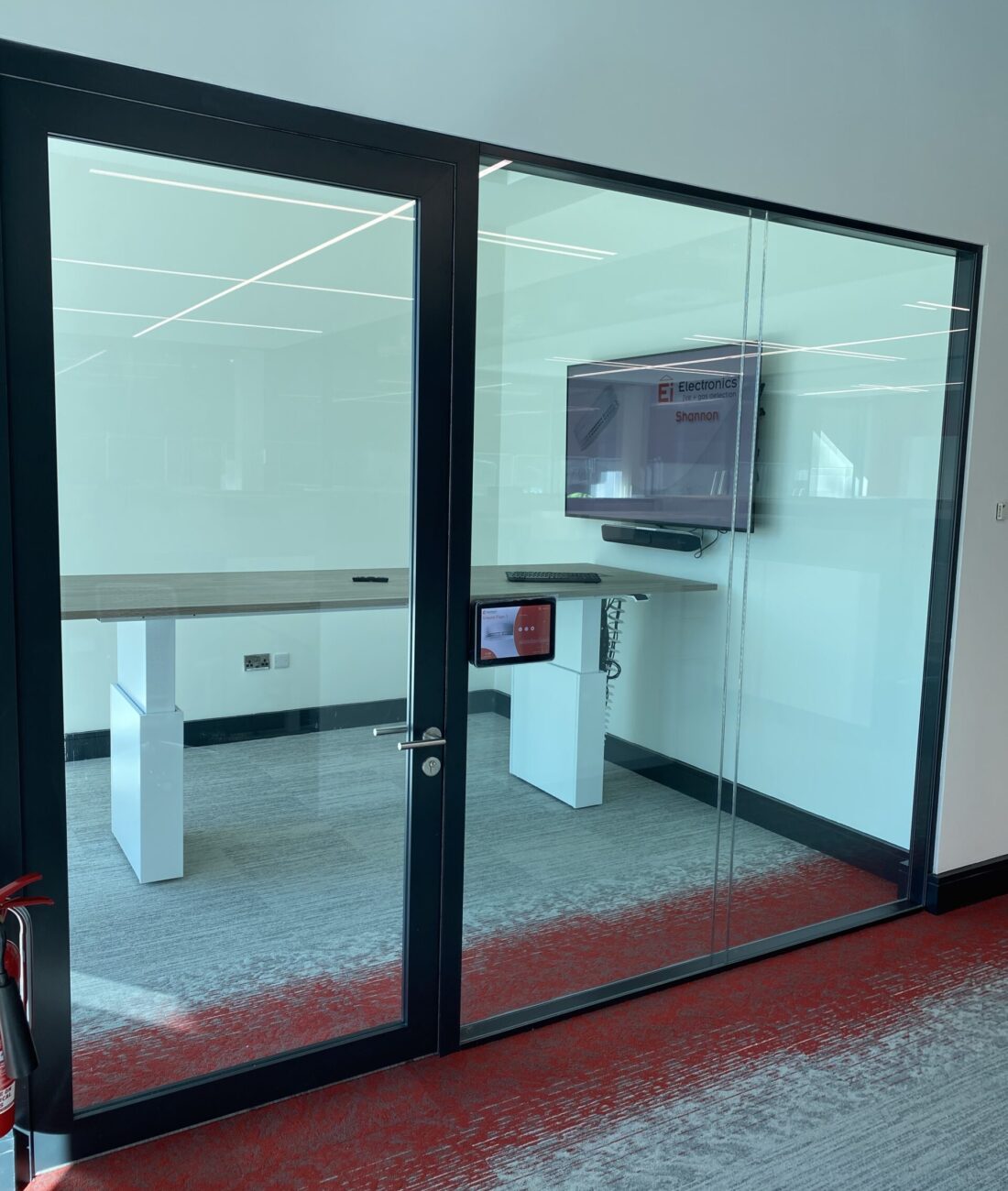

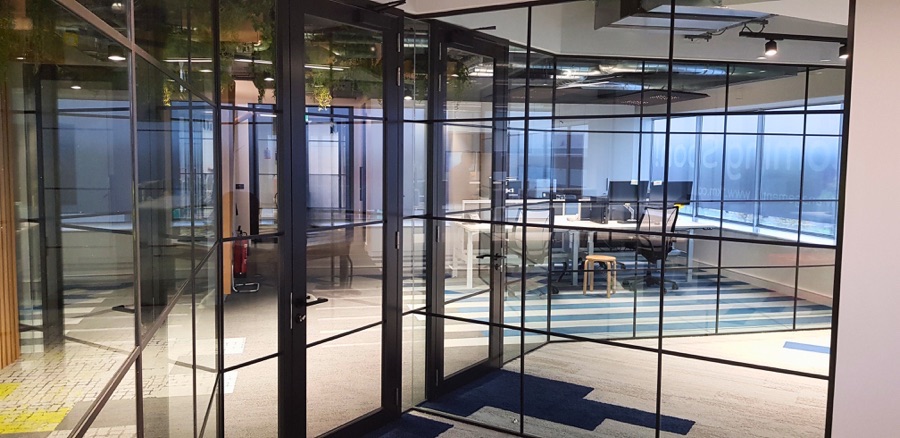

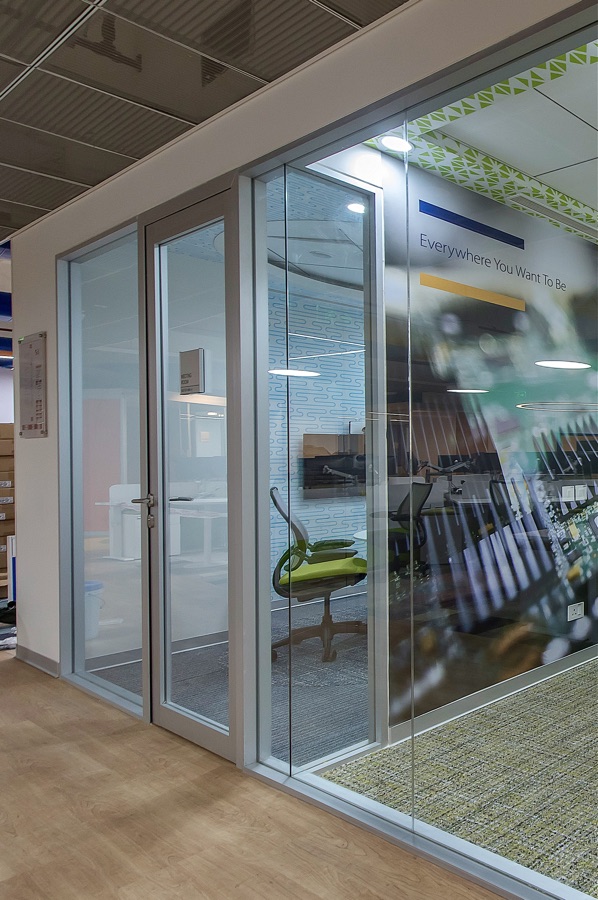

MK1 Gallery
