GDS
Bonded double glazed acoustic door
GDS – Bonded double glazed acoustic door
GDS Door Information
Experience the GDS double glazed flush acoustic door, offering a flawlessly smooth finish with the profile seamlessly bonded onto the glass. This not only creates an aesthetically pleasing flush look but also enhances acoustic capabilities, achieving a remarkable 41dB(Rw) resistance with two 6mm glass panes. The slim design of the double glazed profile ensures a premium aesthetic, seamlessly integrating the GDS door into any workspace for a balanced and subtle presence.
Compatible With:
- Blinds
- Manifestations
- Graphics
- Switch Glass
Paint Finishes:
- Polyester Powder Coat
- Satin Anodised Aluminium
- Special Anodised Finish
GDS – Bonded double glazed acoustic door Specification
Dimensions:
Height up to 3000mm
Thickness:
44mm
Fire Ratings:
N/A
Acoustics:
Up to 41dB (Rw)
Structure:
BS5234, BS6180, BS6399
Profiles:
40mm x 44mm Aluminium Profiles
Ironmongery:
A wide range of ironmongery
can be supplied
Glass Type:
Toughened
Glass Thickness:
6mm
Options:
Blinds
Manifestations
Graphics
Switch Glass
Finishes:
Polyester Powder Coat
Satin Anodised Aluminium
Special Anodised Finish
British Standards:
Sound Measurement BS EN ISO 140
Sound Rating BS EN ISO 717
Structural Stability BS5234, BS6180, BS6399

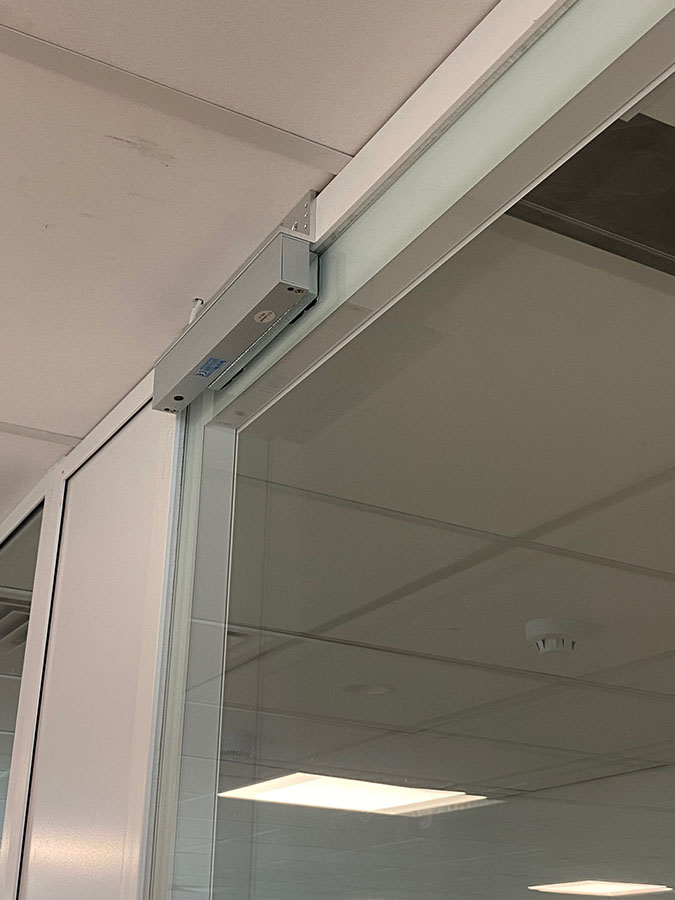

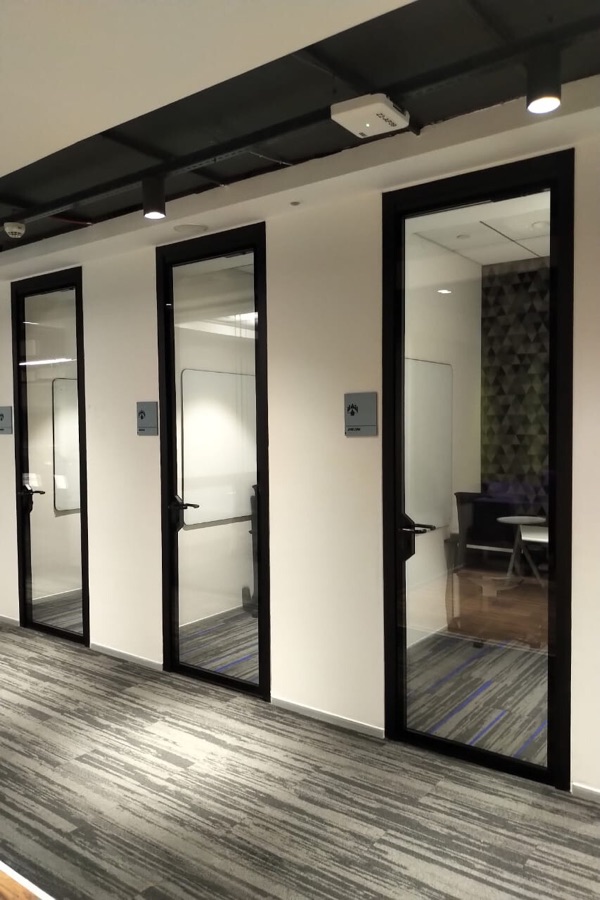

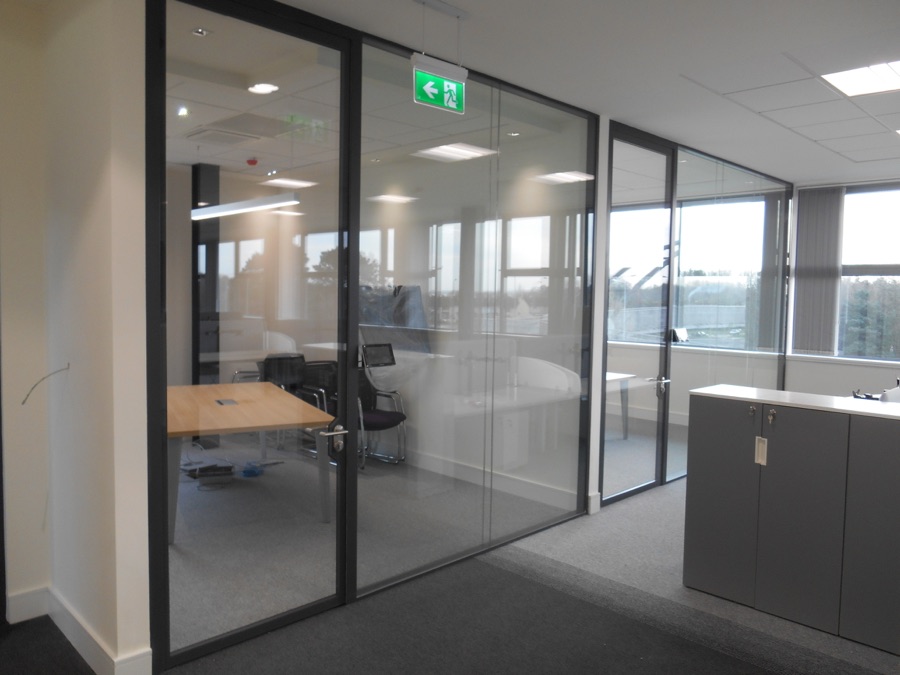

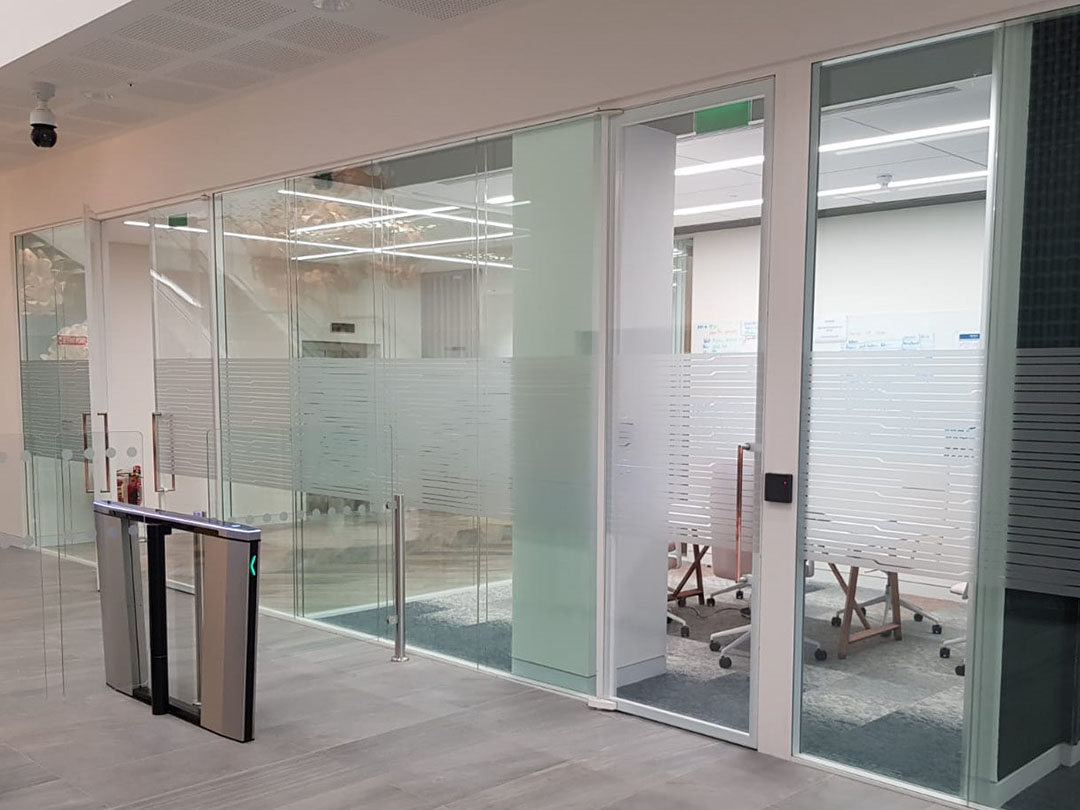

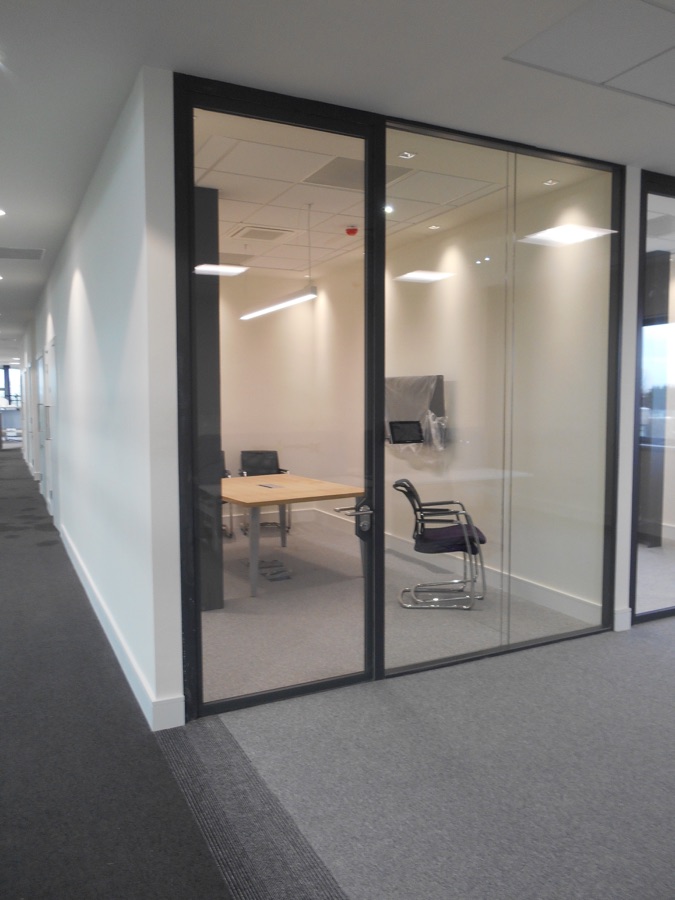

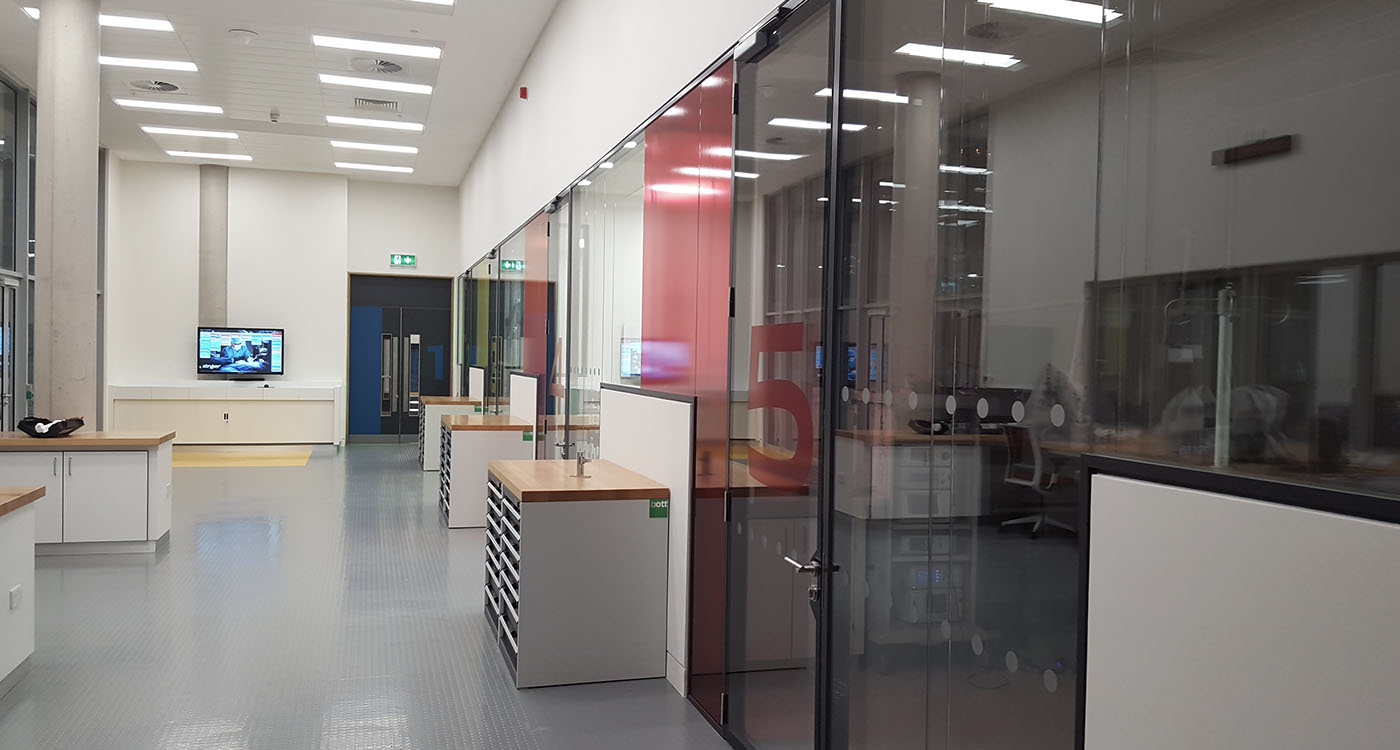

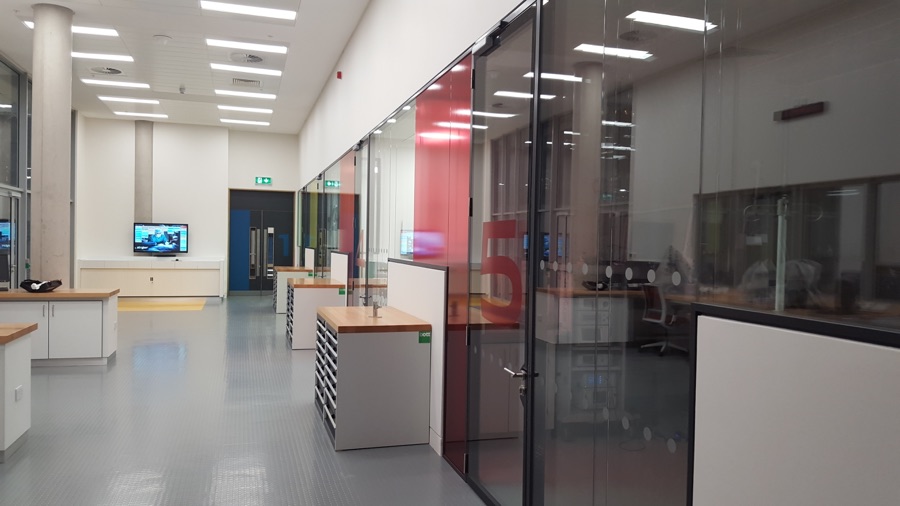

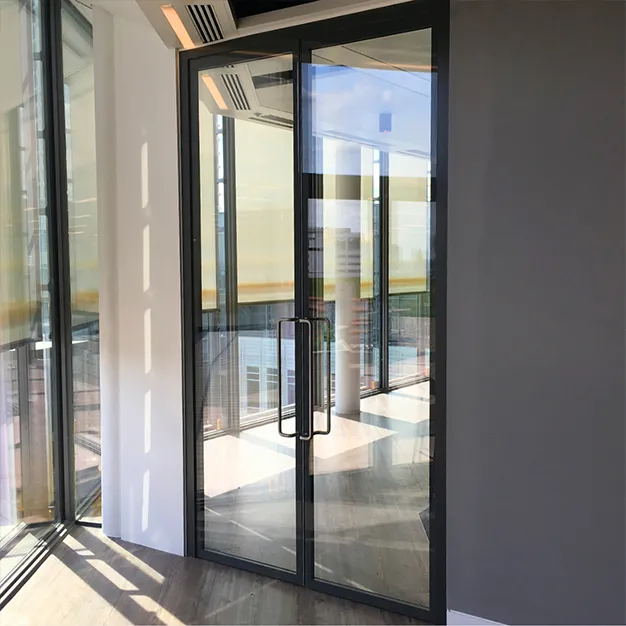

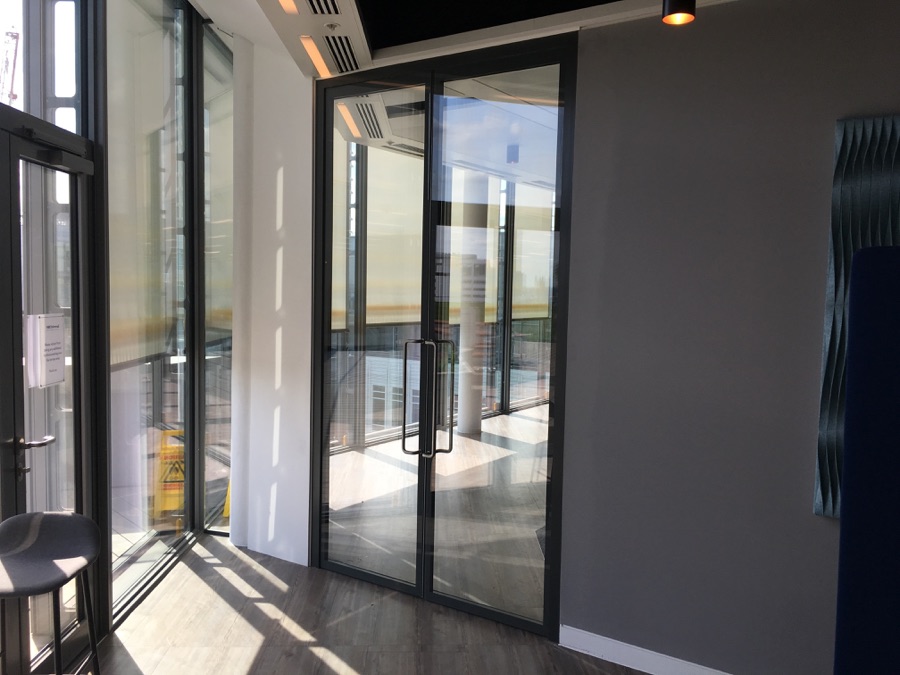

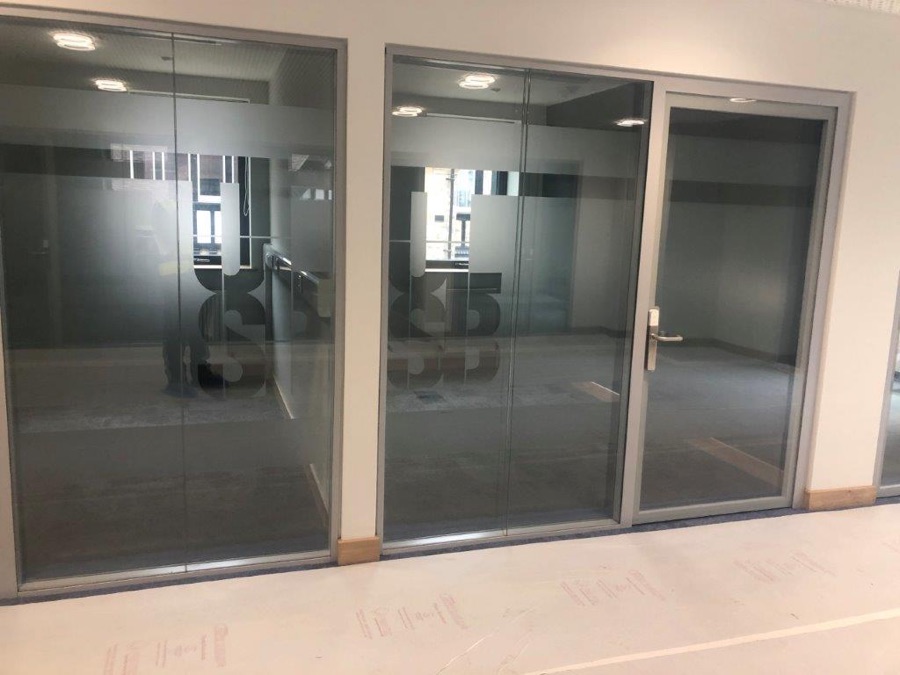

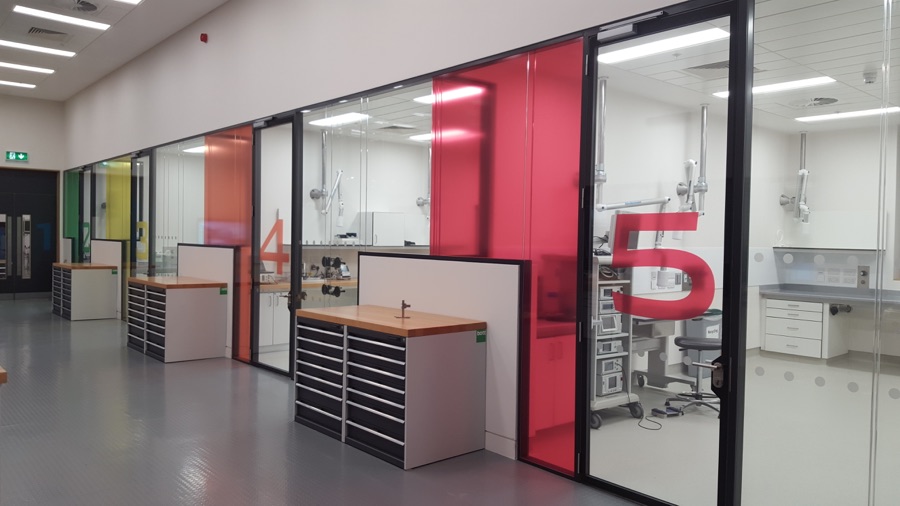

GDS Gallery
