Design Ceiling
AP 105
AP 105 Design Ceiling
AP105 Design Ceiling Information
AP 105 Design Ceiling systems offer versatility with a variety of metals and techniques. Apton collaborates with designers to craft custom overhead solutions, encompassing interior ceiling design and exterior canopy and soffit systems. Tailor your space with precision and style through our collaborative design approach.
AP105 – Design Ceiling Specification
Tile Materials:
Galvanised steel or aluminium
Standard Modules:
Different baffle panel size (W-H)
and gap alternatives are
possible for production
Grid System:
Special lock system of carrier profile
provides easy, secure and quick mounting
Coating:
Powder coated finish
Humidity:
Galvanised 90% RH
Aluminium 100% RH
Light Reflection:
Plain Panel 86%
Perforated Panel 72%
(RAL 9010)
Acoustic:
SAC aw: up to 1.00
Fire Performance:
Fire Class: A1 (EN 13501-1)
Acoustic Inlay:
Black non-woven acoustic fleece
as standard
(other options available on request)
Perimeter Solution:
Standard perimeter trim in steel and
aluminium available
Shape:
Tiles are available with out-turned
flanges laid onto the exposed grid
system
Perforation:
D. 1.5mm / D. 1.8mm / D. 2.5mm

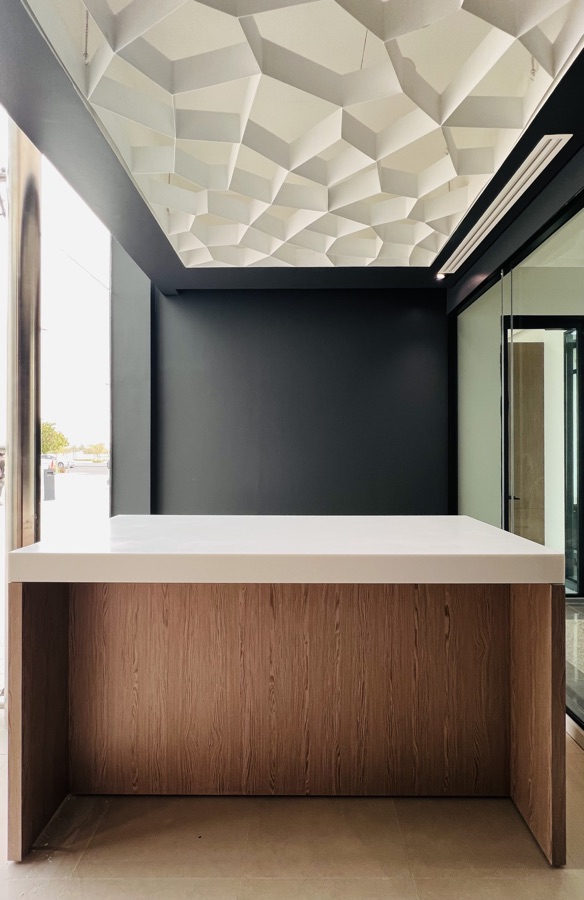

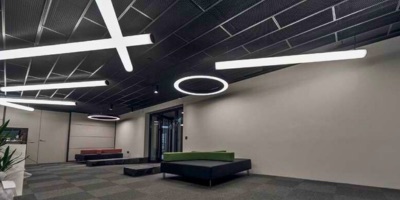

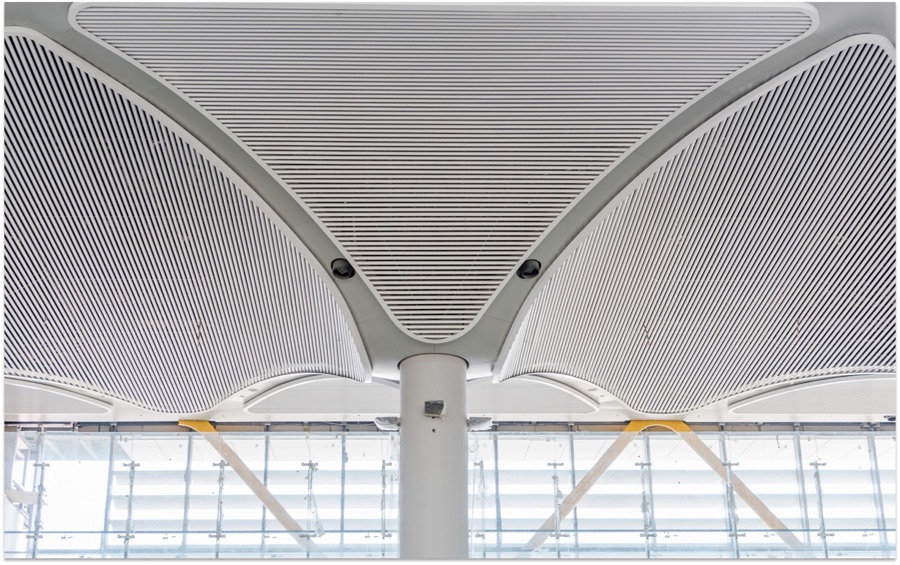

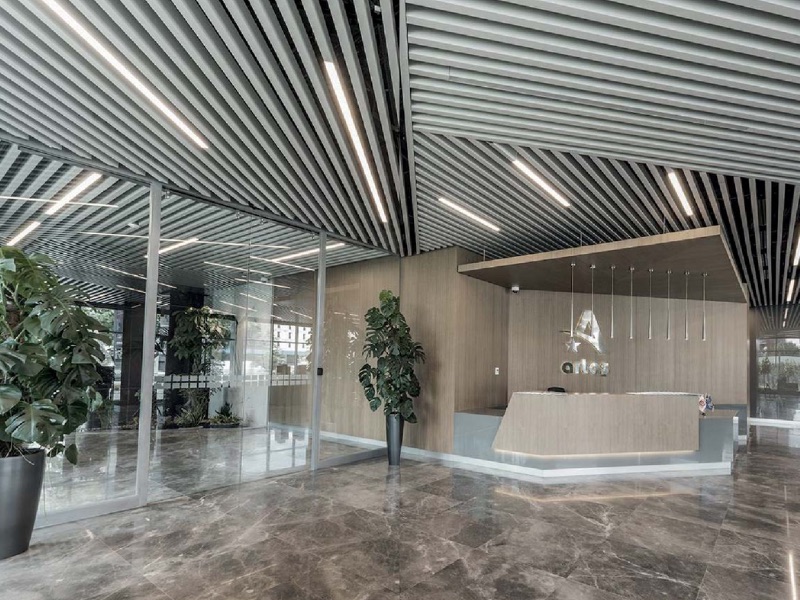

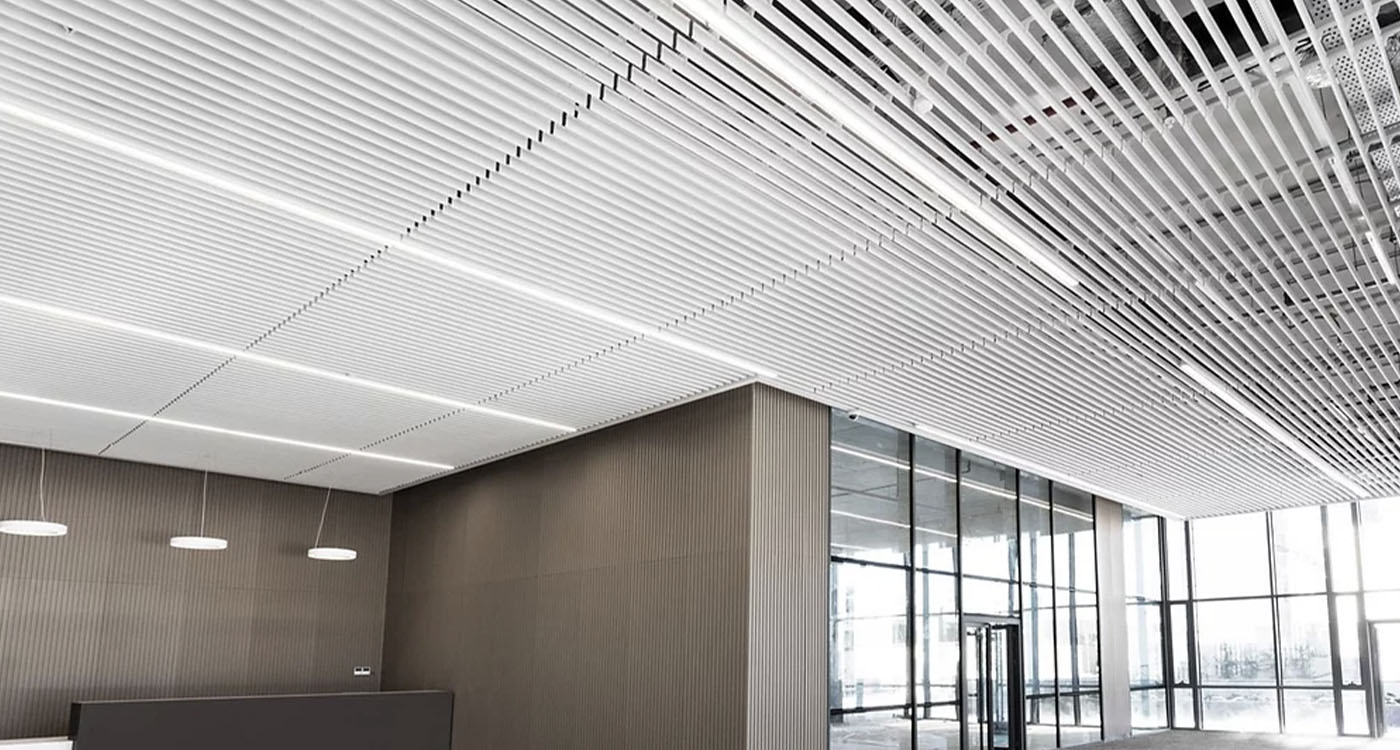

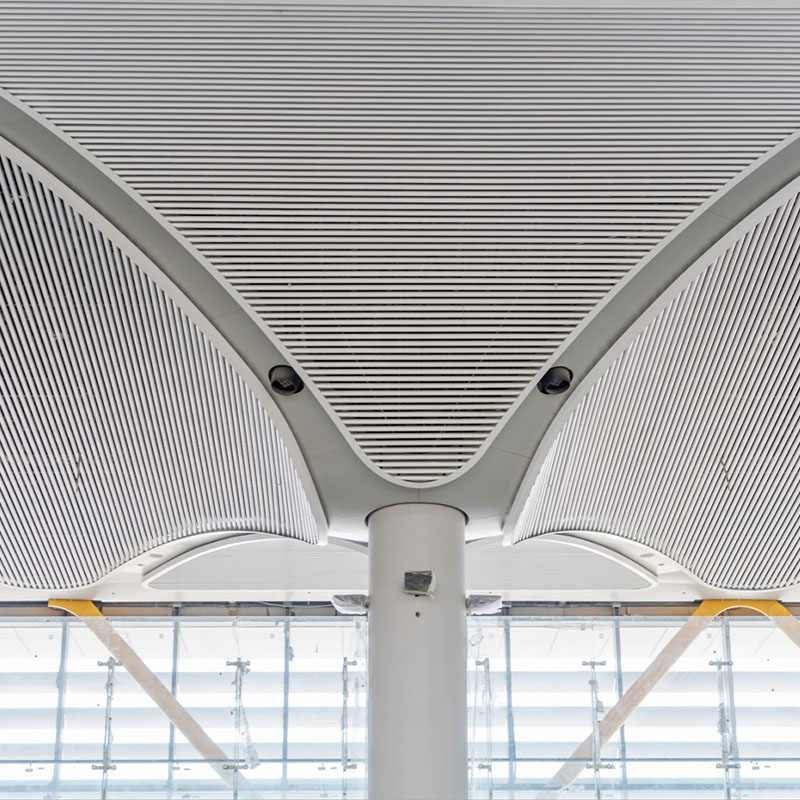

AP105 Gallery
