Linear Strip Ceiling
AP 103
AP 103 Linear Strip Ceiling
AP103 Linear Strip Information
AP 103 Linear Strip Ceiling adds decorative style and modernity with square-edge strips. The closed and open panel strips offer flexibility in design, allowing you to choose the desired channel appearance based on your decoration needs. Installation is made easy with sets of clips, hanging wires, and metal ceiling strips.
AP103 – Linear Strip Ceiling Specification
Tile Materials:
Galvanised steel sheet (Aluminium or
other materials on request)
Standard Modules:
50mm
100mm
200mm
300mm
Grid System:
AP103 Carrier System
Coating:
Powder coated finish
Humidity:
Galvanised 90% RH
Aluminium 100% RH
Light Reflection:
Plain Panel 86%
Perforated Panel 72%
(RAL 9010, 20 Gloss)
Acoustic:
SAC aw: up to 1.00
SRI Rw: up to 53.8dB
Fire Performance:
Fire Class: A1 (EN 13501-1)
Acoustic Inlay:
Black non-woven acoustic fleece
as standard
(other options available on request)
Perimeter Solution:
Standard perimeter trim in steel and
aluminium available
Perforation:
D. 1.5mm / D. 1.8mm / D. 2.5mm

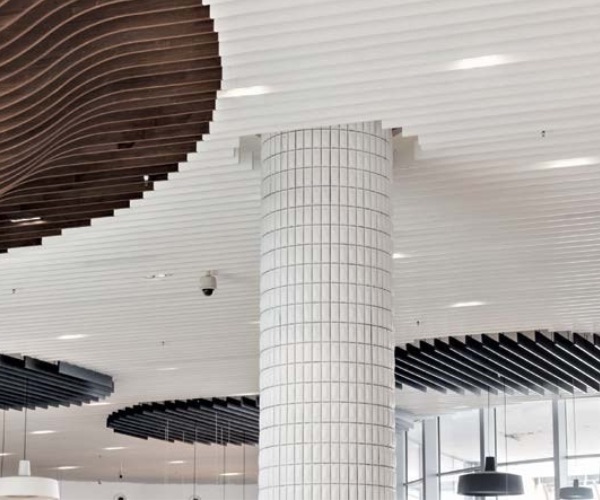

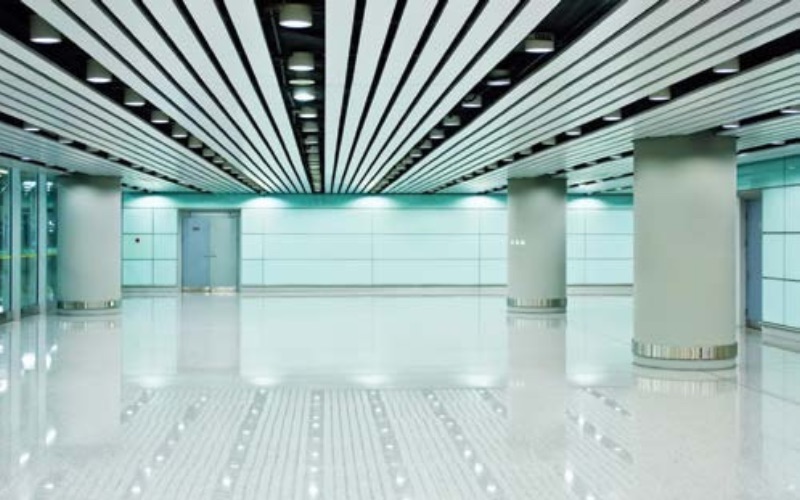

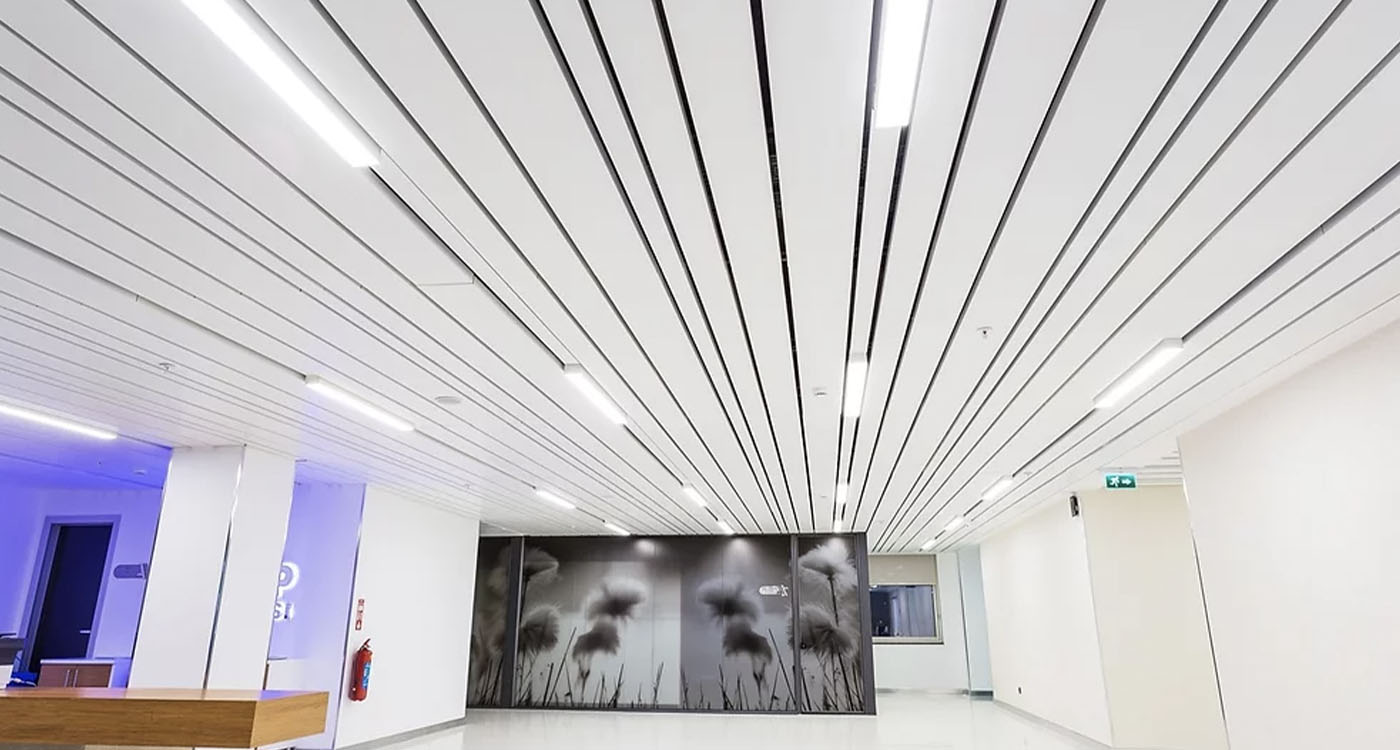

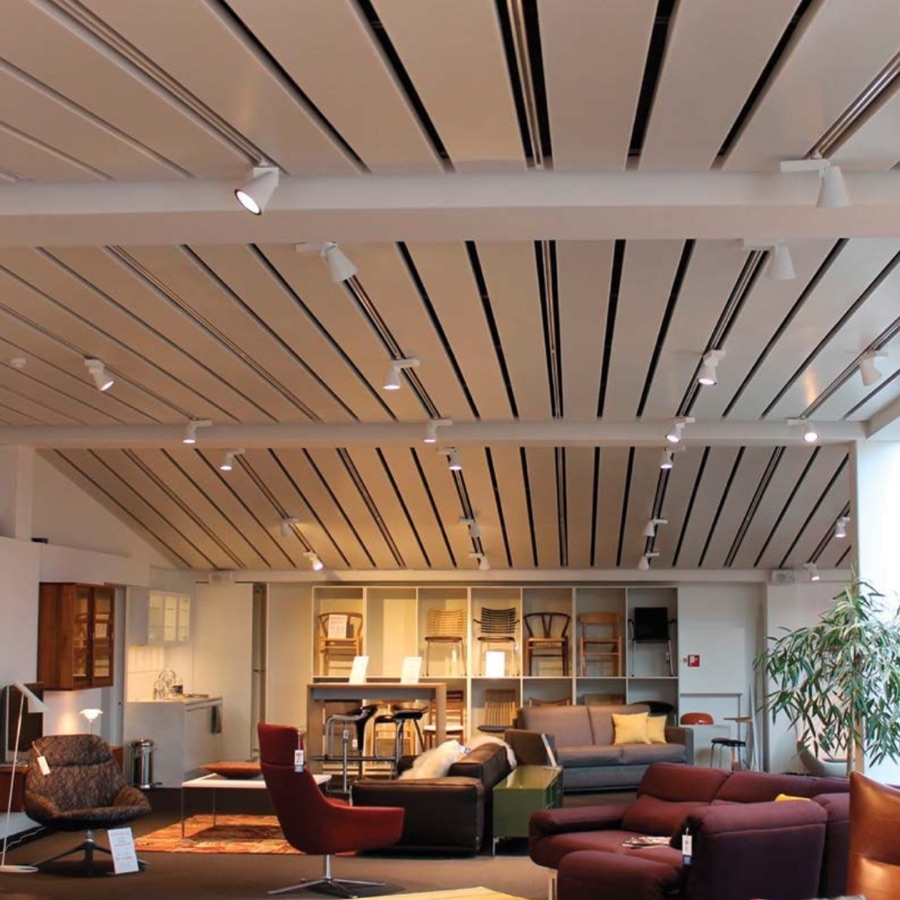

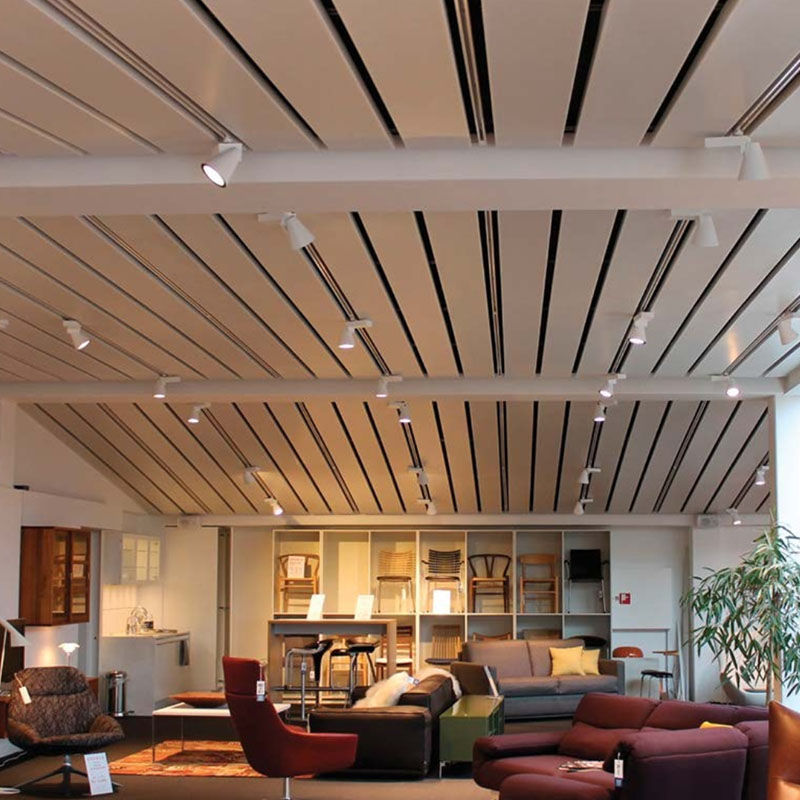

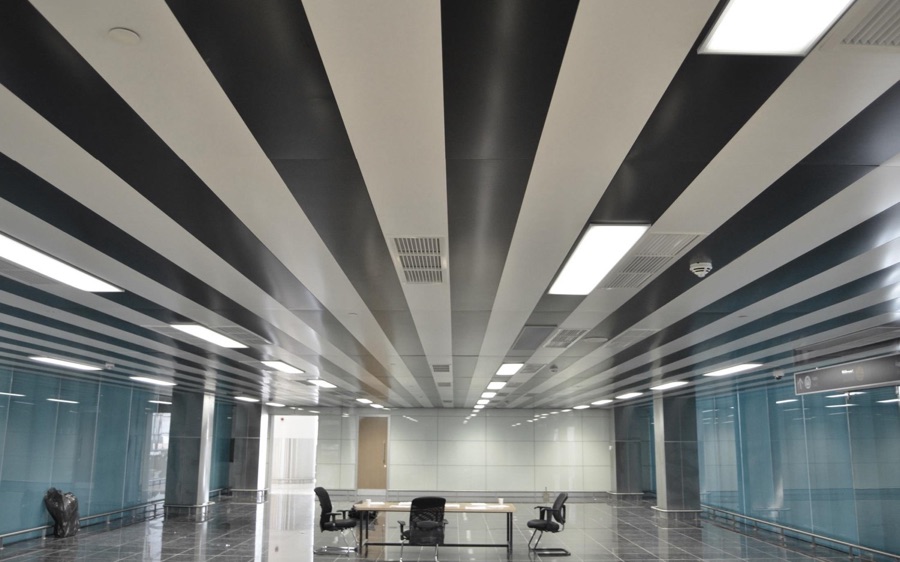

AP103 Gallery
