Clip In Ceiling
AP 102
AP 102 Clip In Ceiling
AP102 Clip In Ceiling Information
Apton’s AP 102 Clip in Ceiling features tiles manufactured to fine press tool tolerances that are effortlessly clipped into a concealed grid system. Automatic levelling is achieved through unique twin pip arrangements pressed into the flanges during manufacturing, ensuring a streamlined appearance.
AP102 – Clip In Ceiling Specification
Tile Materials:
Galvanised steel sheet (Aluminium or
other materials on request)
Standard Modules:
600mm x 600mm
600mm x 1200mm
1200mm x 1200mm
Grid System:
AP102 Clip-In Grid System
Coating:
Powder coated finish
Humidity:
Galvanised 90% RH
Aluminium 100% RH
Light Reflection:
Plain Panel 86%
Perforated Panel 72%
(RAL 9010, 20 Gloss)
Acoustic:
SAC aw: up to 1.00
SRI Rw: up to 53.8dB
Fire Performance:
Fire Class: A1 (EN 13501-1)
Acoustic Inlay:
Black non-woven acoustic fleece
as standard
(other options available on request)
Perimeter Solution:
Standard perimeter trim in steel and
aluminium available
Shape:
Tiles are available with a square
edge, incorporating a hinging tab and
pip locating details
Perforation:
D. 1.5mm / D. 1.8mm / D. 2.5mm

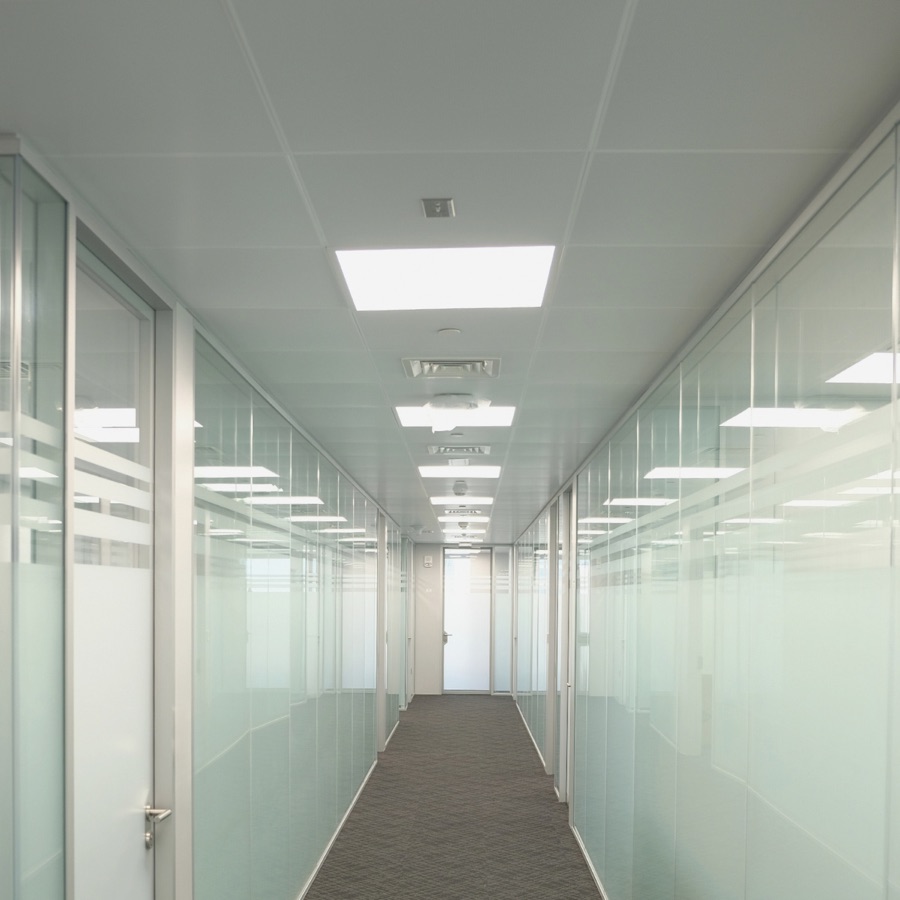

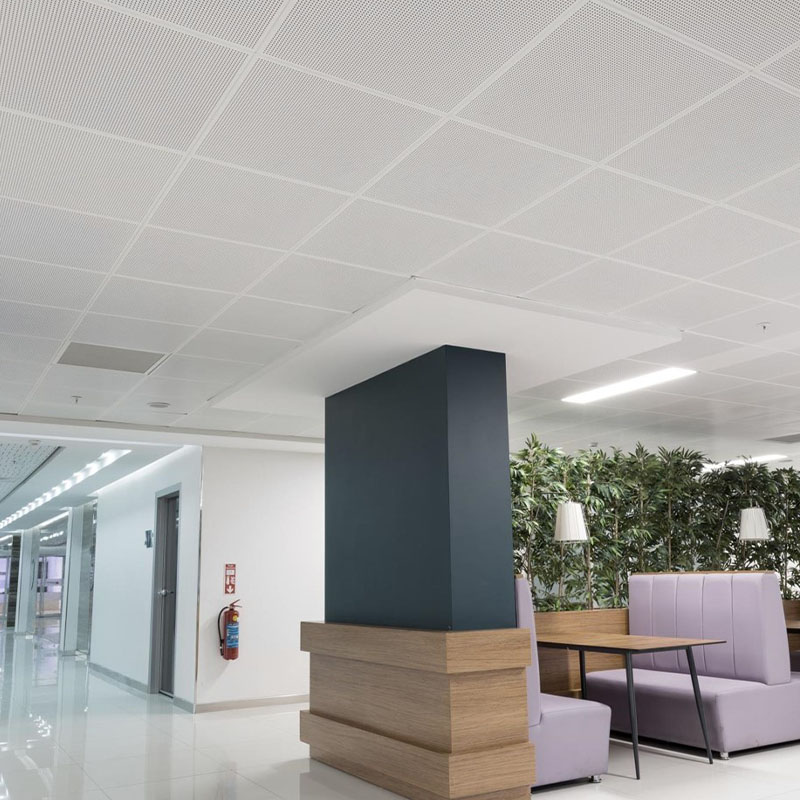

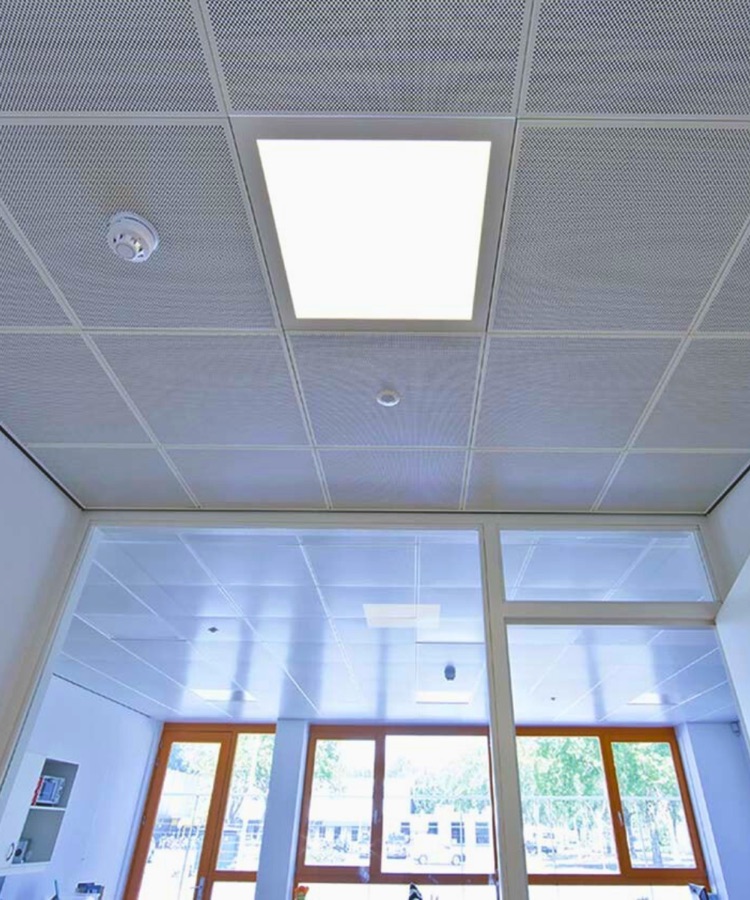

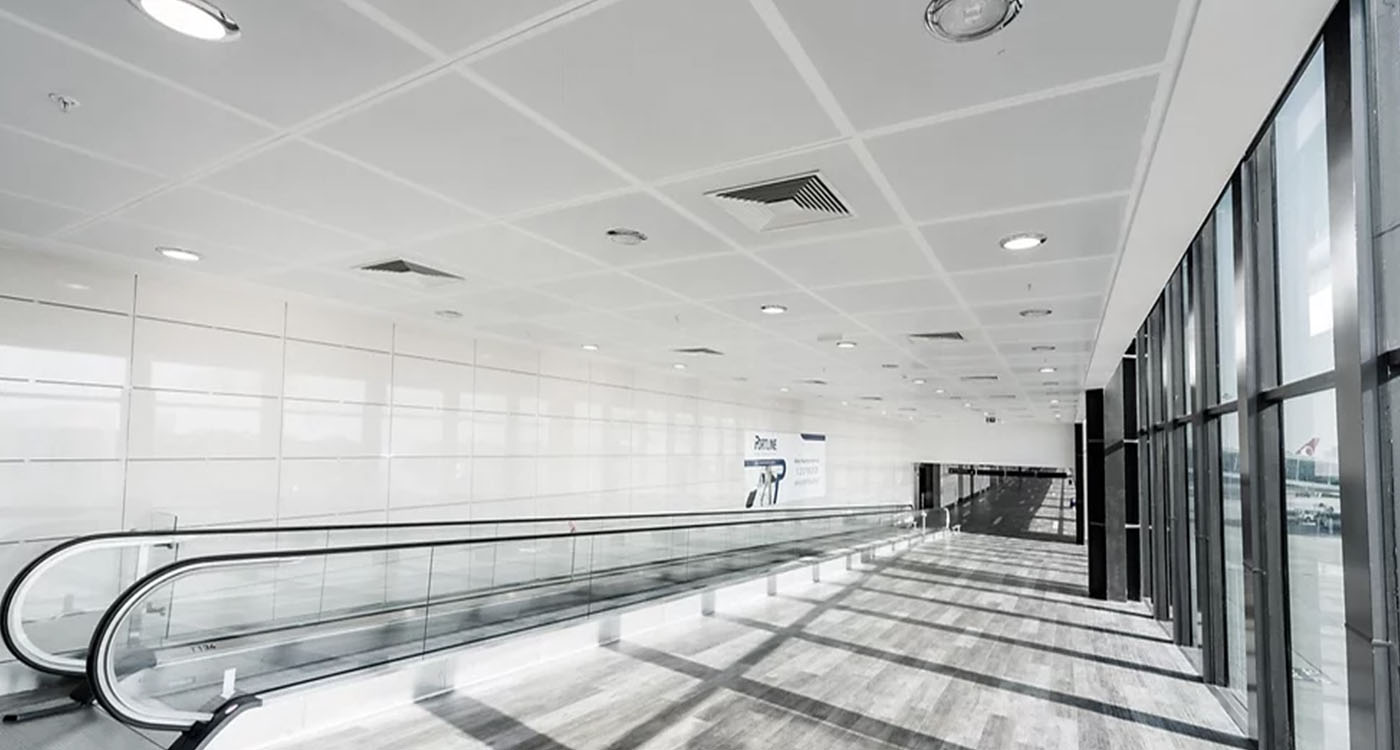

AP102 Gallery
