Lay In Ceiling
AP 101
AP 101 Lay In Ceiling
AP101 Lay In Ceiling Information
Our AP 101 Lay in Ceiling Tiles are expertly crafted for easy installation in a conventional T grid system. This 100% accessible modular ceiling system features flat and recessed lay-in and lay-on tiles, perfect for areas needing regular maintenance. The adaptable AP 101 Lay in ceiling panels suit different exposed grid systems, including T24 and T15mm.
AP101 – Lay In Ceiling Specification
Tile Materials:
Galvanised steel sheet (Aluminium or
other materials on request)
Standard Modules:
600mm x 600mm
600mm x 1200mm
1200mm x 1200mm
Grid System:
AP101 T24mm, AP101 T15mm
Grid System
Coating:
Powder coated finish
Humidity:
Galvanised 90% RH
Aluminium 100% RH
Light Reflection:
Plain Panel 86%
Perforated Panel 72%
(RAL 9010)
Acoustic:
SAC aw: up to 1.00
SRI Rw: up to 53.8dB
Fire Performance:
Fire Class: A1 (EN 13501-1)
Acoustic Inlay:
Black non-woven acoustic fleece
as standard
(other options available on request)
Perimeter Solution:
Standard perimeter trim in steel and
aluminium available
Shape:
Tiles are square with out-turned
flanges laid onto the exposed grid system.
Perforation:
D. 1.5mm / D. 1.8mm / D. 2.5mm

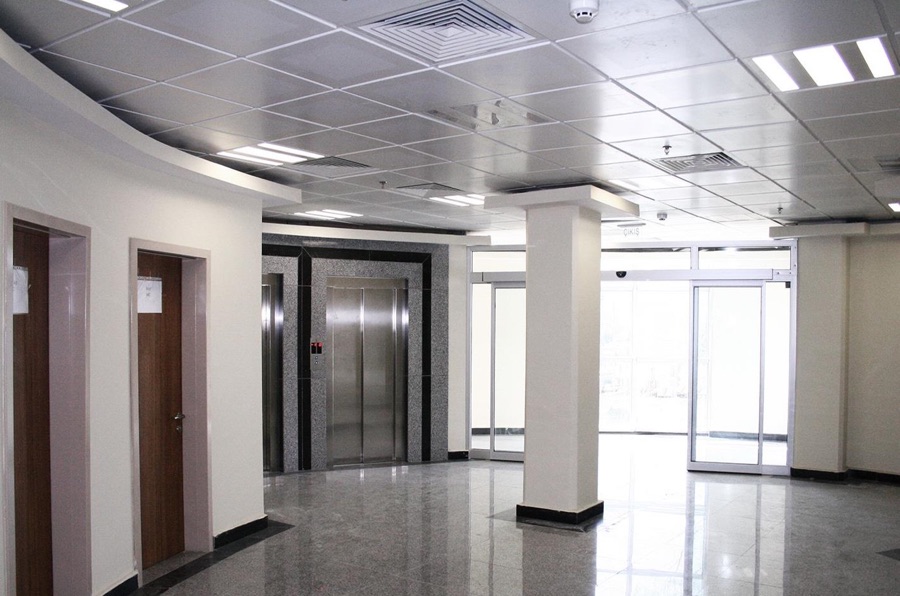

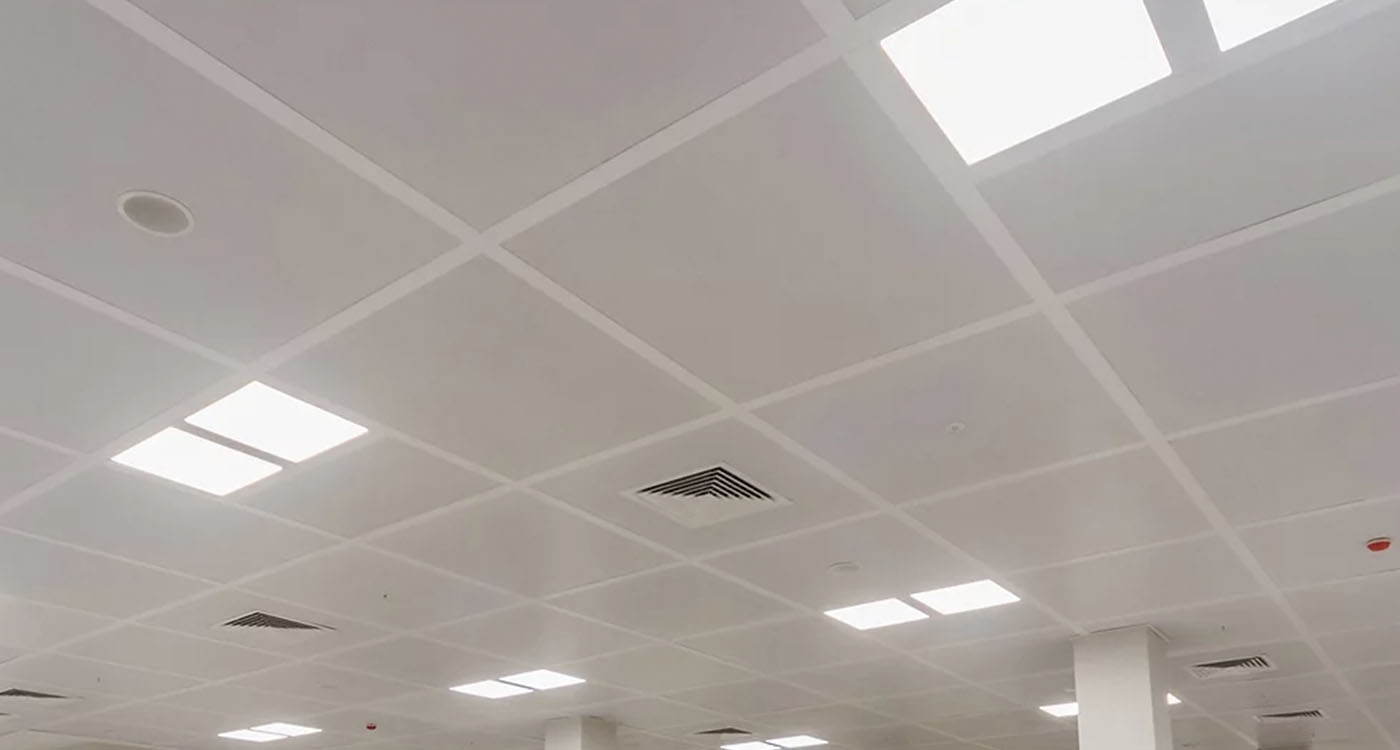

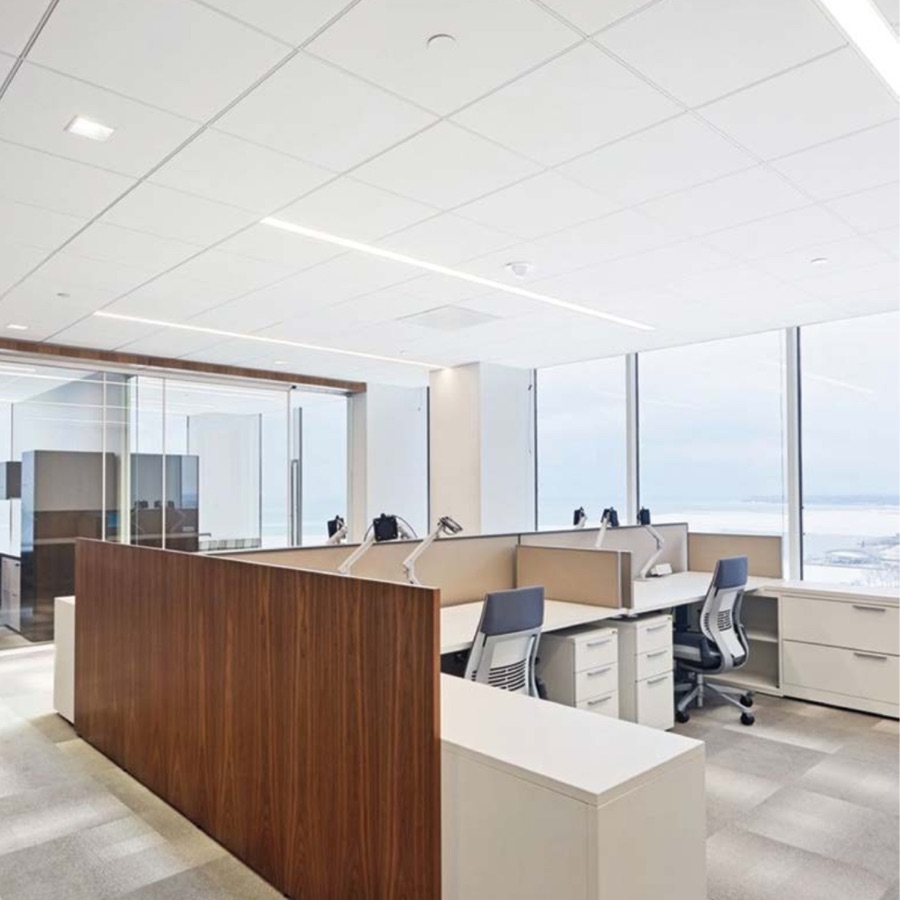

AP101 Gallery
